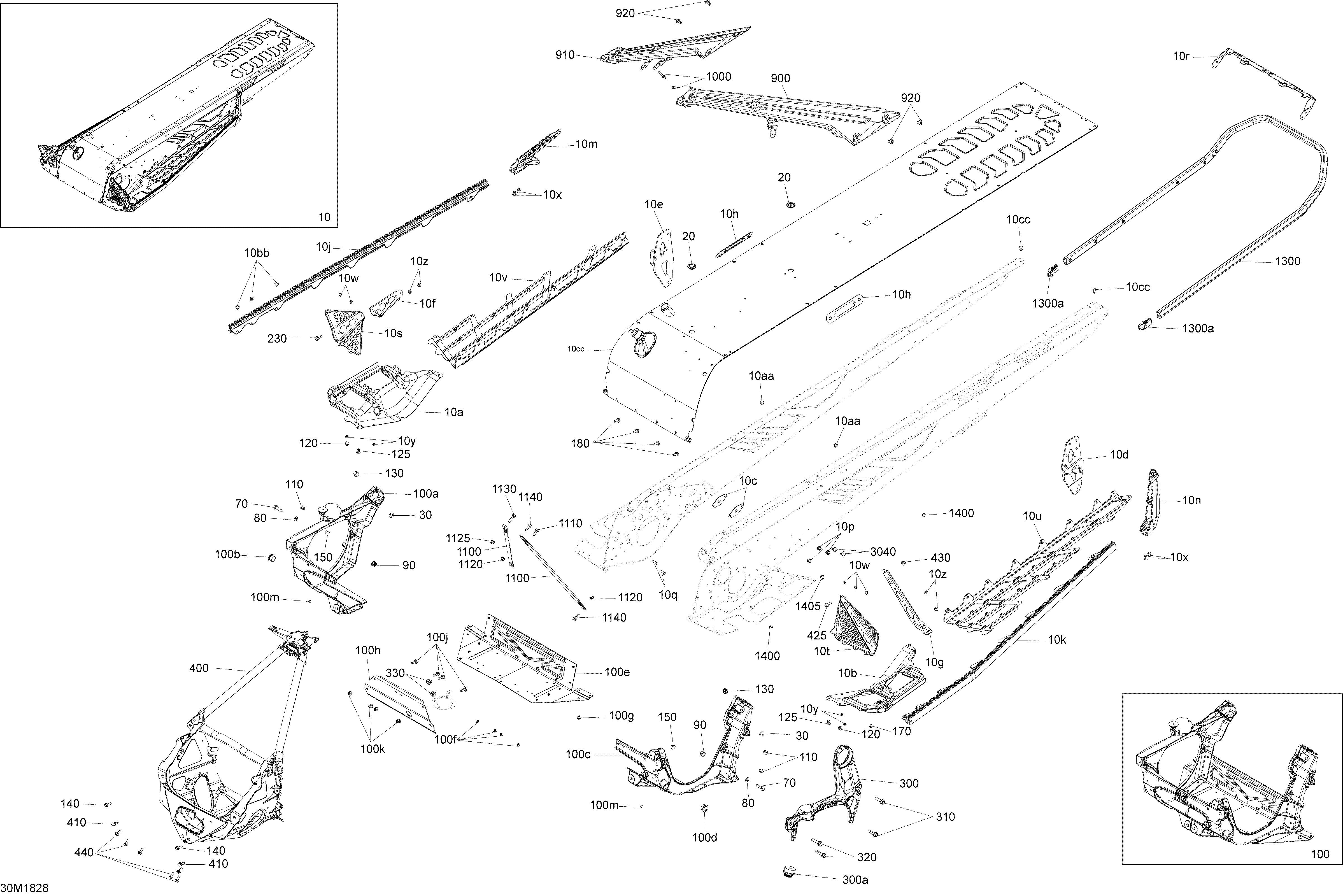

09- Frame Summit - 850 E-TEC - Package X Lenght 175 для BRP Ski-Doo 3- SUMMIT 850 E-TEC - 2018
-
№АртикулНазвание
-
10>10cc415130186 Black Tunnel Module 175Black Tunnel Module 175
-
10>10cc415130187 Blue Tunnel Module 175Blue Tunnel Module 175
-
10a518328684 RH Footrest ReinforcementRH Footrest Reinforcement
-
10b518328682 LH Footrest ReinforcementLH Footrest Reinforcement
-
10c518326647 Reinforcement PlateReinforcement Plate
-
10d518328828 RH Suspension Bracket RearRH Suspension Bracket Rear
-
10e518328830 LH Suspension Bracket RearLH Suspension Bracket Rear
-
10f518329048 RH Reinforcement FootrestRH Reinforcement Footrest
-
10g518329049 LH Footrest ReinforcementLH Footrest Reinforcement
-
10j518328737 RH RollerRH Roller
-
10k518328738 LH RollerLH Roller
-
10m518329124 Black, RH Roller Link. Deep Black ModelsBlack, RH Roller Link. Deep Black Models
-
10m518330002 Roller Link Blue RH. Gulfstream Blue ModelsRoller Link Blue RH. Gulfstream Blue Models
-
10n518329123 Black - LH Roller Link. Deep Black ModelsBlack - LH Roller Link. Deep Black Models
-
10n518330003 Roller Link Blue LH. Gulfstream Blue ModelsRoller Link Blue LH. Gulfstream Blue Models
-
10p293450232 Insert M6 X 1.0Insert M6 X 1.0
-
10q250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10r518328990 Rear CapRear Cap
-
10s518328460 RH FootrestRH Footrest
-
10t518328463 LH FootrestLH Footrest
-
10u518328471 LH FootrestLH Footrest
-
10v518328473 RH FootrestRH Footrest
-
10w293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
10x293150183 RivetRivet
-
10y293150144 Stavex RivetStavex Rivet
-
10z293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10aa293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10bb293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10cc293150147 Hemlock RivetHemlock Rivet
-
10518330135 Assembly Radiator 175Assembly Radiator 175
-
20293730052 Black, PlugBlack, Plug
-
30506151252 WasherWasher
-
70250000942 Hex Screw M8 X 30Hex Screw M8 X 30
-
80234081410 Flat Washer 8 mmFlat Washer 8 mm
-
90233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
100518329959 Riveted Module E. Includes 100 to 100mRiveted Module E. Includes 100 to 100m
-
100a518329999 RH Member Ass'y. Includes 100a to 100bRH Member Ass'y. Includes 100a to 100b
-
100b505073317 Leg CushionLeg Cushion
-
100c518329960 LH Member Ass'y. Includes 100c to 100dLH Member Ass'y. Includes 100c to 100d
-
100d505073317 Leg CushionLeg Cushion
-
100e518329844 Bottom PlateBottom Plate
-
100f293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
100g293450268 Insert M5 X 0.8Insert M5 X 0.8
-
100h518330100 Front MemberFront Member
-
100j207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100k233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
100m293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
110293150147 Hemlock RivetHemlock Rivet
-
120293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
125293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
130233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
150233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
170293450268 Insert M5 X 0.8Insert M5 X 0.8
-
180207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
230207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
300518328693 Brace Ass'y. Includes 300 to 300aBrace Ass'y. Includes 300 to 300a
-
300a512060295 Rubber MountRubber Mount
-
310250001048 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
320207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
330233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
400518329966 S ModuleS Module
-
410250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
425207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
430233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
440207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
900518329077 Black, LH MemberBlack, LH Member
-
910518329078 Black - RH MemberBlack - RH Member
-
920250000887 Pan Head Torx Screw M8 X 12Pan Head Torx Screw M8 X 12
-
1000250300629 Stud M5 X 20Stud M5 X 20
-
1100518329974 Upper Colomn SupportUpper Colomn Support
-
1110207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
1120233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1125233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1130207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1300518328834 Rear Bumper 175. Includes 1300 to 1300aRear Bumper 175. Includes 1300 to 1300a
-
1300a520001612 CapCap
-
1400293730047 Black Dart 8 mmBlack Dart 8 mm
-
1405293730060 Black Dart 10 mmBlack Dart 10 mm
-
3040293730079 DartDart
