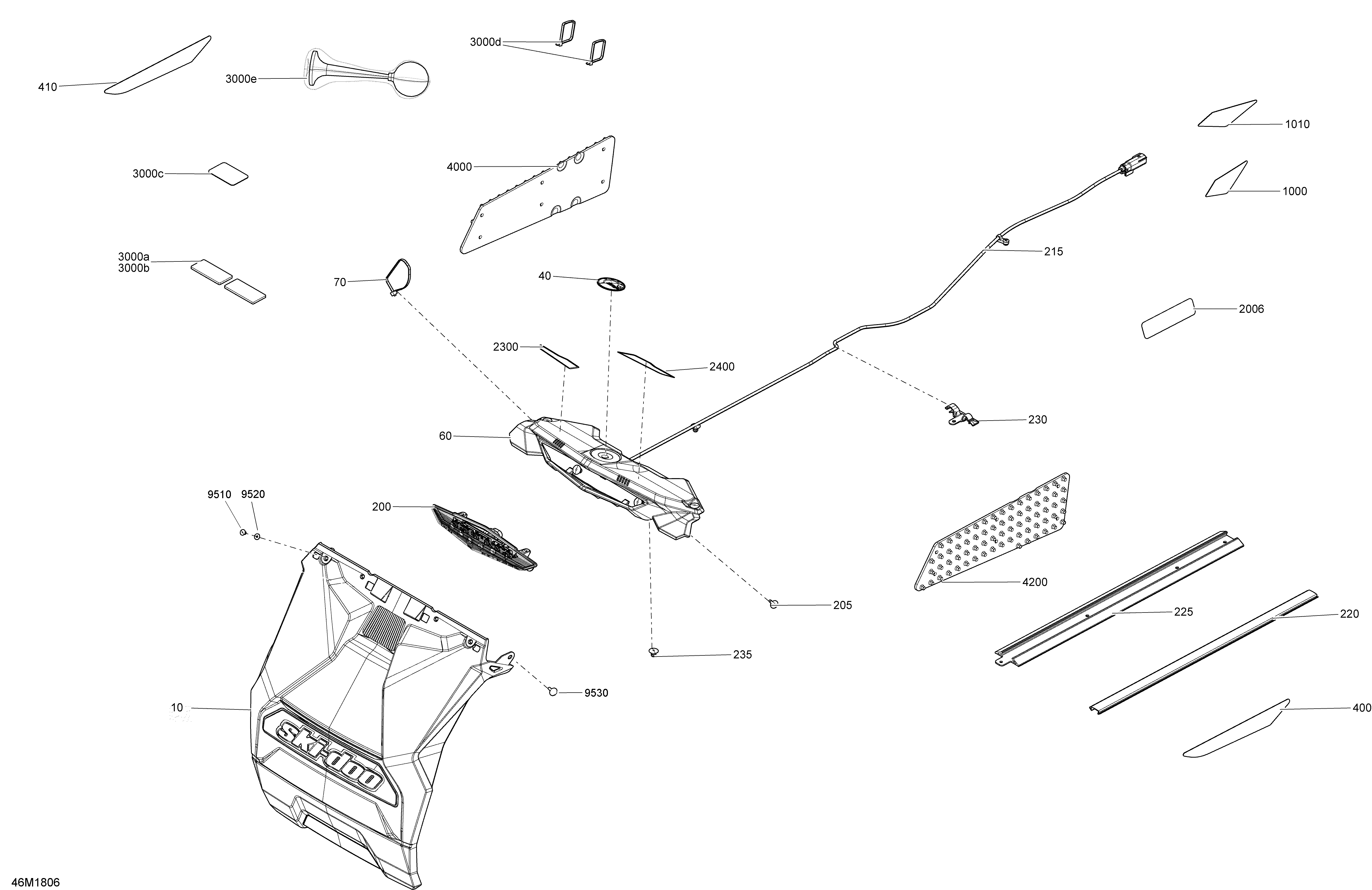

09- Utilities Summit - 850 E-TEC для BRP Ski-Doo 3- SUMMIT 850 E-TEC - 2018
-
№АртикулНазвание
-
10520001481 Snow GardSnow Gard
-
40516008738 Emblem Logo BrpEmblem Logo Brp
-
60520001487 Light FairingLight Fairing
-
70293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
200520001143 Rear LightRear Light
-
205250000725 Screw M4 X 16Screw M4 X 16
-
215515178266 Rear Light Harness. Model 146 LenghtRear Light Harness. Model 146 Lenght
-
215515178267 Rear Light Harness. Model 154 LenghtRear Light Harness. Model 154 Lenght
-
215515178268 Rear Light Harness. Model 165 LenghtRear Light Harness. Model 165 Lenght
-
215515178269 Rear Light Harness. Model 175 LenghtRear Light Harness. Model 175 Lenght
-
218390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
220520001719 Radiator TrimRadiator Trim
-
225520001703 Wire ProtectorWire Protector
-
230520001722 CapCap
-
235293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
400520001491 Rear Reflector RH. North AmericaRear Reflector RH. North America
-
400520001698 Rear Reflector RH. EuropeRear Reflector RH. Europe
-
410520001492 Rear Reflector LH. North AmericaRear Reflector LH. North America
-
410520001699 Rear Reflector LH. EuropeRear Reflector LH. Europe
-
1000520001493 Front Reflector RHFront Reflector RH
-
1010520001494 Front Reflector LHFront Reflector LH
-
1400520001814 Tools Kit. Not Shown. Includes 1400 to 1400aTools Kit. Not Shown. Includes 1400 to 1400a
-
1400a529017500 Rope StarterRope Starter
-
2006516008823 Ce Decal.. EuropeCe Decal.. Europe
-
2300516008594 Safety LabelSafety Label
-
2400516006892 English Warning Decal RHEnglish Warning Decal RH
-
3000a520000271 Amber Reflector. EuropeAmber Reflector. Europe
-
3000b415037900 White Reflector. EuropeWhite Reflector. Europe
-
3000c520001787 Reflector Support. EuropeReflector Support. Europe
-
3000d549011291 Horn. EuropeHorn. Europe
-
3000e293150103 Black Pop Rivet 3/16''. EuropeBlack Pop Rivet 3/16''. Europe
