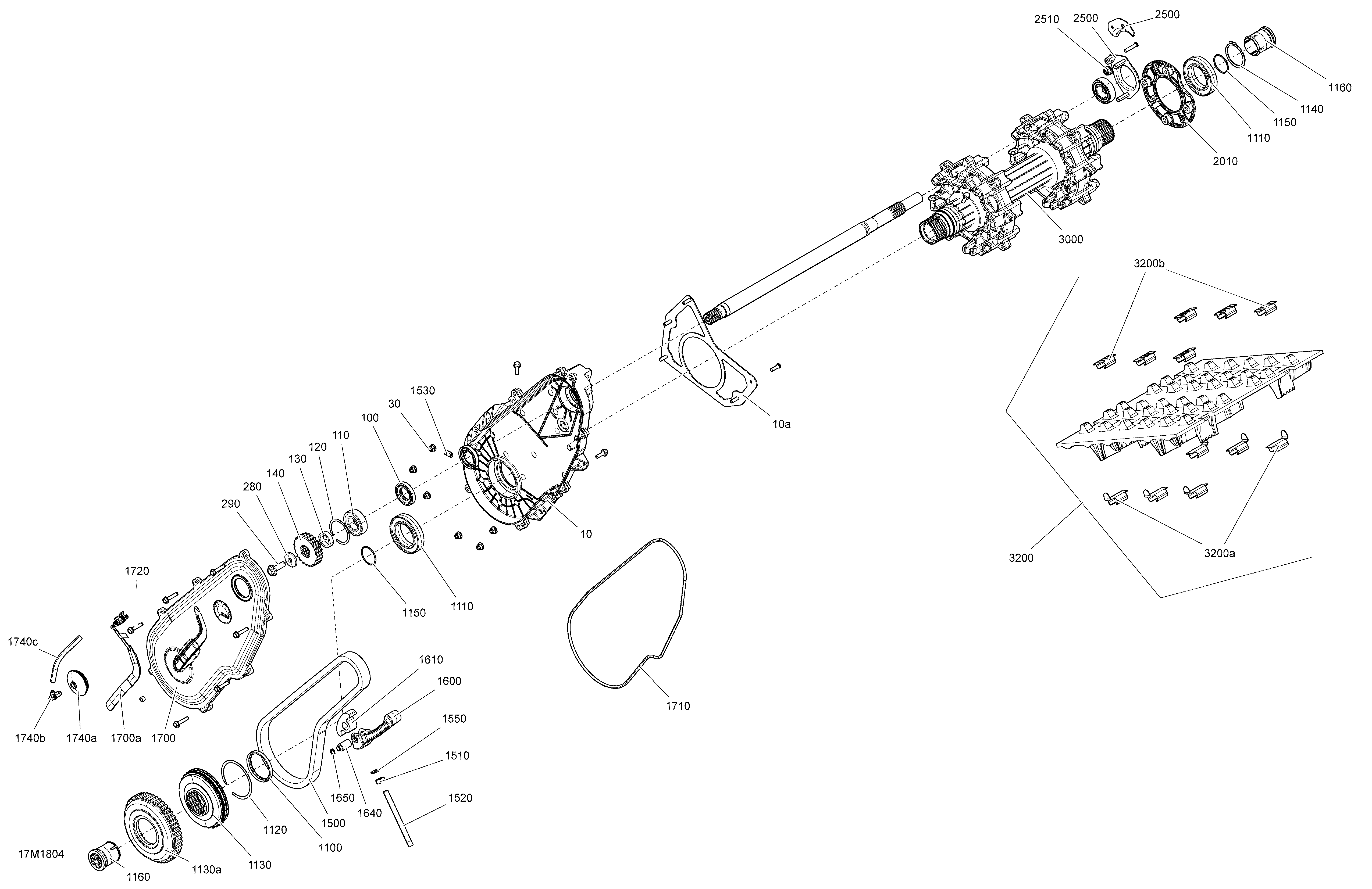

05- Drive Tundra - 600 HO E-TEC - Package XTREME для BRP Ski-Doo 3- TUNDRA 600HO E-TEC - 2018
-
№АртикулНазвание
-
10504153405 Chaincase. Includes 10 to 10aChaincase. Includes 10 to 10a
-
10a518325816 PlatePlate
-
100415049300 Oil SealOil Seal
-
110293350115 Ball BearingBall Bearing
-
120504152576 CirclipCirclip
-
130504152628 ShimShim
-
140504152031 Sprocket, 19 TeethSprocket, 19 Teeth
-
280504152784 Spring Washer M10Spring Washer M10
-
290207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
1100293200159 Oil SealOil Seal
-
1110293350059 Ball BearingBall Bearing
-
1120504152582 CirclipCirclip
-
1130504152581 Sprocket, 49 TeethSprocket, 49 Teeth
-
1140504152572 CirclipCirclip
-
1150293300122 O-RingO-Ring
-
1160504152619 Magnetic CapMagnetic Cap
-
1500504152629 Drive Chain, 104 LinksDrive Chain, 104 Links
-
1510232006414 Hex. Nut M10Hex. Nut M10
-
1520504152602 Adjustment ScrewAdjustment Screw
-
1530504152854 Magnetic PlugMagnetic Plug
-
1550250200100 Bonded WasherBonded Washer
-
1600504153429 Tensioner chainTensioner chain
-
1610504152739 Slider ChainSlider Chain
-
1640504152841 Tensioner AxleTensioner Axle
-
1650504152282 CirclipCirclip
-
1700504153410 Chaincase Cover Ass'y. Includes 1700 to 1700aChaincase Cover Ass'y. Includes 1700 to 1700a
-
1700a504152896 SensorSensor
-
1710293300130 O-RingO-Ring
-
1720250000935 Screw-Forming Hex.HD.FL.BZNScrew-Forming Hex.HD.FL.BZN
-
1740a504152860 CapCap
-
1740b414580700 Male ConnectorMale Connector
-
1740c415080200 Hose, PolyurethaneHose, Polyurethane
-
2010504153426 Retaining RingRetaining Ring
-
2020293350059 Ball BearingBall Bearing
-
2030293300122 O-RingO-Ring
-
2040504152619 Magnetic CapMagnetic Cap
-
2050504152572 CirclipCirclip
-
2500504153418 Bearing HousingBearing Housing
-
2510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3000504153083 Drive Axle Ass'yDrive Axle Ass'y
-
3200504153396 Track Ass'y 16''X154''X2.50''. Includes 3200 to 3200bTrack Ass'y 16''X154''X2.50''. Includes 3200 to 3200b
-
3200a415129528 Track GuideTrack Guide
-
3200b415129529 CleatCleat
