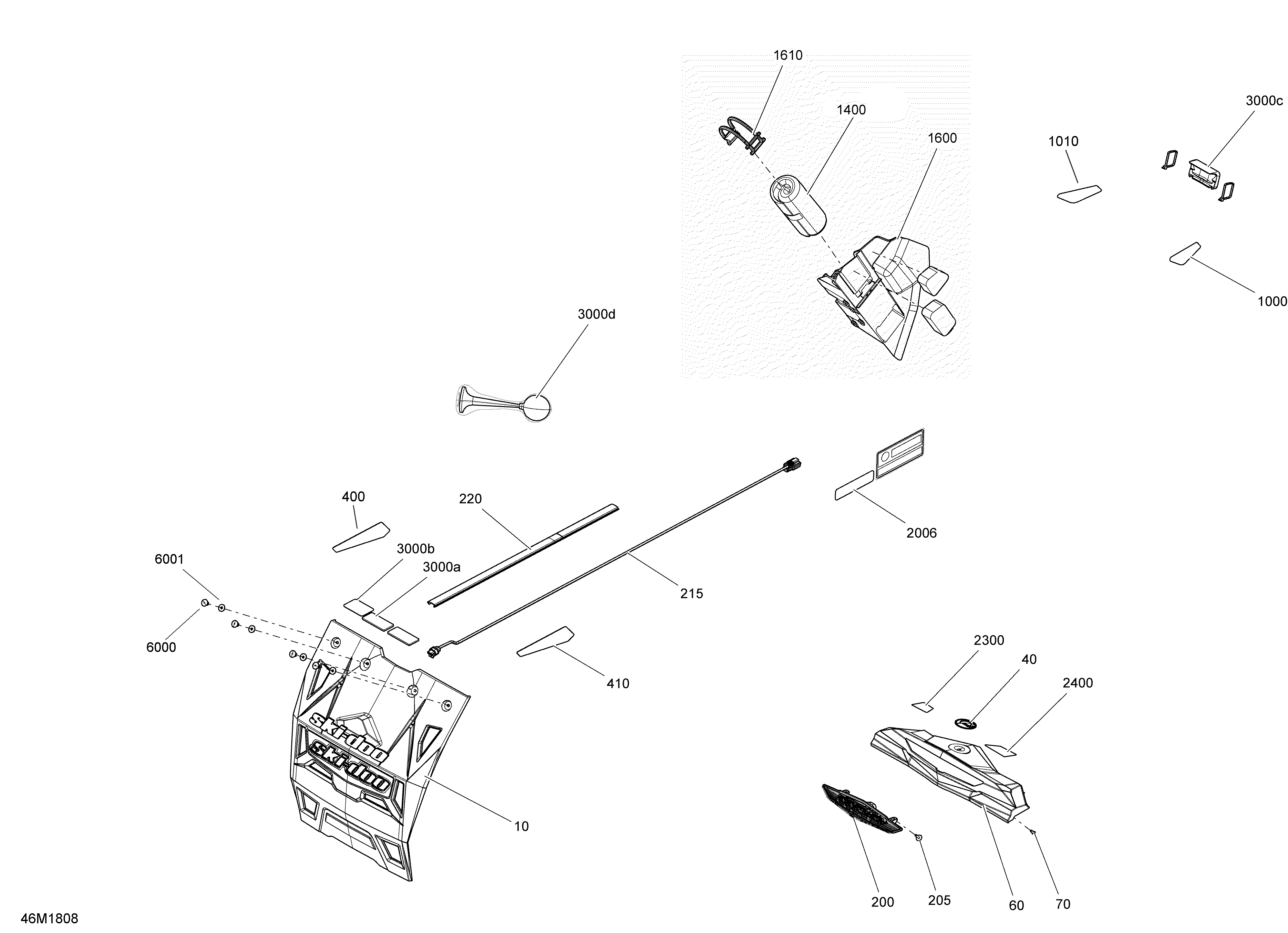

09- Utilities Tundra - XTREM для BRP Ski-Doo 3- TUNDRA 600HO E-TEC - 2018
-
№АртикулНазвание
-
10520001510 Snow GuardSnow Guard
-
40516008738 Logo BRPLogo BRP
-
60511000810 Light FairingLight Fairing
-
70241141340 Hex. Screw K40 X 13Hex. Screw K40 X 13
-
200520001143 Rear LightRear Light
-
205250000725 Screw M4 X 16Screw M4 X 16
-
215515178064 Wiring HarnessWiring Harness
-
220520000829 Radiator TrimRadiator Trim
-
400520001239 Red RH Rear Reflector. North AmericaRed RH Rear Reflector. North America
-
410520001238 Red LH Rear ReflectorRed LH Rear Reflector
-
1000520000891 Yellow RH Front ReflectorYellow RH Front Reflector
-
1010520000892 Yellow LH Front ReflectorYellow LH Front Reflector
-
1400520001670 Tools KitTools Kit
-
1400a529000004 Screw Driver. Not ShownScrew Driver. Not Shown
-
1400b529000046 Set Key, 16/21 mm. Not ShownSet Key, 16/21 mm. Not Shown
-
1400c529000002 Fork Wrench, 10/13 mm. Not ShownFork Wrench, 10/13 mm. Not Shown
-
1400d529017500 Rope Starter. Not ShownRope Starter. Not Shown
-
1400e529000060 Starter Grip. Not ShownStarter Grip. Not Shown
-
1400f520001499 Wrench. Not ShownWrench. Not Shown
-
1600520000894 Tool Kit RackTool Kit Rack
-
1610520000528 LatchLatch
-
1650514054827 Reflective SheetReflective Sheet
-
2300516006914 Security Label, XSSecurity Label, XS
-
2400516005058 Warning Decal, SafetyWarning Decal, Safety
-
6000293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
6001517124300 WasherWasher
