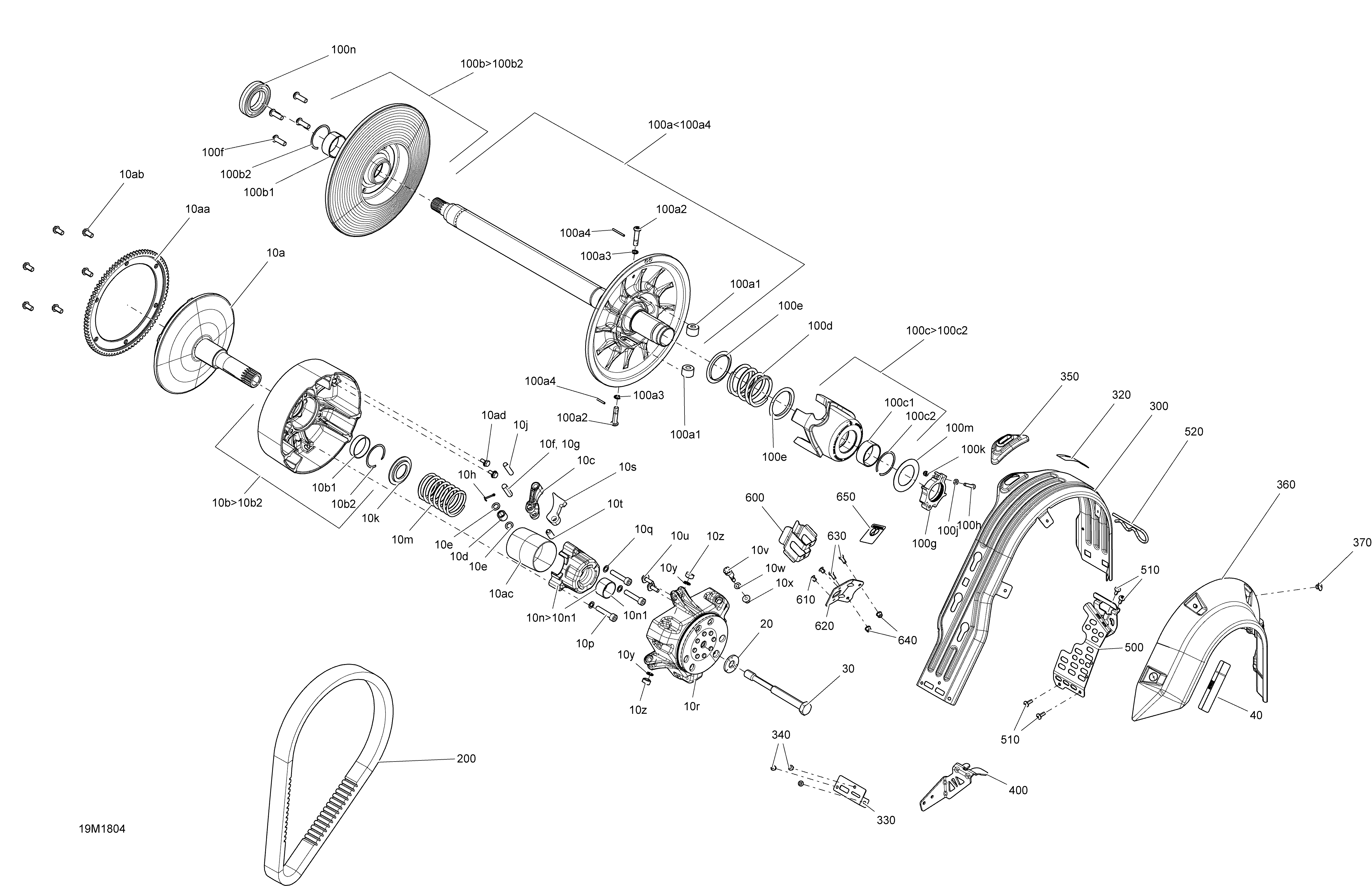

05- Pulley Tundra - 600 HO ETEC - Package XTreme для BRP Ski-Doo 3- TUNDRA 600HO E-TEC - 2018
-
№АртикулНазвание
-
10a417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
10b417222181 Sliding Flange Ass'y. Includes 10b to 10b2Sliding Flange Ass'y. Includes 10b to 10b2
-
10b1417222758 BushingBushing
-
10b2293370037 CirclipCirclip
-
10c417222671 LeverLever
-
10d417222947 RollerRoller
-
10e417004302 Stopper WasherStopper Washer
-
10f417004308 Pin. EuropePin. Europe
-
10f1417222477 Threaded Pin. North AmericaThreaded Pin. North America
-
10f2250000410 Socket Set Screw M6 X 16. North AmericaSocket Set Screw M6 X 16. North America
-
10h250400060 Cotter PinCotter Pin
-
10j417223164 Lever AxleLever Axle
-
10k417222312 Spring SeatSpring Seat
-
10m414817700 Spring, Blue/green. EuropeSpring, Blue/green. Europe
-
10m415015200 Spring (Red/Orange). North AmericaSpring (Red/Orange). North America
-
10n417007500 Spring Cover Ass'y. Includes 10n to 10n1Spring Cover Ass'y. Includes 10n to 10n1
-
10n1417009204 BushingBushing
-
10p205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
10q250200009 Lock Washer 8 mmLock Washer 8 mm
-
10r417223669 Governor Cup Ass'yGovernor Cup Ass'y
-
10s417222515 Ramp 412. EuropeRamp 412. Europe
-
10s417222552 Ramp 417. North AmericaRamp 417. North America
-
10t250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
10u250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
10v417223501 Calibration ScrewCalibration Screw
-
10w417005600 WasherWasher
-
10x233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10y732401030 O-RingO-Ring
-
10z417222992 Slider Shoe. EuropeSlider Shoe. Europe
-
10z417223271 Slider Shoe. North AmericaSlider Shoe. North America
-
10aa417223738 Ring GearRing Gear
-
10ab250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
10ac417009205 GuardGuard
-
10ad250000412 Flanged Hex. Screw M6 X 12, Scotch GripFlanged Hex. Screw M6 X 12, Scotch Grip
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
30417120000 Drive Pulley BoltDrive Pulley Bolt
-
40516005503 Decal, EnglishDecal, English
-
100a417127389 Fix Flange Ass'y. Includes 100a to 100a4Fix Flange Ass'y. Includes 100a to 100a4
-
100a1417127016 RollerRoller
-
100a2417127294 Pivot StudPivot Stud
-
100a3250200009 Lock Washer 8 mmLock Washer 8 mm
-
100a4250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
100b417127317 Sliding Flange Ass'y. Includes 100b to 100b2Sliding Flange Ass'y. Includes 100b to 100b2
-
100b1417127318 BushingBushing
-
100b2293370049 CirclipCirclip
-
100c417127376 Cam Ass'y. Europe. Includes 100c to 100c2Cam Ass'y. Europe. Includes 100c to 100c2
-
100c417127325 Cam Ass'y. North America. Includes 100c to 100c2Cam Ass'y. North America. Includes 100c to 100c2
-
100c1417127318 BushingBushing
-
100c2293370049 CirclipCirclip
-
100d417127039 Black SpringBlack Spring
-
100e417127116 Swivel AbutmentSwivel Abutment
-
100f250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
100g415129604 Calibration Ass'yCalibration Ass'y
-
100h205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
100j234051410 Flat Washer M5Flat Washer M5
-
100k232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
100m417127155 WasherWasher
-
100n504152574 Ball BearingBall Bearing
-
200417300383 Drive BeltDrive Belt
-
300417300382 Belt GuardBelt Guard
-
320516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
330417300380 ReinforcementReinforcement
-
340390909200 Avex RivetAvex Rivet
-
350417300381 GuideGuide
-
360417300356 Side ProtectorSide Protector
-
370293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
400417300374 Front Belt Guard BracketFront Belt Guard Bracket
-
500417300448 Belt Guard BracketBelt Guard Bracket
-
510250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
520114045200 Hair PinHair Pin
-
600517281905 BracketBracket
-
610390909200 Avex RivetAvex Rivet
-
620417300406 PlatePlate
-
630207151444 Hex. Screw M5 X 14Hex. Screw M5 X 14
-
640233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
650516007493 Belt Gard DecalBelt Gard Decal
