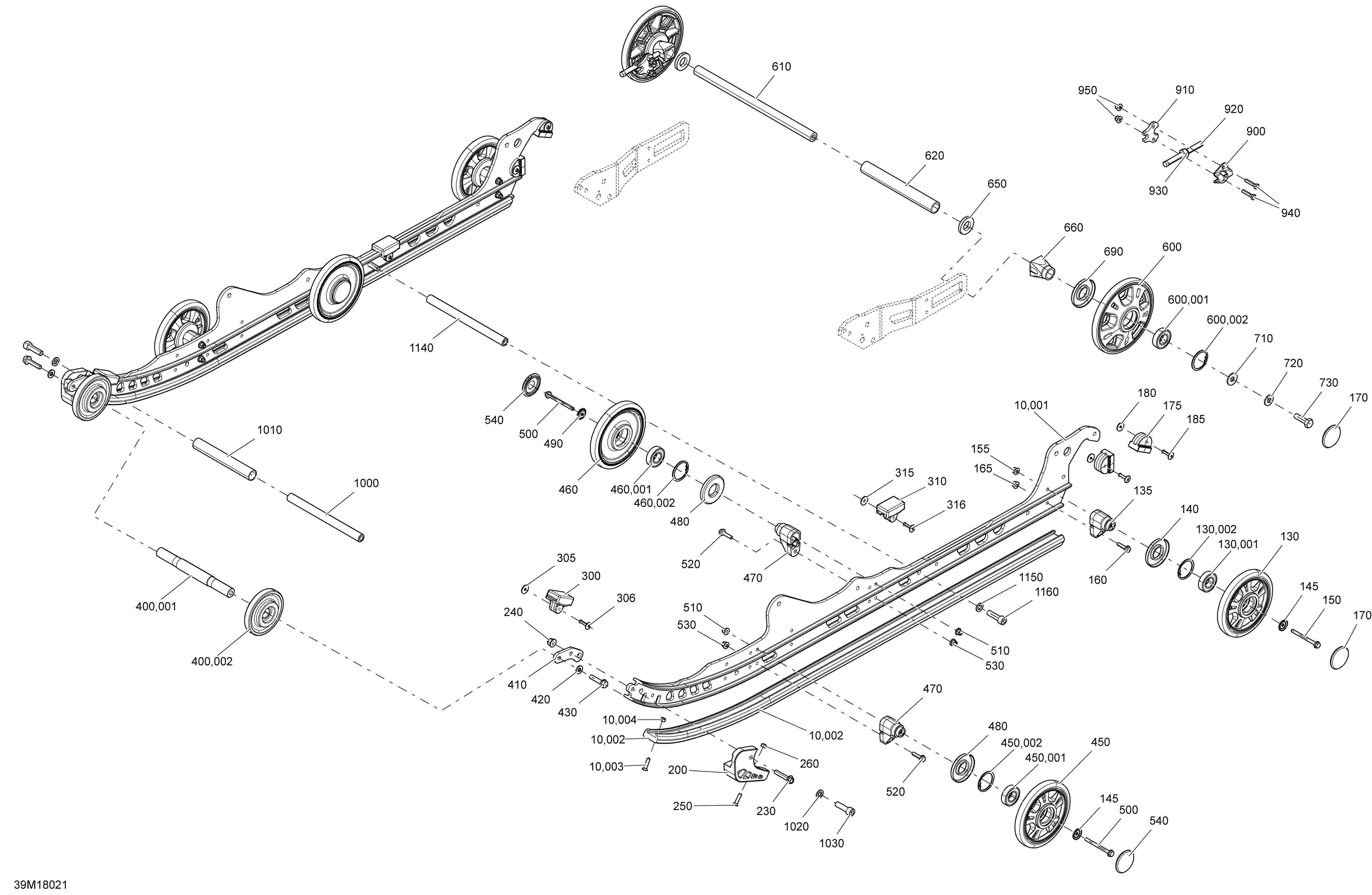

08- Rear Suspension Tundra - Package Xtreme - Inferior для BRP Ski-Doo 3- TUNDRA 600HO E-TEC - 2018
-
№АртикулНазвание
-
10.001503194599 Green Machined Rail 154. Includes 10,001 to 10,002Green Machined Rail 154. Includes 10,001 to 10,002
-
10.002503192618 Black Slider, 154''Black Slider, 154''
-
10.003208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
10.004232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
130503191152 Black - Wheel Ass'y 147 mm. Includes 130 to 130,002Black - Wheel Ass'y 147 mm. Includes 130 to 130,002
-
130.001503190396 Ball BearingBall Bearing
-
130.002415129371 Retaining RingRetaining Ring
-
135503193894 Casted SupportCasted Support
-
140503190434 Labyrinth SealLabyrinth Seal
-
145503191820 Wheel Cup M6Wheel Cup M6
-
150250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
155233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
160250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
165233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
170503192771 Black - Wheel CapBlack - Wheel Cap
-
175503191291 Rubber StopperRubber Stopper
-
180503191273 WasherWasher
-
185293150224 Rivet Pop 3/16Rivet Pop 3/16
-
200503192609 LH ProtectorLH Protector
-
200503192610 RH ProtectorRH Protector
-
230207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
240233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
250208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
260232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
300503190576 Rubber StopperRubber Stopper
-
305503191273 WasherWasher
-
306293150224 Rivet Pop 3/16Rivet Pop 3/16
-
310503190576 Rubber StopperRubber Stopper
-
315503191273 WasherWasher
-
316293150224 Rivet Pop 3/16Rivet Pop 3/16
-
400.001503192644 Front Wheel AxleFront Wheel Axle
-
400.002503192611 Black Wheel Ass'y, 100 mmBlack Wheel Ass'y, 100 mm
-
410503192612 PlatePlate
-
420503192494 WasherWasher
-
430207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
450503191152 Black - Wheel Ass'y 147 mm. Includes 450 to 450,002Black - Wheel Ass'y 147 mm. Includes 450 to 450,002
-
450.001503190396 Ball BearingBall Bearing
-
450.002415129371 Retaining RingRetaining Ring
-
460503191311 Black Wheel Ass'y 147 mm. Includes 460 to 460,002Black Wheel Ass'y 147 mm. Includes 460 to 460,002
-
460.001503190396 Ball BearingBall Bearing
-
460.002415129371 Retaining RingRetaining Ring
-
470503193894 Casted SupportCasted Support
-
480503190434 Labyrinth SealLabyrinth Seal
-
490503191820 Wheel Cup M6Wheel Cup M6
-
500250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
510233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
520250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
540503192771 Black - Wheel CapBlack - Wheel Cap
-
600503192128 Deep Black Wheel Ass'y, 165 mm. Includes 600 to 600,002Deep Black Wheel Ass'y, 165 mm. Includes 600 to 600,002
-
600.001503190396 Ball BearingBall Bearing
-
600.002415129371 Retaining RingRetaining Ring
-
610503190429 Rear AxleRear Axle
-
620503193052 SpacerSpacer
-
650503190432 WasherWasher
-
660503190428 Rear Wheel SpacerRear Wheel Spacer
-
670503192140 Black Wheel Ass'y, 165 mm. Includes 670 to 670,002Black Wheel Ass'y, 165 mm. Includes 670 to 670,002
-
670.001503190396 Ball BearingBall Bearing
-
670.002415129371 Retaining RingRetaining Ring
-
680503190682 Labyrinth SealLabyrinth Seal
-
690503190434 Labyrinth SealLabyrinth Seal
-
710503191910 WasherWasher
-
720234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
730250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
900503192583 TensionerTensioner
-
910503193250 SpacerSpacer
-
920230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
930233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
940207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
950233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1000503192613 Axle StrapAxle Strap
-
1010503192678 SpacerSpacer
-
1020503192496 WasherWasher
-
1030205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
1140503191260 Axle StrapAxle Strap
-
1150503192496 WasherWasher
-
1160205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
