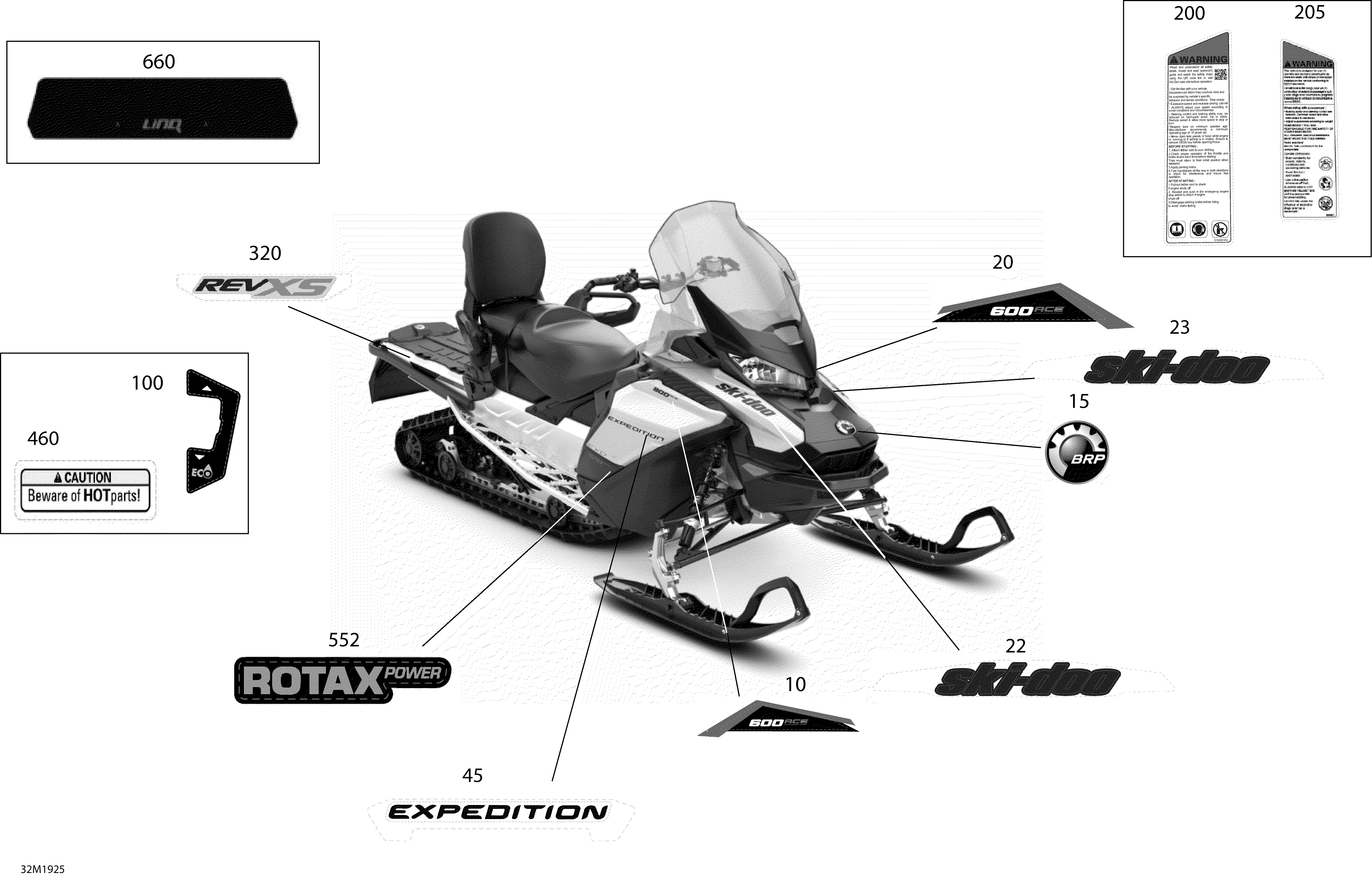

09- Decals - 600 ACE для BRP Ski-Doo 002 - EXPEDITION SPORT 600 ACE - 2019
-
№АртикулНазвание
-
10516007890 RH Hood Decal, 602RH Hood Decal, 602
-
15516008739 BRP Logo, 68mmBRP Logo, 68mm
-
20516007889 LH Side DecalLH Side Decal
-
22516007290 RH Hood SKI-DOO Decal, BlackRH Hood SKI-DOO Decal, Black
-
23516007289 LH Hood SKI-DOO Decal, BlackLH Hood SKI-DOO Decal, Black
-
45516006889 LH Side Decal, ExpeditionLH Side Decal, Expedition
-
100516006386 Decal ECO, 900 ACE-1200 4-TECDecal ECO, 900 ACE-1200 4-TEC
-
200516009182 Warning Decal SecurityWarning Decal Security
-
205516005056 ENG Warning RH Decal, SecurityENG Warning RH Decal, Security
-
320516006250 Frame Decal, REV XSFrame Decal, REV XS
-
460516005280 Caution Decal Hot PartsCaution Decal Hot Parts
-
552516008069 Rotax Power Decal, Black/White Lett.Rotax Power Decal, Black/White Lett.
-
660516006860 Rear Top Frame LinQ Black DecalRear Top Frame LinQ Black Decal
