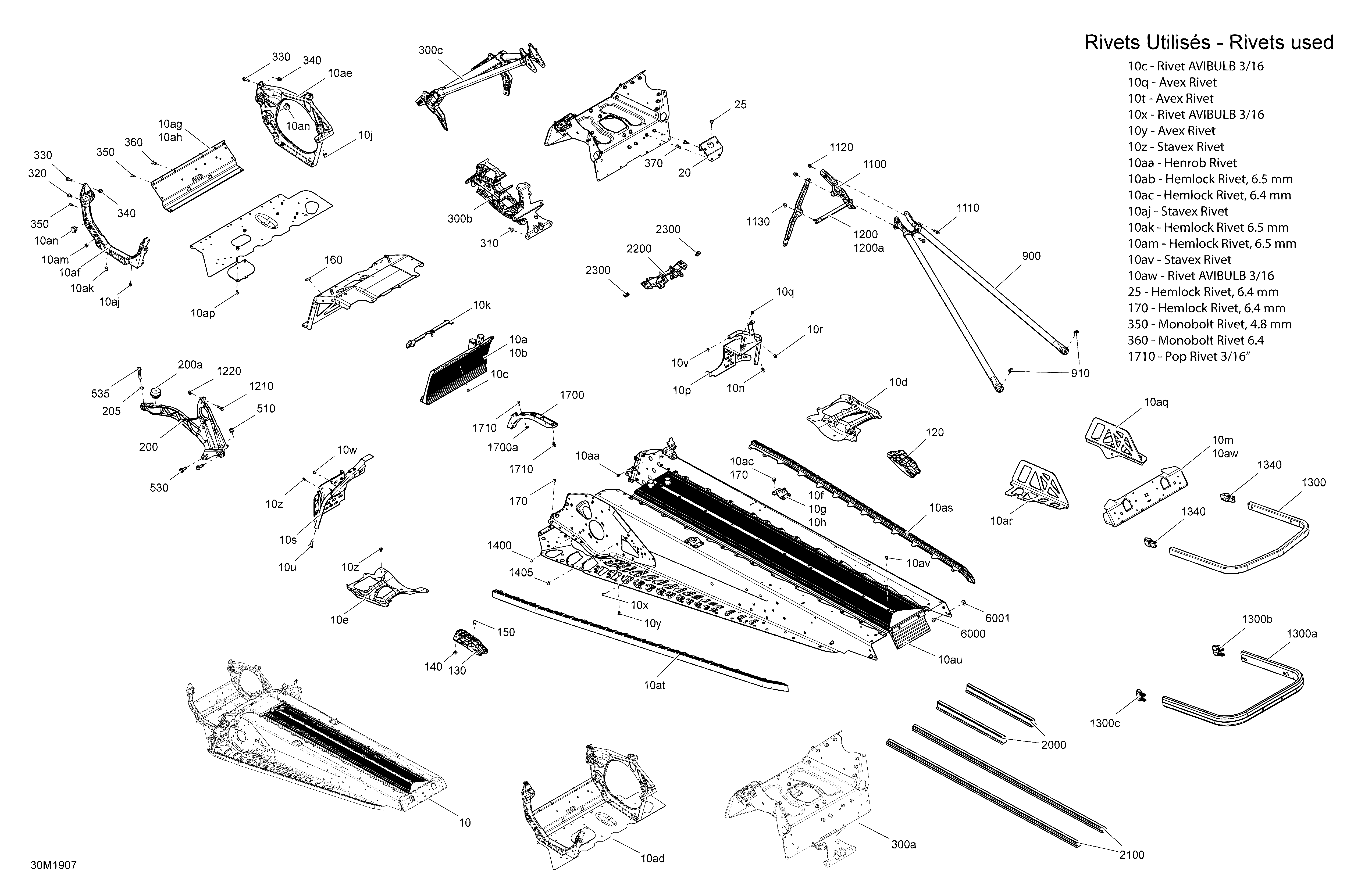

09- Frame - 600 ACE для BRP Ski-Doo 002 - EXPEDITION SPORT 600 ACE - 2019
-
№АртикулНазвание
-
10415130266 Frame. Includes 10 to 10awFrame. Includes 10 to 10aw
-
10a518327907 Front Radiator Ass'y. Includes 10a to 10bFront Radiator Ass'y. Includes 10a to 10b
-
10b250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10c293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
10d518326937 RH Reinforcement, Running BoardRH Reinforcement, Running Board
-
10e518326938 LH Reinforcement, Running BoardLH Reinforcement, Running Board
-
10f518325973 RH Rear BaseRH Rear Base
-
10g518325974 LH Rear Base. Includes 10g to 10hLH Rear Base. Includes 10g to 10h
-
10h250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
10j293450275 InsertInsert
-
10k518326656 SealSeal
-
10m518327105 Rear CapRear Cap
-
10n293450275 InsertInsert
-
10p518328942 RH Stirup. Includes 10p to 10qRH Stirup. Includes 10p to 10q
-
10q390909200 Avex RivetAvex Rivet
-
10r293450268 Insert M5 X 0.8Insert M5 X 0.8
-
10s518328528 LH Stirup. Includes 10s to 10tLH Stirup. Includes 10s to 10t
-
10t390909200 Avex RivetAvex Rivet
-
10u250000752 Torx Screw M8 X 1.25 X 25, Scotch GripTorx Screw M8 X 1.25 X 25, Scotch Grip
-
10v293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
10w293450268 Insert M5 X 0.8Insert M5 X 0.8
-
10x293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
10y390909100 Avex RivetAvex Rivet
-
10z293150144 Stavex RivetStavex Rivet
-
10aa293150146 Henrob RivetHenrob Rivet
-
10ab293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10ac293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10ad518328078 'E'' Module. Includes 10ad to 10ap'E'' Module. Includes 10ad to 10ap
-
10ae518326328 RH Side MemberRH Side Member
-
10af518326330 LH Side MemberLH Side Member
-
10ag518326198 Front Member. Includes 10ag to 10ahFront Member. Includes 10ag to 10ah
-
10ah250300038 Clinch StudClinch Stud
-
10aj293150144 Stavex RivetStavex Rivet
-
10ak293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
10am293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10an505073317 Leg CushionLeg Cushion
-
10ap250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
10aq518327605 RH Suspension BracketRH Suspension Bracket
-
10ar518327606 LH Suspension BracketLH Suspension Bracket
-
10as518328098 RH RollerRH Roller
-
10at518328099 LH RollerLH Roller
-
10au518326692 Rear Radiator Ass'y, 154''. Includes 10au to 10avRear Radiator Ass'y, 154''. Includes 10au to 10av
-
10av293150144 Stavex RivetStavex Rivet
-
10aw293150147 Hemlock RivetHemlock Rivet
-
20518326178 Engine SupportEngine Support
-
25293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
30390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
50233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
120518325782 RH Deflector, Black PolypropyleneRH Deflector, Black Polypropylene
-
130518325783 LH Deflector, Black PolypropyleneLH Deflector, Black Polypropylene
-
140293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
150207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
160518325560 Adhesive PatchAdhesive Patch
-
170293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
200518327535 Brace Ass'y. Includes 200 to 200aBrace Ass'y. Includes 200 to 200a
-
200a512060295 Rubber MountRubber Mount
-
205234281474 Conical Spring Washer M8Conical Spring Washer M8
-
300a518328320 Cross Member S Module. Includes 300a to 300bCross Member S Module. Includes 300a to 300b
-
300b518327487 Front Suspension SupportFront Suspension Support
-
300c518327565 Front MemberFront Member
-
310233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
320250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
340233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
350293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
360293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
530250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
535207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
900518326559 Rear MemberRear Member
-
910233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1100518326848 Upper Column SupportUpper Column Support
-
1110207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1120233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1130233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1200518326355 Center Column Support. Includes 1200 to 1200aCenter Column Support. Includes 1200 to 1200a
-
1200a250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
1210207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1220233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1300a518325579 Clear Rear BumperClear Rear Bumper
-
1300b520000711 Full Moon RH CapFull Moon RH Cap
-
1300c520000712 Full Moon LH CapFull Moon LH Cap
-
1400293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
1405293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
2200518327145 Sub A SupportSub A Support
-
2300250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
6000250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
6001224061201 Flat WasherFlat Washer
