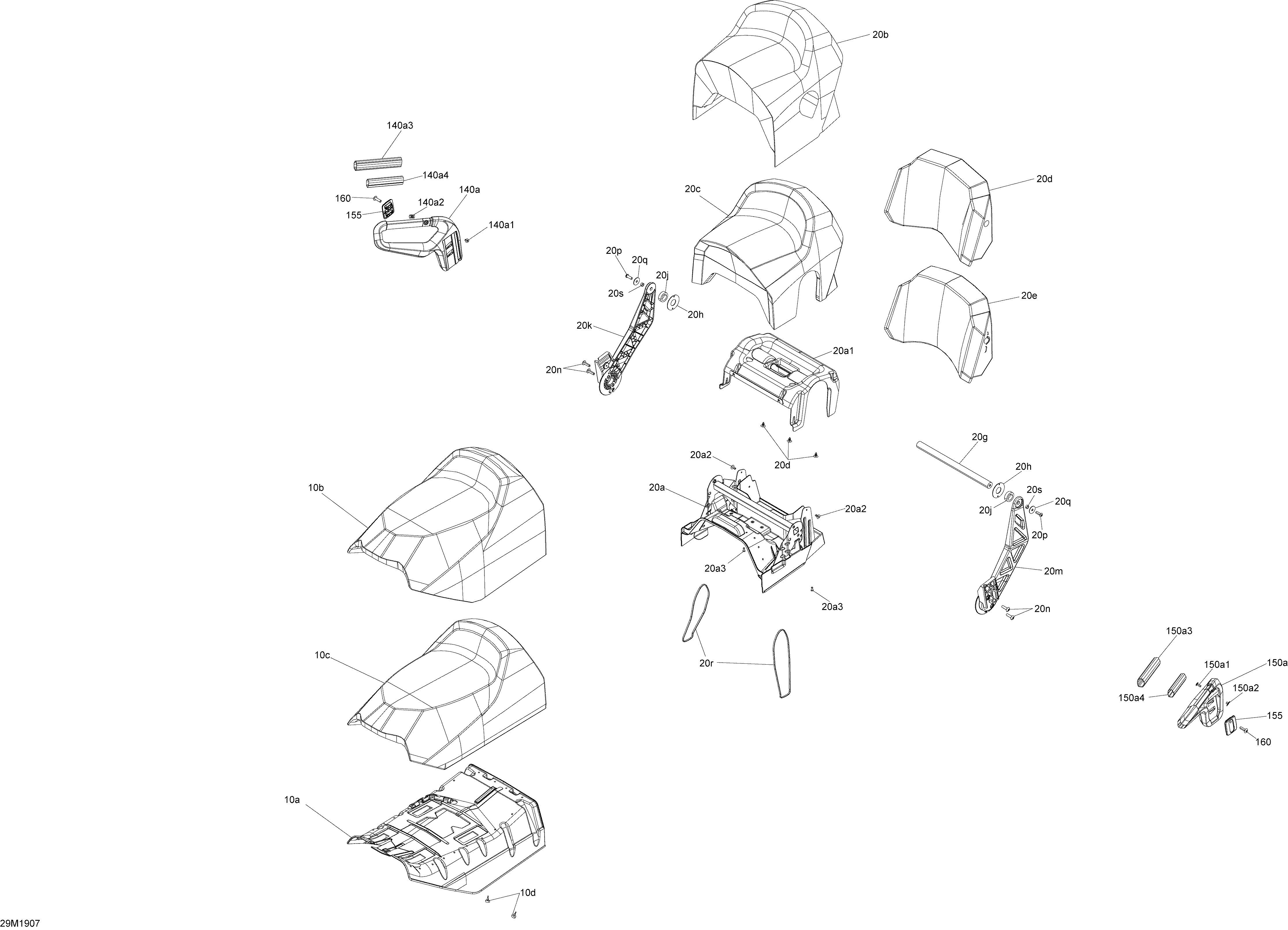

09- Seat для BRP Ski-Doo 002 - EXPEDITION SPORT 600 ACE - 2019
-
№АртикулНазвание
-
10a510004775 Front Seat BaseFront Seat Base
-
10b510005181 Seat CoverSeat Cover
-
10c510004777 Front Seat FoamFront Seat Foam
-
10d708000759 Rubber StopperRubber Stopper
-
20a510005535 Seat Base Ass'y. Includes 20a to 20a3Seat Base Ass'y. Includes 20a to 20a3
-
20a1510004423 Foam SupportFoam Support
-
20a2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20a3390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
20b510005399 Rear Seat CoverRear Seat Cover
-
20c510004791 Rear Seat FoamRear Seat Foam
-
20d414644300 DartDart
-
20e510004782 Backrest FoamBackrest Foam
-
20f510005309 Backrest CoverBackrest Cover
-
20g510004377 Upper Backrest AxleUpper Backrest Axle
-
20h510004379 WasherWasher
-
20j510004378 Rubber ShimRubber Shim
-
20k510005539 RH Arm, BlackRH Arm, Black
-
20m510005538 LH Arm, BlackLH Arm, Black
-
20n250000745 Hex Torx Truss M8 X30Hex Torx Truss M8 X30
-
20p250000745 Hex Torx Truss M8 X30Hex Torx Truss M8 X30
-
20q250200128 Flat Washer 8 mmFlat Washer 8 mm
-
20r293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
20s271000558 SpacerSpacer
-
140a510006714 RH Handle Ass'y. Includes 140a to 140a4RH Handle Ass'y. Includes 140a to 140a4
-
140a1250000721 Torx ScrewTorx Screw
-
140a2293100003 Nut Welded, M6Nut Welded, M6
-
140a3510004449 Handle GripHandle Grip
-
140a4510005814 Reinforcement HandleReinforcement Handle
-
150510006713 LH Handle Ass'y. Includes 150a to 150a4LH Handle Ass'y. Includes 150a to 150a4
-
150a1250000721 Torx ScrewTorx Screw
-
150a2293100003 Nut Welded, M6Nut Welded, M6
-
150a3510004449 Handle GripHandle Grip
-
150a4510005814 Reinforcement HandleReinforcement Handle
-
155510004405 MouldingMoulding
-
160250000745 Hex Torx Truss M8 X30Hex Torx Truss M8 X30
-
500224061201 Flat Washer. Not ShownFlat Washer. Not Shown
-
510207361644 Hex. Screw M6 X 16, Scotch Grip. Not ShownHex. Screw M6 X 16, Scotch Grip. Not Shown
-
520207563044 Hex. Flanged Screw M6 X 30, Scotch Grip. Not ShownHex. Flanged Screw M6 X 30, Scotch Grip. Not Shown
