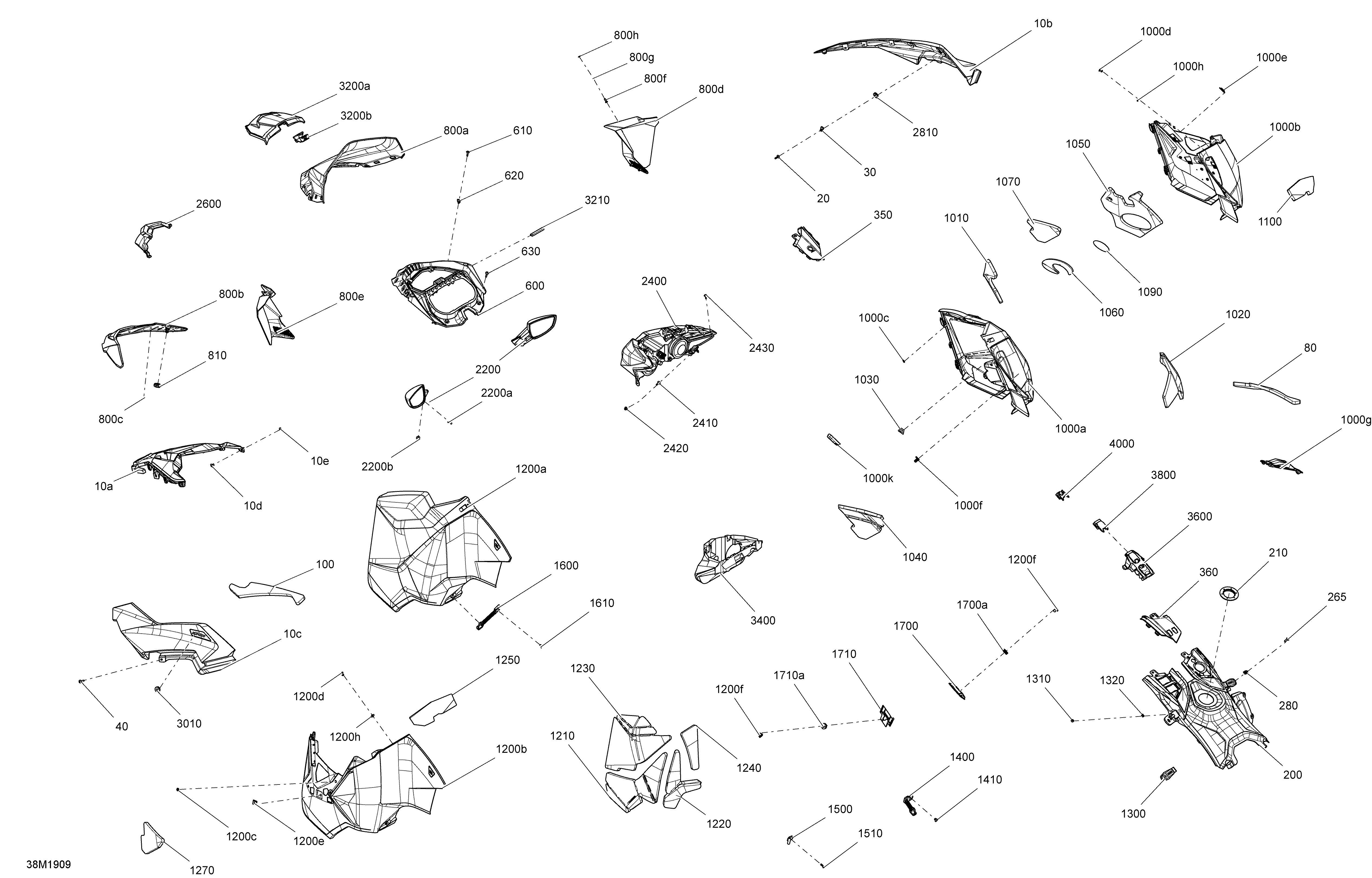

09- Hood для BRP Ski-Doo 002 - EXPEDITION SPORT 600 ACE - 2019
-
№АртикулНазвание
-
10a517305632 White, Center HoodWhite, Center Hood
-
10b517305239 Deep Black, RH HoodDeep Black, RH Hood
-
10c517305240 Deep Black, LH HoodDeep Black, LH Hood
-
10d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10e517124300 WasherWasher
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
80517305090 RH Rear Hood FoamRH Rear Hood Foam
-
100517305091 LH Rear Hood FoamLH Rear Hood Foam
-
200517305557 White, Rear ConsoleWhite, Rear Console
-
210517306602 Console NutConsole Nut
-
265250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
280250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
350517305549 Deep Black, RH Front ConsoleDeep Black, RH Front Console
-
360517306022 LH Front ConsoleLH Front Console
-
400517305061 Deep Black RH ConsoleDeep Black RH Console
-
600517305511 Deep Black, Indicator SupportDeep Black, Indicator Support
-
610250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
620250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
630250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
800a860200928 Windshield 450mmWindshield 450mm
-
800b860200944 Windshield Support Long, Yellow 2000Windshield Support Long, Yellow 2000
-
800c732610072 Push NutPush Nut
-
800d517305008 RH Air DeflectorRH Air Deflector
-
800e517305009 LH Air DeflectorLH Air Deflector
-
800f250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
800g250200025 Washer M5Washer M5
-
800h250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
810517303756 GrommetGrommet
-
900293830005 Rubber BumperRubber Bumper
-
1000a517305400 White, RH PanelWhite, RH Panel
-
1000b517305058 Black, RH Panel TrimBlack, RH Panel Trim
-
1000c250100158 Push NutPush Nut
-
1000d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000e517305109 Rivet PlateRivet Plate
-
1000f517305734 PinPin
-
1000g517304935 Deep Black, RH Panel Vent GridDeep Black, RH Panel Vent Grid
-
1000h517124300 WasherWasher
-
1010517305197 RH Foam CentralRH Foam Central
-
1020517305199 RH Foam RearRH Foam Rear
-
1030517305451 Heat ShieldHeat Shield
-
1040517305196 RH Foam UpperRH Foam Upper
-
1050517305198 RH Foam LowerRH Foam Lower
-
1200a517305407 White, LH PanelWhite, LH Panel
-
1200b517304805 Black, LH Flashing PanelBlack, LH Flashing Panel
-
1200c250100158 Push NutPush Nut
-
1200d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200e517305109 Rivet PlateRivet Plate
-
1200f517305734 PinPin
-
1200g517124300 WasherWasher
-
1210517305201 LH Center Panel FoamLH Center Panel Foam
-
1220517305202 LH Lower Panel FoamLH Lower Panel Foam
-
1230517305200 LH Upper Panel FoamLH Upper Panel Foam
-
1240517305203 LH Rear Panel FoamLH Rear Panel Foam
-
1300517305279 Panel LatchPanel Latch
-
1310250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
1320250100156 Weld Nut M4Weld Nut M4
-
1400517304919 RH Panel LatchRH Panel Latch
-
1410293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1600517303808 LH Panel LatchLH Panel Latch
-
1610293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1700517305724 RH Panel Clip Ass'y, Black. Includes 1700 to 1700aRH Panel Clip Ass'y, Black. Includes 1700 to 1700a
-
1700a517305723 RingRing
-
1710517305722 LH Panel Clip Ass'y, Black. Includes 1710 to 1710aLH Panel Clip Ass'y, Black. Includes 1710 to 1710a
-
1710a517305723 RingRing
-
2200a517303732 RH Mirror SupportRH Mirror Support
-
2200b517303733 LH Mirror SupportLH Mirror Support
-
2200c517305076 RH MirrorRH Mirror
-
2200d517305077 LH MirrorLH Mirror
-
2200e250000721 Torx ScrewTorx Screw
-
2200f250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
2400517306180 HeadlampHeadlamp
-
2410250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
2420250100035 Jack Nut M5Jack Nut M5
-
2430250000725 Screw M4 X 16Screw M4 X 16
-
2600517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
2810517302841 GrommetGrommet
-
3010517302841 GrommetGrommet
-
3200a517304912 Deep Black, Upper Storage Access CoverDeep Black, Upper Storage Access Cover
-
3200b517304917 Cover LatchCover Latch
-
3210517305157 Seal JointSeal Joint
-
3400517305095 Deep Black, TrunkDeep Black, Trunk
-
3600517304970 Deep Black, Console SupportDeep Black, Console Support
-
3800517305180 Deep Black, Support Console CapDeep Black, Support Console Cap
-
4000517305148 Deep Black, Support Console CapDeep Black, Support Console Cap
