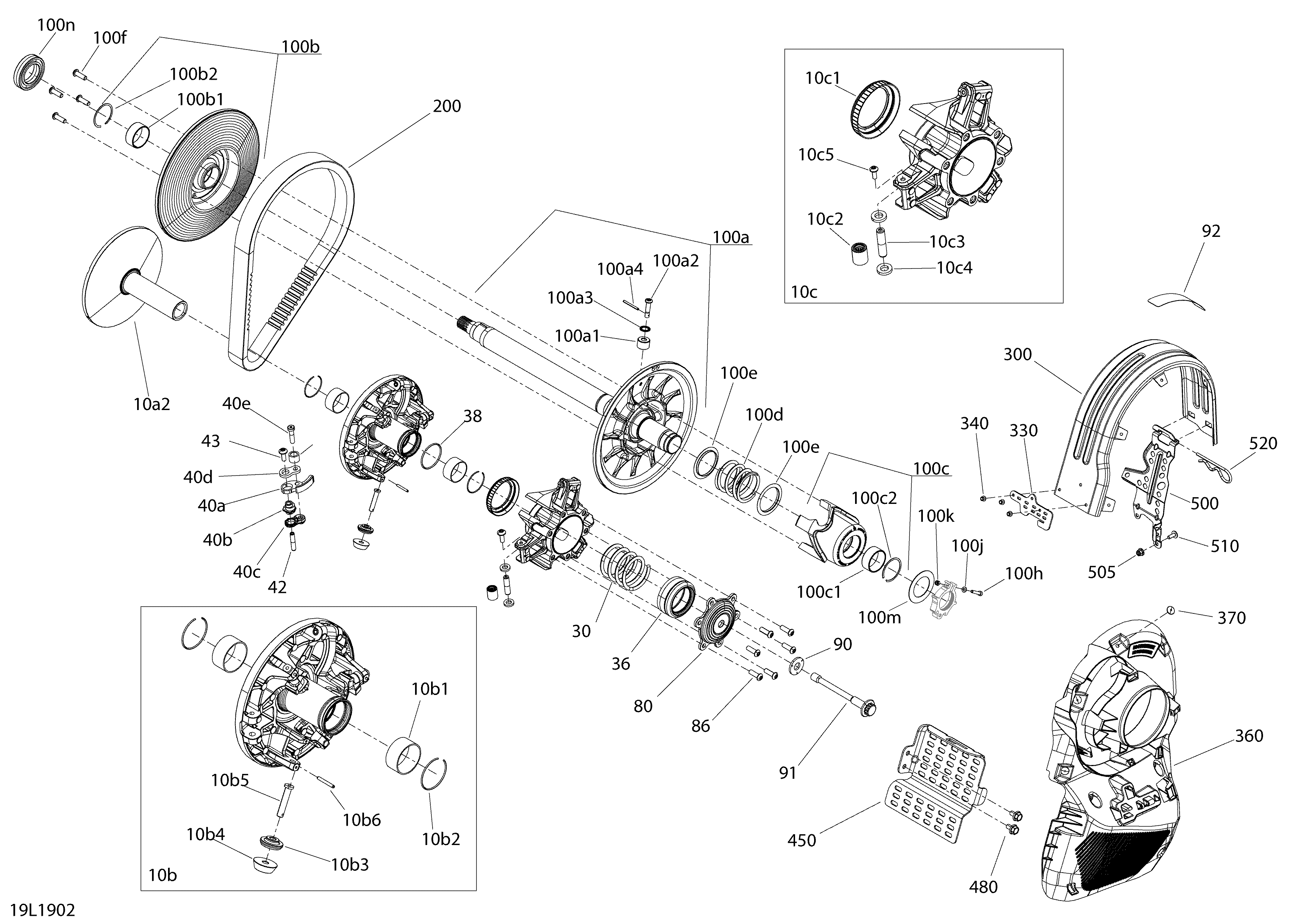

05- Pulley для BRP Ski-Doo 001 - GRAND TOURING 600R E-TEC - 2019
-
№АртикулНазвание
-
10a2417224333 Fixed FLange Ass'yFixed FLange Ass'y
-
10b417224182 Slidding Flange Ass'y. Includes 10b to 10b6Slidding Flange Ass'y. Includes 10b to 10b6
-
10b1293250389 BushingBushing
-
10b2293370117 CirclipCirclip
-
10b3417224153 Back Torque RollerBack Torque Roller
-
10b4417224154 Torque RollerTorque Roller
-
10b5417224191 PinPin
-
10b6250400074 Spring Pin 3/32'' X 3/4''Spring Pin 3/32'' X 3/4''
-
10c417224198 Spider Ass'y. Includes 10c to 10c5Spider Ass'y. Includes 10c to 10c5
-
10c1417224257 Spring GuideSpring Guide
-
10c2417224285 Roller Ass'yRoller Ass'y
-
10c3417224204 Axle - 10mmAxle - 10mm
-
10c4417224009 Washer-ThrustWasher-Thrust
-
10c5250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
30417224172 Clutch SpringClutch Spring
-
36417224003 Seat SpringSeat Spring
-
38293370116 CirclipCirclip
-
40a417224450 Ramp Pulley 995Ramp Pulley 995
-
40b417224113 Cam MoldedCam Molded
-
40c417224086 Lever-RightLever-Right
-
40d417224114 Lever LeftLever Left
-
40e417224221 Pivot 33mmPivot 33mm
-
42417223631 Axle - 8mmAxle - 8mm
-
43250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
80417224201 Drive CushionDrive Cushion
-
86250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
90250200144 Conical Spring Washer M14Conical Spring Washer M14
-
91417300522 Pulley Drive Bolt M14 X 144Pulley Drive Bolt M14 X 144
-
92516007667 Warning DecalWarning Decal
-
100a417127632 Sheave Driven Pulley Fixed Ass'y. Includes 100a to 100a4Sheave Driven Pulley Fixed Ass'y. Includes 100a to 100a4
-
100a1417127016 RollerRoller
-
100a2417127294 Pivot StudPivot Stud
-
100a3250200009 Lock Washer 8 mmLock Washer 8 mm
-
100a4250400070 Spring PinSpring Pin
-
100b417127317 Sliding Flange Ass'y. Includes 100b to 100b2Sliding Flange Ass'y. Includes 100b to 100b2
-
100b1417127318 Bushing ID 41mm OD 45mm X 19mm LBushing ID 41mm OD 45mm X 19mm L
-
100b2293370049 CirclipCirclip
-
100c417127367 Cam Ass'y. Includes 100c to 100c2Cam Ass'y. Includes 100c to 100c2
-
100c1417127318 Bushing ID 41mm OD 45mm X 19mm LBushing ID 41mm OD 45mm X 19mm L
-
100c2293370049 CirclipCirclip
-
100d417127137 Green SpringGreen Spring
-
100e417127116 Swivel AbutmentSwivel Abutment
-
100h250000981 Socket Screw M5 X 25Socket Screw M5 X 25
-
100j234051410 Flat Washer M5Flat Washer M5
-
100k232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
100m417127155 WasherWasher
-
100n504152574 Ball BearingBall Bearing
-
200417300551 Drive BeltDrive Belt
-
300417300479 Belt GuardBelt Guard
-
330417300561 Front, Retaining HookFront, Retaining Hook
-
340390909200 Avex RivetAvex Rivet
-
360a417300553 CVT Duct CoolingCVT Duct Cooling
-
360b414575600 Hair Pin. not shownHair Pin. not shown
-
370293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
500417300514 Support GuardSupport Guard
-
505233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
510250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
520114045200 Hair PinHair Pin
