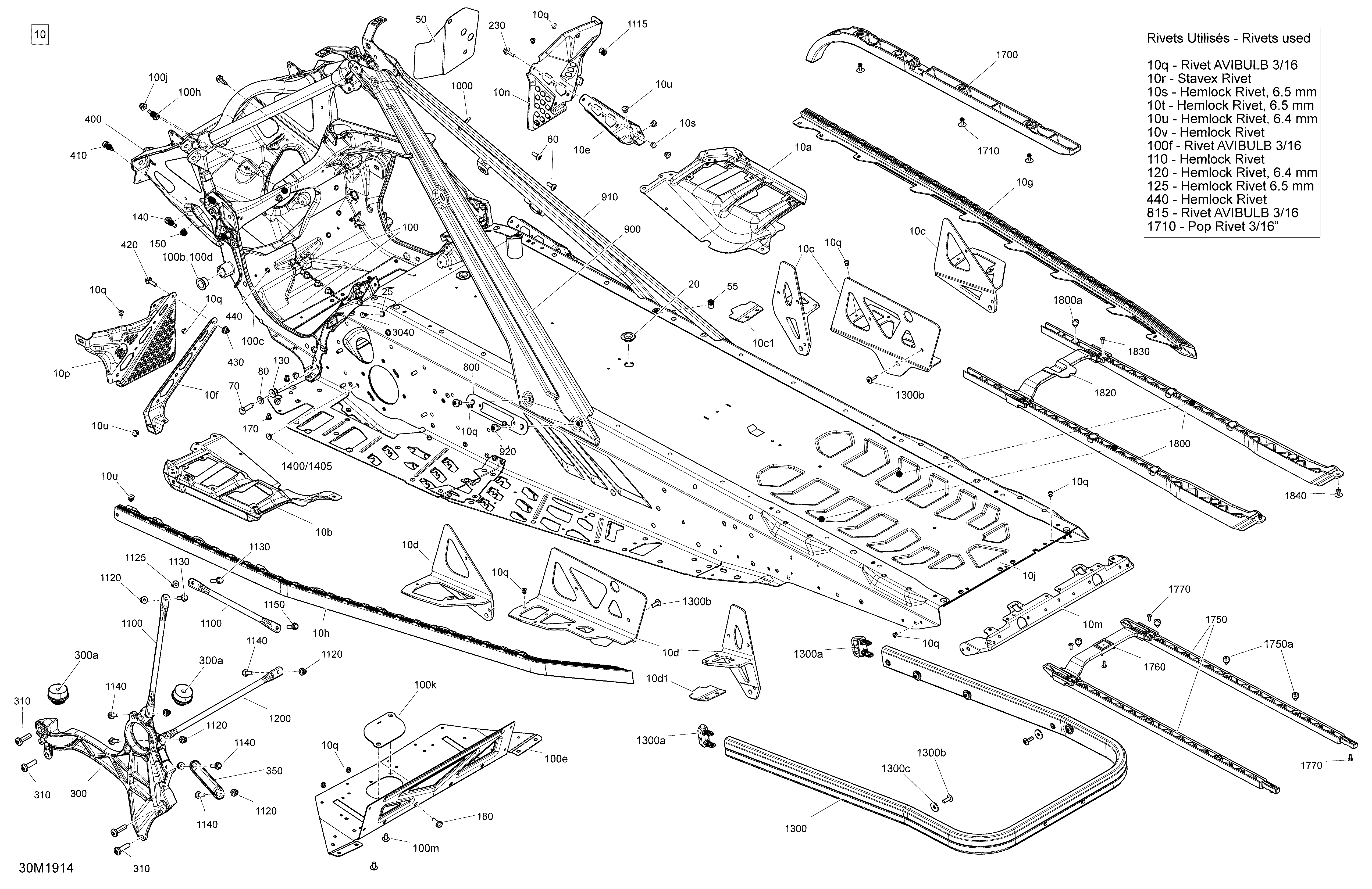

09- Frame для BRP Ski-Doo 001 - GRAND TOURING 600R E-TEC - 2019
-
№АртикулНазвание
-
10415130231 Module Chassis Tunnel 137''. Includes 10 to 10vModule Chassis Tunnel 137''. Includes 10 to 10v
-
10a518330738 Deep Black, RH Footrest ReinforcementDeep Black, RH Footrest Reinforcement
-
10b518330737 Deep Black, LH Footrest ReinforcementDeep Black, LH Footrest Reinforcement
-
10c518329627 RH Suspension BracketRH Suspension Bracket
-
10d518329628 LH Suspension BracketLH Suspension Bracket
-
10e518330072 RH Footrest ReinforcementRH Footrest Reinforcement
-
10f518329049 LH Footrest ReinforcementLH Footrest Reinforcement
-
10g518329648 RH RollerRH Roller
-
10h518328452 LH RollerLH Roller
-
10j415130269 Kit Radiator Tunnel 137''Kit Radiator Tunnel 137''
-
10k250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10m518328990 Rear CapRear Cap
-
10n518330691 RH FootrestRH Footrest
-
10p518330692 LH FootrestLH Footrest
-
10q293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
10r293150144 Stavex RivetStavex Rivet
-
10s293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10t293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10u293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10v293150147 Hemlock RivetHemlock Rivet
-
20293730052 Black, PlugBlack, Plug
-
25250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
30506151252 WasherWasher
-
70250000942 Hex Screw M8 X 30Hex Screw M8 X 30
-
80234081410 Flat Washer 8 mmFlat Washer 8 mm
-
90233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
100518330636 Engine Chassis Module Ass'y. Includes 100 to 100jEngine Chassis Module Ass'y. Includes 100 to 100j
-
100a518330554 RH Side Member Ass'y. Includes 100a to 100bRH Side Member Ass'y. Includes 100a to 100b
-
100b505073317 Leg CushionLeg Cushion
-
100c518330557 LH Side Member Assy. Includes 100c to 100dLH Side Member Assy. Includes 100c to 100d
-
100d505073317 Leg CushionLeg Cushion
-
100e518330074 Bottom PlateBottom Plate
-
100f293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
100g293450268 Insert M5 X 0.8Insert M5 X 0.8
-
100h207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100j233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
110293150147 Hemlock RivetHemlock Rivet
-
120293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
125293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
130233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
150233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
170293450268 Insert M5 X 0.8Insert M5 X 0.8
-
180207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
230207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
300518328693 Brace Ass'y. Includes 300 to 300aBrace Ass'y. Includes 300 to 300a
-
300a512060295 Rubber MountRubber Mount
-
310250001060 Screw-Pan HD.Torx M8X30Screw-Pan HD.Torx M8X30
-
400518330573 S ModuleS Module
-
410250001051 Screw-Forming Hex.HD.FL. M6 X 16Screw-Forming Hex.HD.FL. M6 X 16
-
420207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
430233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
440293150147 Hemlock RivetHemlock Rivet
-
800518329480 Member Fixation PlateMember Fixation Plate
-
815293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
900518329077 Black, LH MemberBlack, LH Member
-
910518330880 Right Member Black AssemblyRight Member Black Assembly
-
920250000887 Pan Head Torx Screw M8 X 12Pan Head Torx Screw M8 X 12
-
1000250300629 Stud M5 X 20Stud M5 X 20
-
1100518329974 Upper Colomn SupportUpper Colomn Support
-
1110207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
1115293450275 InsertInsert
-
1120233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1125233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1130207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1300518330197 Black, 137 Hitch Bumper. Includes 1300 to 1300aBlack, 137 Hitch Bumper. Includes 1300 to 1300a
-
1300a520001629 Bumper CapBumper Cap
-
1300b250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
1300c224061201 Flat WasherFlat Washer
-
1400293730047 Black Dart 8 mmBlack Dart 8 mm
-
1700518329982 Front ProtectorFront Protector
-
1710293150108 Pop Rivet 3/16”Pop Rivet 3/16”
