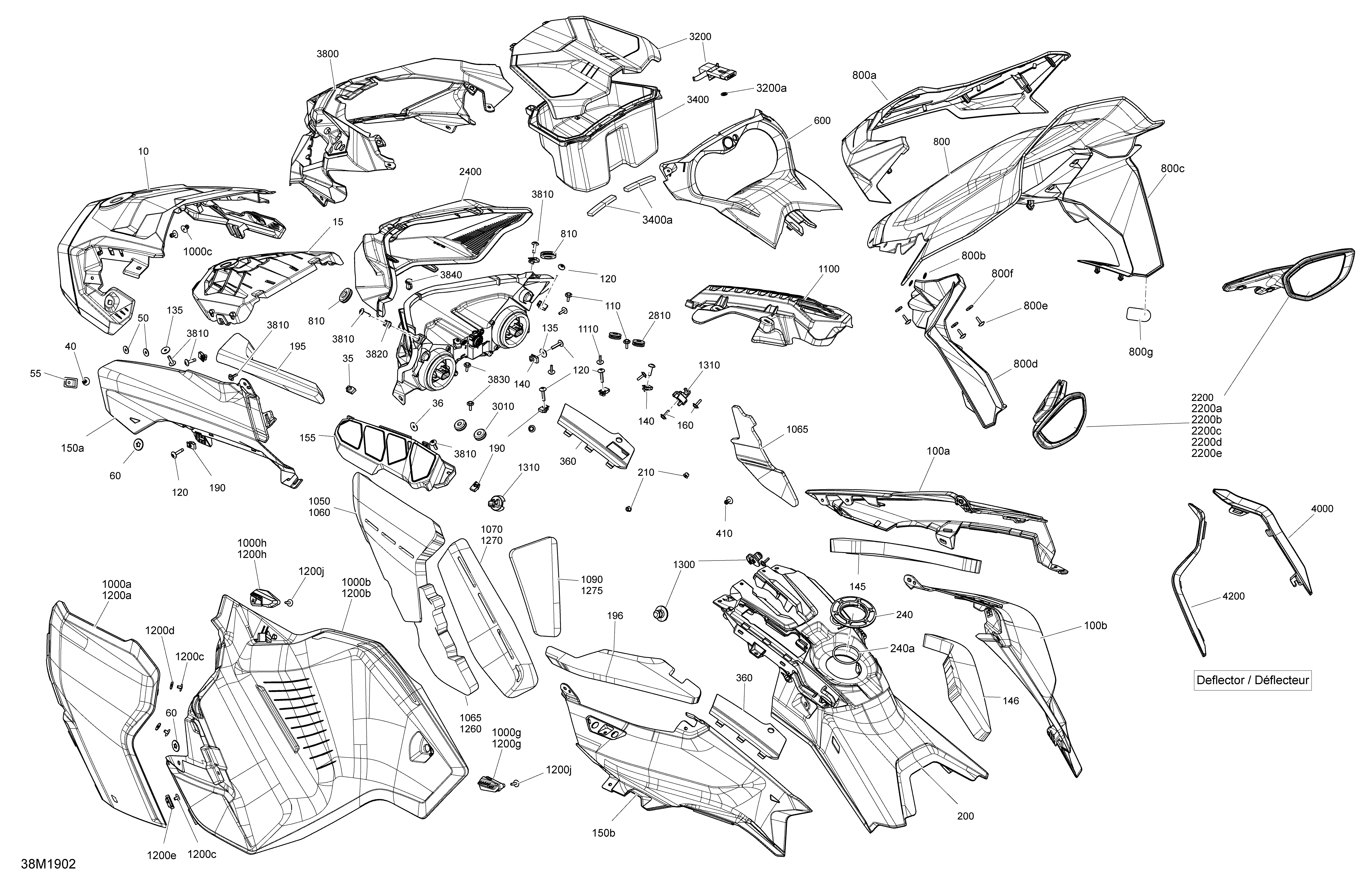

09- Hood для BRP Ski-Doo 001 - GRAND TOURING 600R E-TEC - 2019
-
№АртикулНазвание
-
10517306288 Deep Black, Center HoodDeep Black, Center Hood
-
35250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
36250200166 WasherWasher
-
40293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
50517124300 WasherWasher
-
55517305109 Rivet PlateRivet Plate
-
60508000853 Push NutPush Nut
-
100a517306854 RH Front HoodRH Front Hood
-
100b517306855 RH Rear HoodRH Rear Hood
-
110250000725 Screw M4 X 16Screw M4 X 16
-
120250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
135250200166 WasherWasher
-
140250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
145517305763 RH Front Hood FoamRH Front Hood Foam
-
146517306001 RH Hood FoamRH Hood Foam
-
150a517306856 LH Front HoodLH Front Hood
-
150b517306857 LH Rear HoodLH Rear Hood
-
155517306690 LH Hood TrimLH Hood Trim
-
160250000725 Screw M4 X 16Screw M4 X 16
-
190250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
195517305764 LH Front Hood FoamLH Front Hood Foam
-
196517306002 LH Hood FoamLH Hood Foam
-
200517306830 Rear ConsoleRear Console
-
210233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
240517306602 Console NutConsole Nut
-
240a706002839 O-RingO-Ring
-
360517306582 LH Front ConsoleLH Front Console
-
600517306812 Indicator SupportIndicator Support
-
800517306899 Windshield 585 MM Ass'y. Includes 800 to 800gWindshield 585 MM Ass'y. Includes 800 to 800g
-
800a517306183 Deep Black, Windshield SupportDeep Black, Windshield Support
-
800b732610072 Push NutPush Nut
-
800c517306184 RH Air DeflectorRH Air Deflector
-
800d517306185 LH Air DeflectorLH Air Deflector
-
800e250000889 Screw M4 X 16Screw M4 X 16
-
800f250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
800g516009227 DecalDecal
-
810517303756 GrommetGrommet
-
1000a517306668 RH Front PanelRH Front Panel
-
1000b517306671 RH Rear PanelRH Rear Panel
-
1000c293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000g517305773 RH Rear LatchRH Rear Latch
-
1000h517305979 RH Front LatchRH Front Latch
-
1060517306461 FoamFoam
-
1065517306495 FoamFoam
-
1070517306462 FoamFoam
-
1090517306915 FoamFoam
-
1100517306307 GrillGrill
-
1110250000725 Screw M4 X 16Screw M4 X 16
-
1200a517306670 LH Front PanelLH Front Panel
-
1200b517306296 LH Rear PanelLH Rear Panel
-
1200c293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200d517124300 WasherWasher
-
1200e517305109 Rivet PlateRivet Plate
-
1200g517305774 LH Rear LatchLH Rear Latch
-
1200h517305980 LH Front LatchLH Front Latch
-
1250517306463 FoamFoam
-
1260517306464 FoamFoam
-
1270517306465 FoamFoam
-
1275517306496 FoamFoam
-
1300517305985 Rear StudRear Stud
-
1310517305988 Front StudFront Stud
-
2200517306490 Rearview Mirror Kit. Includes 2200 to 2200eRearview Mirror Kit. Includes 2200 to 2200e
-
2200a250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
2200b250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
2200c250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
2200d232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
2200e250000732 Torx Screw NylonTorx Screw Nylon
-
2400517305752 HeadlampHeadlamp
-
2810517302841 GrommetGrommet
-
3010517302841 GrommetGrommet
-
3200517305871 Deep Black, Cover Ass'y. Includes 3200 to 3200aDeep Black, Cover Ass'y. Includes 3200 to 3200a
-
3200a732610072 Push NutPush Nut
-
3400517306058 Trunk Ass'y. Includes 3400 to 3400aTrunk Ass'y. Includes 3400 to 3400a
-
3400a517305157 Seal JointSeal Joint
-
3800517306301 Headlamp FairingHeadlamp Fairing
-
3810250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3820250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3830250000725 Screw M4 X 16Screw M4 X 16
-
3840293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4000517306356 RH Panel DeflectorRH Panel Deflector
-
4200517306357 LH Panel DeflectorLH Panel Deflector
