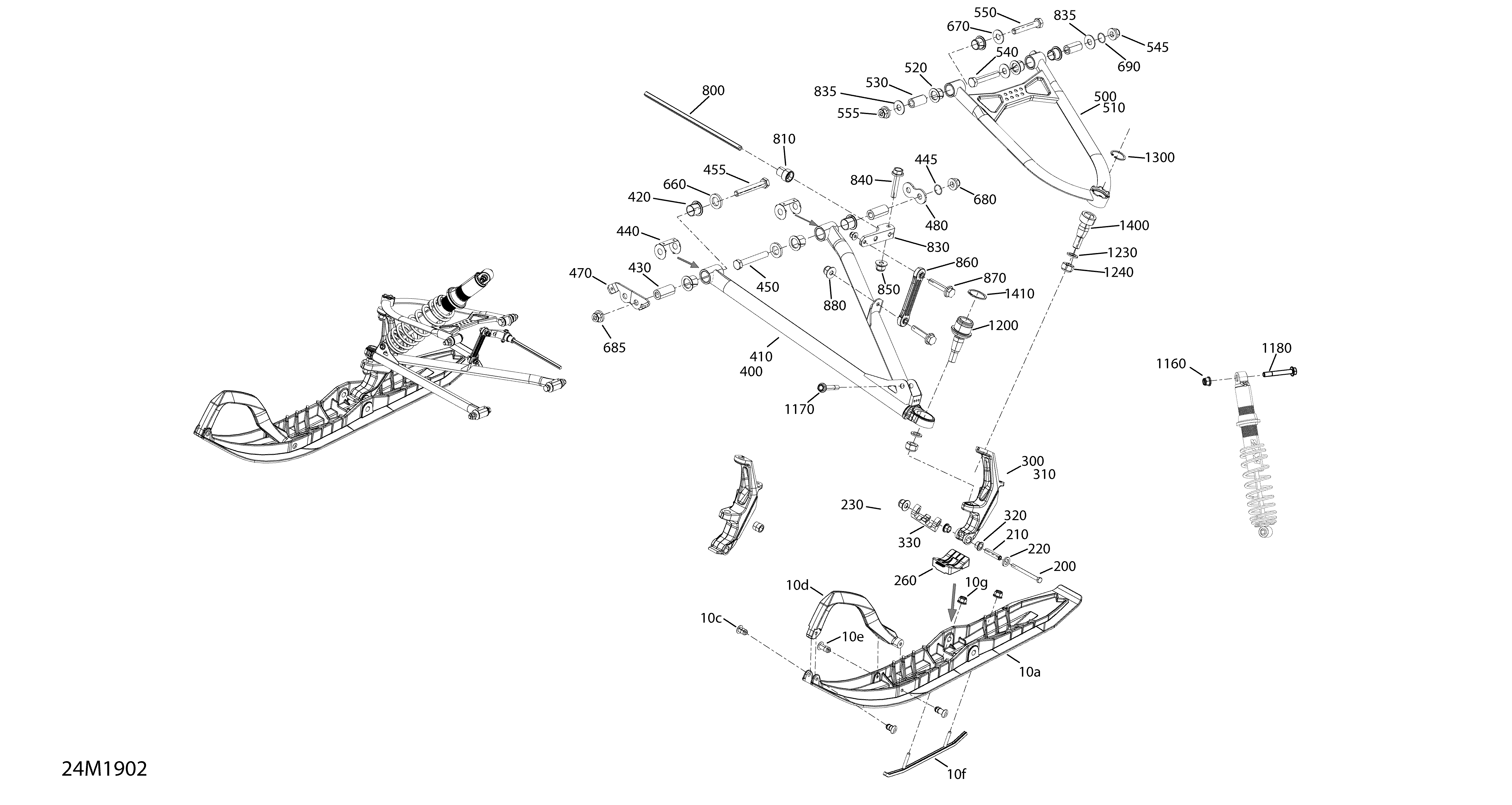

07- Front Suspension And Ski - 600R ETEC для BRP Ski-Doo 001 - GRAND TOURING 600R E-TEC - 2019

№

Артикул

Название
10a

505072443 Pilot SL Ski Ass'y

Pilot SL Ski Ass'y

11 160 ₽
10c

505071812 Retainer 17mm long

Retainer 17mm long

1 490 ₽
10d

505071556 Full Moon Handle

Full Moon Handle

11 450 ₽
10e

505072133 Retainer 23mm Long

Retainer 23mm Long

2 490 ₽
10f

860201043 Round Carbide Runner

Round Carbide Runner

7 360 ₽
10g

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
200

250000703 Hex. Screw M10 X 130

Hex. Screw M10 X 130

3 610 ₽
210

505073691 Ski Axle

Ski Axle

3 100 ₽
220

503192496 Washer

Washer

280 ₽
230

233201464 Hex. Elast. Flanged Nut M10 x 1.5

Hex. Elast. Flanged Nut M10 x 1.5

2 650 ₽
260

505072594 Ski Stopper

Ski Stopper

10 660 ₽
300

505074515 Deep Black, LH Ski Leg

Deep Black, LH Ski Leg

20 800 ₽
310

505074516 Deep Black, RH Ski Leg

Deep Black, RH Ski Leg

18 810 ₽
320

505072690 Leg Bushing

Leg Bushing

6 510 ₽
330

505073779 Leg Stopper

Leg Stopper

1 070 ₽
400

505074194 RH Lower Arm 42''

RH Lower Arm 42''

21 260 ₽
410

505074193 LH Lower Arm 42''

LH Lower Arm 42''

80 150 ₽
420

505072208 Bushing

Bushing

1 790 ₽
430

505072209 Sleeve

Sleeve

8 330 ₽
440

505072634 Wear Plate

Wear Plate

1 470 ₽
445

505072448 O-Ring

O-Ring

750 ₽
450

250001024 Screw Hex. M10 X 70

Screw Hex. M10 X 70

1 110 ₽
455

250001024 Screw Hex. M10 X 70

Screw Hex. M10 X 70

1 110 ₽
470

505073723 Wear Plate

Wear Plate

1 930 ₽
480

505073844 Plate

Plate

720 ₽
500

505073724 LH Upper Arm 42''

LH Upper Arm 42''

44 280 ₽
510

505073728 RH Upper Arm 42''

RH Upper Arm 42''

15 750 ₽
520

505072250 Bushing

Bushing

1 790 ₽
530

505072143 Sleeve

Sleeve

6 580 ₽
540

250001023 Screw Hex. M10 X 60

Screw Hex. M10 X 60

740 ₽
545

250100165 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

310 ₽
550

250001023 Screw Hex. M10 X 60

Screw Hex. M10 X 60

740 ₽
555

250100165 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

310 ₽
660

503189564 Washer

Washer

250 ₽
670

505072392 Washer

Washer

1 540 ₽
680

250100165 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

310 ₽
685

250100165 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

310 ₽
690

505072448 O-Ring

O-Ring

750 ₽
800

505074326 Stabilisator

Stabilisator

5 610 ₽
810

505072445 Bushing

Bushing

1 930 ₽
830

505074327 Stabilisator Lever

Stabilisator Lever

610 ₽
835

505072392 Washer

Washer

1 540 ₽
840

207663056 Hex Flanged Screw M6 X 1.0 X 30

Hex Flanged Screw M6 X 1.0 X 30

410 ₽
850

233261466 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

1 470 ₽
860

505072204 Sway Bar Double Joint Link

Sway Bar Double Joint Link

1 520 ₽
870

207663056 Hex Flanged Screw M6 X 1.0 X 30

Hex Flanged Screw M6 X 1.0 X 30

410 ₽
880

233261466 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

1 470 ₽
1160

233281416 Hex. Elastic Flanged Nut M8

Hex. Elastic Flanged Nut M8

540 ₽
1170

250000824 Hexagonal Flange Screw M8 X 58

Hexagonal Flange Screw M8 X 58

740 ₽
1180

250000824 Hexagonal Flange Screw M8 X 58

Hexagonal Flange Screw M8 X 58

740 ₽
1200

505074009 Ball Joint

Ball Joint

9 200 ₽
1230

503192491 Washer

Washer

1 590 ₽
1240

232521464 Hex Elastic Nut M12 X 1.25

Hex Elastic Nut M12 X 1.25

740 ₽
1300

293370070 Circlip

Circlip

2 490 ₽
1400

505072913 Upper Ball Joint

Upper Ball Joint

37 100 ₽
1410

293370098 Snap Ring

Snap Ring

1 120 ₽
3000

224061201 Flat Washer. Not Shown

Flat Washer. Not Shown

460 ₽
3010

503192771 Black, Wheel Cap. Not Shown

Black, Wheel Cap. Not Shown

1 630 ₽
3020

503192496 Washer. Not Shown

Washer. Not Shown

280 ₽
3030

233201464 Hex. Elast. Flanged Nut M10 x 1.5. Not Shown

Hex. Elast. Flanged Nut M10 x 1.5. Not Shown

2 650 ₽
3040

505072594 Ski Stopper. Not Shown

Ski Stopper. Not Shown

10 660 ₽
3050

233201464 Hex. Elast. Flanged Nut M10 x 1.5. Not Shown

Hex. Elast. Flanged Nut M10 x 1.5. Not Shown

2 650 ₽
