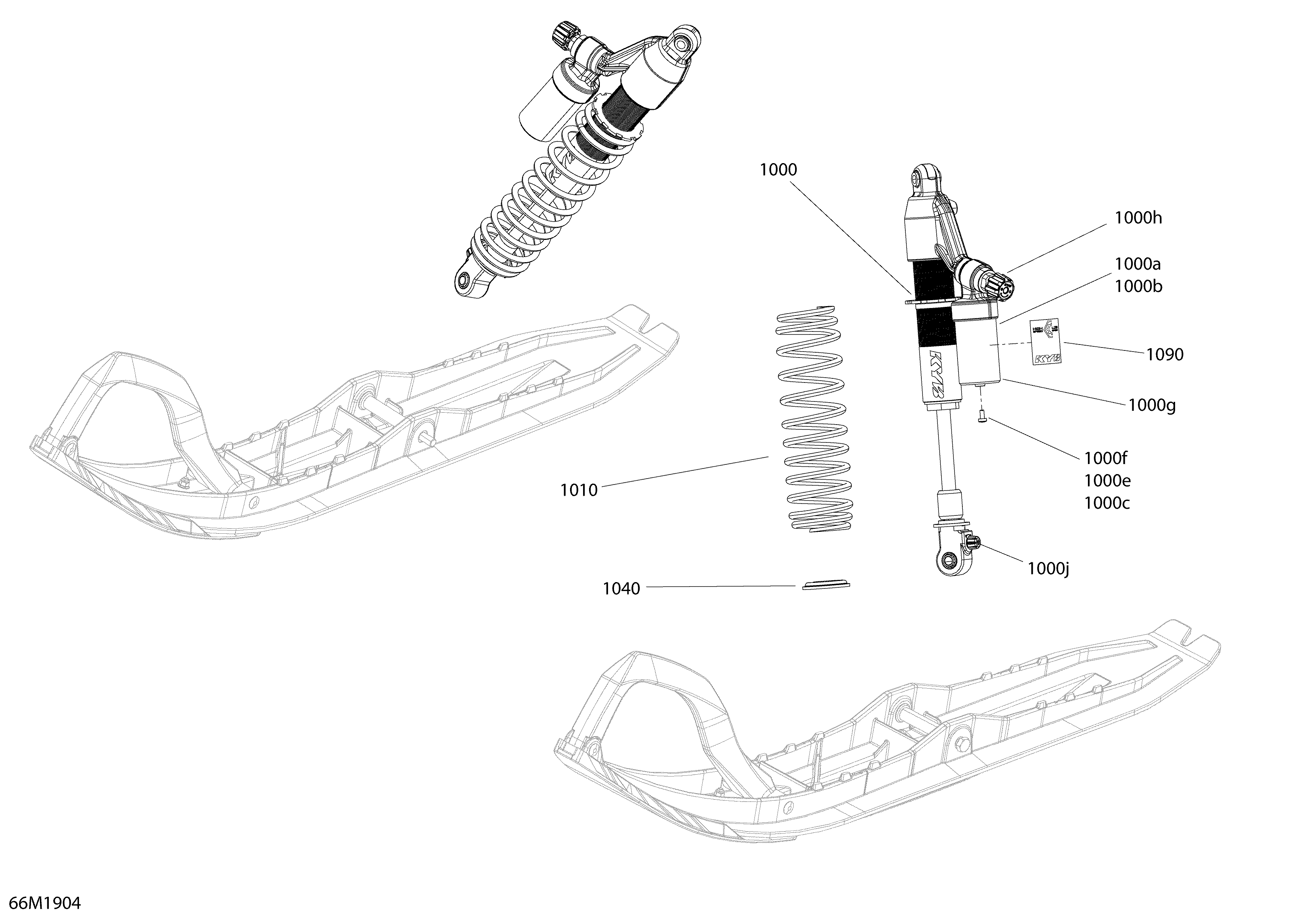

07- Front Shocks - XRS Iron Dog для BRP Ski-Doo 002 - MXZ 600R E-TEC - 2019
-
№АртикулНазвание
-
1000505074061 RH Front Shock. Includes 1000 to 1000jRH Front Shock. Includes 1000 to 1000j
-
1000505074062 LH Front Shock. Includes 1000 to 1000jLH Front Shock. Includes 1000 to 1000j
-
1000a415093807 O-RingO-Ring
-
1000b415093806 Piston RingPiston Ring
-
1000c505070398 Air ValveAir Valve
-
1000e505070400 O-RingO-Ring
-
1000f505070399 ScrewScrew
-
1000g415093804 O-RingO-Ring
-
1000h503193033 Shock Adjuster KnobShock Adjuster Knob
-
1000j505072753 Adjustment KnobAdjustment Knob
-
1010505074047 Deep Black, SpringDeep Black, Spring
-
1040503194270 Spring StopperSpring Stopper
-
1090516005534 Shock Adjustment DecalShock Adjustment Decal
