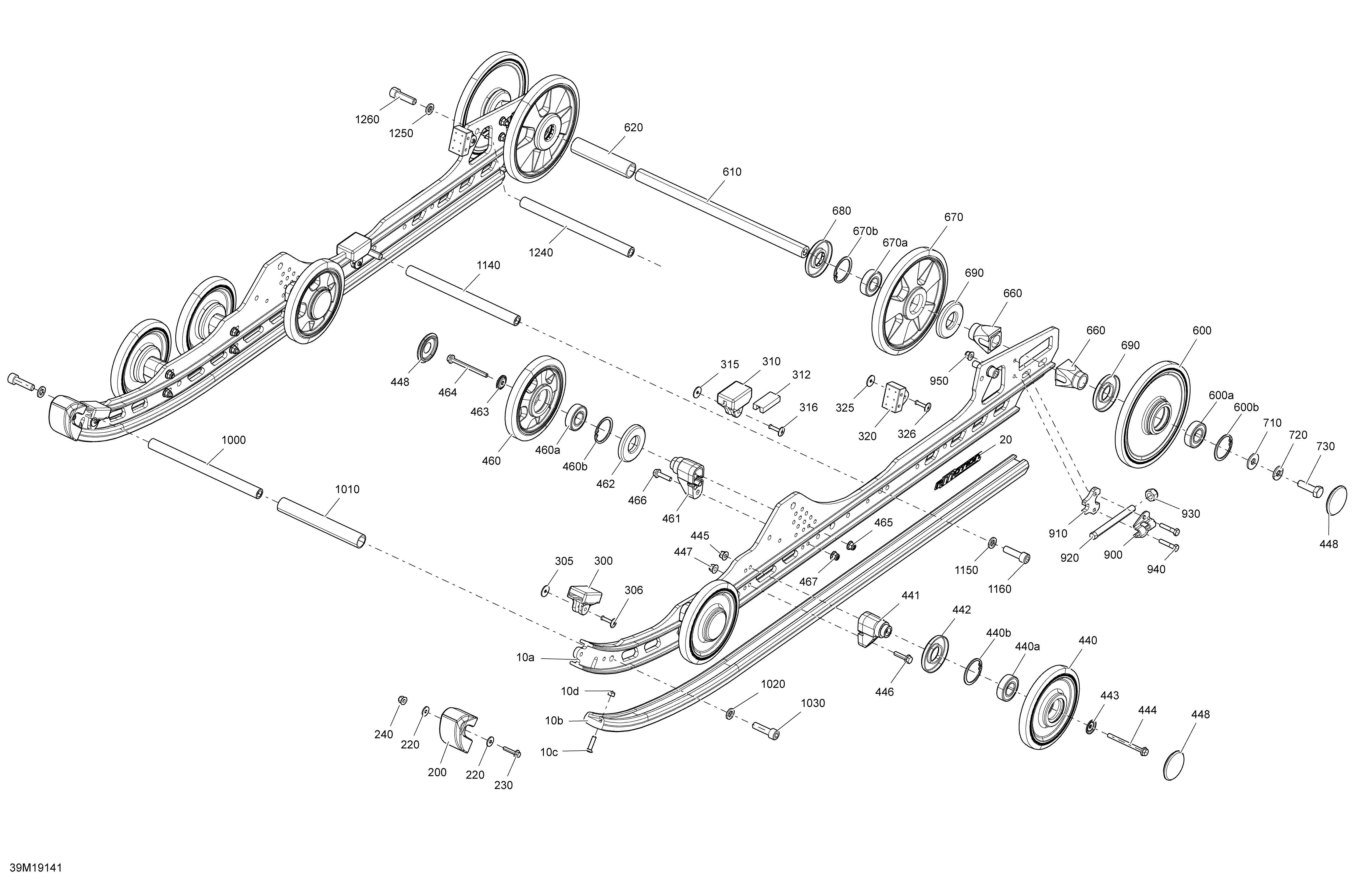

08- Rear Suspension - Lower Section для BRP Ski-Doo 002 - MXZ 600R E-TEC - 2019
-
№АртикулНазвание
-
10a503193901 Black, Runner 128''. Deep Black. Includes 10a to 10bBlack, Runner 128''. Deep Black. Includes 10a to 10b
-
10a503194156 Yellow, Runner 128''. Sunburst Yellow. Includes 10a to 10bYellow, Runner 128''. Sunburst Yellow. Includes 10a to 10b
-
10a503193902 Bare, Runner 128''. No painting. Includes 10a to 10bBare, Runner 128''. No painting. Includes 10a to 10b
-
10b503193962 Slider 128''Slider 128''
-
10c208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
10d232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
20516007816 Runner DecalRunner Decal
-
200503192530 Slide ProtectorSlide Protector
-
220250200140 WasherWasher
-
230207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
240233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
300503190576 Rubber StopperRubber Stopper
-
305503191273 WasherWasher
-
306293150224 Rivet Pop 3/16Rivet Pop 3/16
-
310503193717 Stopper Rubber Ass'y. Includes 310 to 310aStopper Rubber Ass'y. Includes 310 to 310a
-
310a572084800 Reinforcement StopperReinforcement Stopper
-
315503191273 WasherWasher
-
316293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
320503192750 Rubber Stopper. Package XRS Iron DogRubber Stopper. Package XRS Iron Dog
-
325503191273 Washer. Package XRS Iron DogWasher. Package XRS Iron Dog
-
326293150224 Rivet Pop 3/16. Package XRS Iron DogRivet Pop 3/16. Package XRS Iron Dog
-
440503191316 Black - Wheel Ass'y 141 mm. Packages XRS & XRS Iron Dog. Includes 440 to 440bBlack - Wheel Ass'y 141 mm. Packages XRS & XRS Iron Dog. Includes 440 to 440b
-
440503193477 Black - Wheel Ass'y 141 mm. Except Packages XRS Iron Dog & XRS. Includes 440 to 440bBlack - Wheel Ass'y 141 mm. Except Packages XRS Iron Dog & XRS. Includes 440 to 440b
-
440a503190396 Ball BearingBall Bearing
-
440b415129371 Retaining RingRetaining Ring
-
441503193894 Casted SupportCasted Support
-
442503190434 Labyrinth SealLabyrinth Seal
-
443503191820 Wheel Cup M6Wheel Cup M6
-
444250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
445233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
446250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
447233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
448503192771 Black, Wheel CapBlack, Wheel Cap
-
460503192794 Black - Wheel Ass'y 141 mm. Includes 460 to 460bBlack - Wheel Ass'y 141 mm. Includes 460 to 460b
-
460a503190396 Ball BearingBall Bearing
-
460b415129371 Retaining RingRetaining Ring
-
461503193894 Casted SupportCasted Support
-
462503190434 Labyrinth SealLabyrinth Seal
-
463503191820 Wheel Cup M6Wheel Cup M6
-
464250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
465233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
466250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
467233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
468503192771 Black, Wheel CapBlack, Wheel Cap
-
600503191491 Wheel 180. Package XRS Iron Dog. Includes 600 to 600aWheel 180. Package XRS Iron Dog. Includes 600 to 600a
-
600503192766 Black - Wheel Ass'y 180 mm. Except Packages XRS Iron Dog & XRS. Includes 600 to 600aBlack - Wheel Ass'y 180 mm. Except Packages XRS Iron Dog & XRS. Includes 600 to 600a
-
600503194202 Black - Wheel Ass'y 180 mm. Packages XRS. Includes 600 to 600bBlack - Wheel Ass'y 180 mm. Packages XRS. Includes 600 to 600b
-
600a293350115 Ball Bearing. Package XRS Iron DogBall Bearing. Package XRS Iron Dog
-
600a503190396 Ball Bearing. Except Packages XRS Iron Dog & XRSBall Bearing. Except Packages XRS Iron Dog & XRS
-
600a503190396 Ball Bearing. Package XRSBall Bearing. Package XRS
-
600b415129371 Retaining Ring. Packages XRS & XRS Iron DogRetaining Ring. Packages XRS & XRS Iron Dog
-
610503167900 Rear Axle. Package XRS Iron DogRear Axle. Package XRS Iron Dog
-
610503190429 Rear Axle. Packages XRS & XRS Iron DogRear Axle. Packages XRS & XRS Iron Dog
-
610503190429 Rear Axle. Except Packages XRS Iron Dog & XRSRear Axle. Except Packages XRS Iron Dog & XRS
-
620503156000 Center Spacer. Package XRS Iron DogCenter Spacer. Package XRS Iron Dog
-
620503190430 Spacer. Except Packages XRS Iron Dog & XRSSpacer. Except Packages XRS Iron Dog & XRS
-
620503191263 Rear Spacer. Packages XRS & XRS Iron DogRear Spacer. Packages XRS & XRS Iron Dog
-
660503189809 Outer Spacer. Package XRS Iron DogOuter Spacer. Package XRS Iron Dog
-
660503190428 Rear Wheel Spacer. Except Packages XRS Iron Dog & XRSRear Wheel Spacer. Except Packages XRS Iron Dog & XRS
-
660503190428 Rear Wheel Spacer. Packages XRS & XRS Iron DogRear Wheel Spacer. Packages XRS & XRS Iron Dog
-
670503191491 Wheel 180. Package XRS Iron Dog. Includes 670 to 670aWheel 180. Package XRS Iron Dog. Includes 670 to 670a
-
670503194050 Black - Wheel Ass'y 180 mm. Except Packages XRS Iron Dog. Includes 670 to 670bBlack - Wheel Ass'y 180 mm. Except Packages XRS Iron Dog. Includes 670 to 670b
-
670a293350115 Ball Bearing. Package XRS Iron DogBall Bearing. Package XRS Iron Dog
-
670a503190396 Ball Bearing. Except Package XRS Iron DogBall Bearing. Except Package XRS Iron Dog
-
670b415129371 Retaining Ring. Except Package XRS Iron DogRetaining Ring. Except Package XRS Iron Dog
-
680503190682 Labyrinth Seal. Except Package XRS Iron DogLabyrinth Seal. Except Package XRS Iron Dog
-
690503190434 Labyrinth Seal. Except Package XRS Iron DogLabyrinth Seal. Except Package XRS Iron Dog
-
710503183300 Washer. Package XRS Iron DogWasher. Package XRS Iron Dog
-
710503191910 Washer. Except Package XRS Iron DogWasher. Except Package XRS Iron Dog
-
720234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
730250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
900503192583 Tensioner. Except Package XRS Iron DogTensioner. Except Package XRS Iron Dog
-
900503193808 Tensioner. Package XRS Iron DogTensioner. Package XRS Iron Dog
-
910503193250 Spacer. Except Package XRS Iron DogSpacer. Except Package XRS Iron Dog
-
920230100054 Hex Screw M10 x 100. Except Package XRS Iron DogHex Screw M10 x 100. Except Package XRS Iron Dog
-
920230100054 Hex Screw M10 x 100. Package XRS Iron DogHex Screw M10 x 100. Package XRS Iron Dog
-
930233601466 Elastic Locking Nut M10. Package XRS Iron DogElastic Locking Nut M10. Package XRS Iron Dog
-
930233601466 Elastic Locking Nut M10. Except Package XRS Iron DogElastic Locking Nut M10. Except Package XRS Iron Dog
-
940207063054 Hex. Cap Screw M6 X 30. Except Package XRS Iron DogHex. Cap Screw M6 X 30. Except Package XRS Iron Dog
-
940207562054 Flanged Hex. Screw S.GRIP M6 X 20. Package XRS Iron DogFlanged Hex. Screw S.GRIP M6 X 20. Package XRS Iron Dog
-
950233261466 Hex. Flanged Elastic Nut M6. Except Package XRS Iron DogHex. Flanged Elastic Nut M6. Except Package XRS Iron Dog
-
1140503191260 Axle StrapAxle Strap
-
1150503192496 WasherWasher
-
1160205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
1250503192496 WasherWasher
-
1260205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
