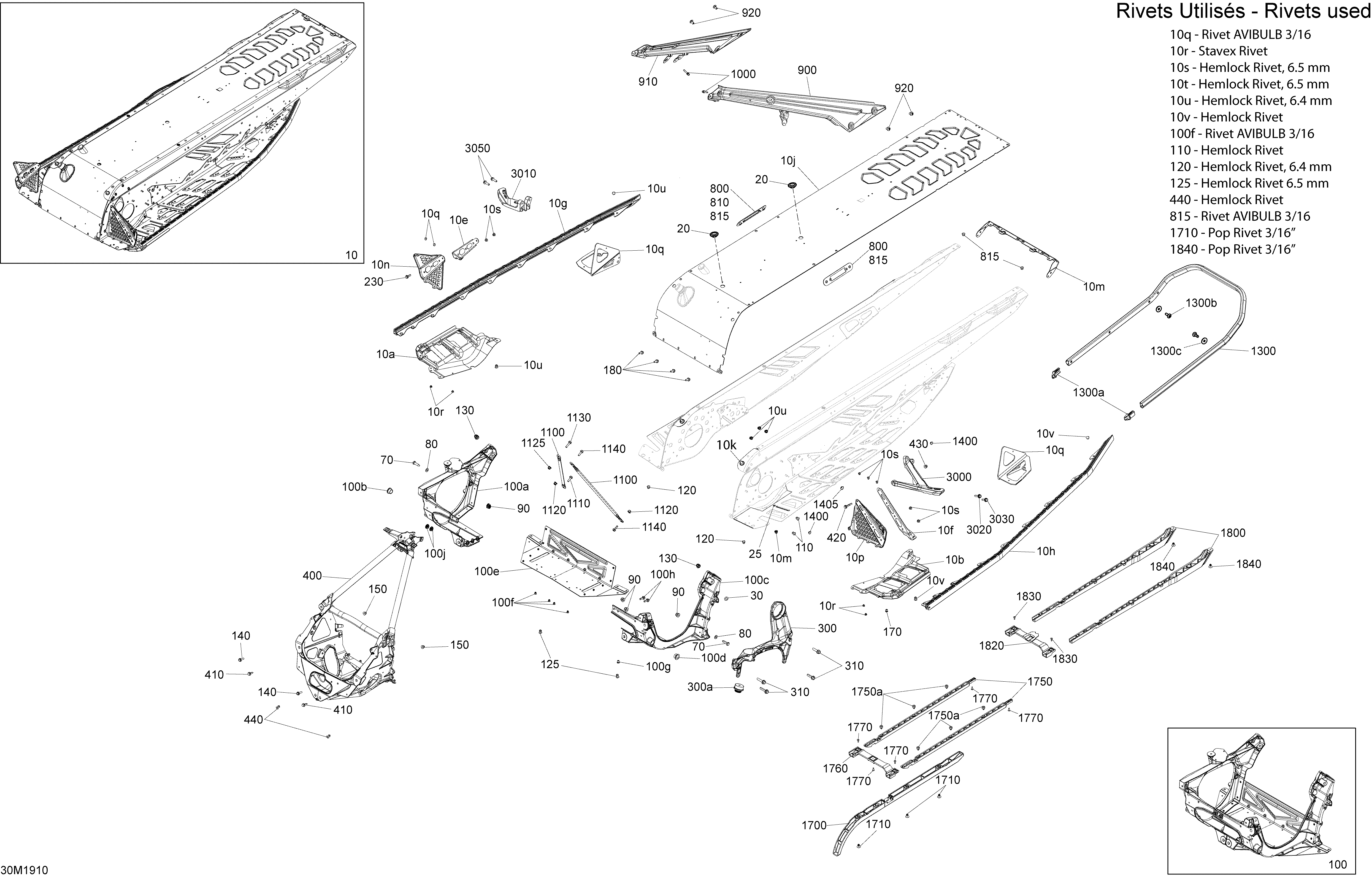

09- Frame для BRP Ski-Doo 002 - MXZ 600R E-TEC - 2019

№

Артикул

Название
10

415130234 Black, Chassis Tunnel Module 129''. Packages TNT & X - Deep Black Frame. Includes 10 to 10v

Black, Chassis Tunnel Module 129''. Packages TNT & X - Deep Black Frame. Includes 10 to 10v

226 440 ₽
10

415130235 Module Chassis Tunnel 129''. Packages Blizzard & X - Hyper Silver Frame. Includes 10 to 10v

Module Chassis Tunnel 129''. Packages Blizzard & X - Hyper Silver Frame. Includes 10 to 10v

253 460 ₽
10

415130236 Module Chassis Tunnel 129''. Packages XRS & XRS Iron Dog - Deep Black Frame. Includes 10 to 10v

Module Chassis Tunnel 129''. Packages XRS & XRS Iron Dog - Deep Black Frame. Includes 10 to 10v

246 330 ₽
10

415130237 Module Chassis Tunnel 129''. Package XRS - Hyper Silver Frame. Includes 10 to 10v

Module Chassis Tunnel 129''. Package XRS - Hyper Silver Frame. Includes 10 to 10v

253 460 ₽
10a

518330738 Deep Black, RH Footrest Reinforcement

Deep Black, RH Footrest Reinforcement

7 190 ₽
10b

518330737 Deep Black, LH Footrest Reinforcement

Deep Black, LH Footrest Reinforcement

7 120 ₽
10c

518329878 RH Suspension Bracket

RH Suspension Bracket

1 640 ₽
10d

518329877 LH Suspension Bracket

LH Suspension Bracket

1 640 ₽
10e

518330072 RH Footrest Reinforcement

RH Footrest Reinforcement

1 640 ₽
10f

518329049 LH Footrest Reinforcement

LH Footrest Reinforcement

1 490 ₽
10g

518328451 RH Roller. Packages Blizzard, TNT & X

RH Roller. Packages Blizzard, TNT & X

15 900 ₽
10g

518329023 RH Roller. Packages XRS & XRS Iron Dog

RH Roller. Packages XRS & XRS Iron Dog

15 900 ₽
10h

518328452 LH Roller. Packages Blizzard, TNT & X

LH Roller. Packages Blizzard, TNT & X

15 900 ₽
10h

518329024 LH Roller. Packages XRS & XRS Iron Dog

LH Roller. Packages XRS & XRS Iron Dog

15 900 ₽
10j

415130268 Kit Radiator Tunnel 129 Inch Weld

Kit Radiator Tunnel 129 Inch Weld

54 050 ₽
10k

250300027 Clinch Stud M6 X 20

Clinch Stud M6 X 20

200 ₽
10m

518328990 Rear Cap

Rear Cap

7 110 ₽
10n

518328460 RH Footrest

RH Footrest

3 590 ₽
10p

518328463 LH Footrest

LH Footrest

3 560 ₽
10q

293150203 Rivet AVIBULB 3/16

Rivet AVIBULB 3/16

690 ₽
10r

293150144 Stavex Rivet

Stavex Rivet

310 ₽
10s

293150096 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm

1 200 ₽
10t

293150119 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm

1 540 ₽
10u

293150174 Hemlock Rivet, 6.4 mm

Hemlock Rivet, 6.4 mm

2 320 ₽
10v

293150147 Hemlock Rivet

Hemlock Rivet

1 430 ₽
20

293730052 Black, Plug

Black, Plug

2 160 ₽
25

250100199 Insert Half Hex Body M6 x 1.0

Insert Half Hex Body M6 x 1.0

1 360 ₽
30

506151252 Washer

Washer

1 120 ₽
70

250000942 Hex Screw M8 X 30

Hex Screw M8 X 30

390 ₽
80

234081410 Flat Washer 8 mm

Flat Washer 8 mm

310 ₽
90

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
100

518330636 Engine Chassis Module Ass'y. Includes 100 to 100j

Engine Chassis Module Ass'y. Includes 100 to 100j

60 380 ₽
100a

518330554 Side Member RH Assy. Includes 100a to 100b

Side Member RH Assy. Includes 100a to 100b

18 500 ₽
100b

505073317 Leg Cushion

Leg Cushion

560 ₽
100c

518330557 Side Member LH Assy. Includes 100c to 100d

Side Member LH Assy. Includes 100c to 100d

54 430 ₽
100d

505073317 Leg Cushion

Leg Cushion

560 ₽
100e

518330074 Bottom Plate

Bottom Plate

2 930 ₽
100f

293150203 Rivet AVIBULB 3/16

Rivet AVIBULB 3/16

690 ₽
100g

293450268 Insert M5 X 0.8

Insert M5 X 0.8

740 ₽
100h

207662046 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

740 ₽
100j

233261414 Hex. Flanged Elastic Nut M6 x 1.0

Hex. Flanged Elastic Nut M6 x 1.0

490 ₽
110

293150147 Hemlock Rivet

Hemlock Rivet

1 430 ₽
120

293150174 Hemlock Rivet, 6.4 mm

Hemlock Rivet, 6.4 mm

2 320 ₽
125

293150120 Hemlock Rivet 6.5 mm

Hemlock Rivet 6.5 mm

2 410 ₽
130

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
140

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
150

233261414 Hex. Flanged Elastic Nut M6 x 1.0

Hex. Flanged Elastic Nut M6 x 1.0

490 ₽
170

293450268 Insert M5 X 0.8

Insert M5 X 0.8

740 ₽
180

207661644 Hex. Flanged Screw M6 X 16

Hex. Flanged Screw M6 X 16

270 ₽
230

207562034 Hex. Flanged Screw M6 X 20, Scotch Grip

Hex. Flanged Screw M6 X 20, Scotch Grip

740 ₽
300

518328693 Brace Ass'y. Includes 300 to 300a

Brace Ass'y. Includes 300 to 300a

25 190 ₽
300a

512060295 Rubber Mount

Rubber Mount

28 770 ₽
310

250001060 Screw-Pan HD.Torx M8X30

Screw-Pan HD.Torx M8X30

310 ₽
400

518330573 S Module

S Module

56 350 ₽
410

250001051 Screw-Forming Hex.HD.FL. M6 X 16

Screw-Forming Hex.HD.FL. M6 X 16

460 ₽
420

207663544 Hex. Flanged Screw M6 X 35

Hex. Flanged Screw M6 X 35

320 ₽
430

233261414 Hex. Flanged Elastic Nut M6 x 1.0

Hex. Flanged Elastic Nut M6 x 1.0

490 ₽
440

293150147 Hemlock Rivet

Hemlock Rivet

1 430 ₽
800

518329480 Member Fixation Plate

Member Fixation Plate

870 ₽
800

518330299 LH Member Fixation Plate

LH Member Fixation Plate

1 380 ₽
810

518330300 RH Member Fixation Plate

RH Member Fixation Plate

1 330 ₽
815

293150203 Rivet AVIBULB 3/16

Rivet AVIBULB 3/16

690 ₽
900

518329077 Black, LH Member. Black Item

Black, LH Member. Black Item

8 730 ₽
900

518330877 Left Member Grey Assembly. Silver Item

Left Member Grey Assembly. Silver Item

8 480 ₽
910

518330880 Right Member Black Assembly. Black Item

Right Member Black Assembly. Black Item

36 790 ₽
910

518330881 Right Member Grey Assembly. Silver Item

Right Member Grey Assembly. Silver Item

0 ₽
920

250000887 Pan Head Torx Screw M8 X 12

Pan Head Torx Screw M8 X 12

180 ₽
1000

250300629 Stud M5 X 20

Stud M5 X 20

200 ₽
1100

518329974 Upper Colomn Support

Upper Colomn Support

1 840 ₽
1110

207562034 Hex. Flanged Screw M6 X 20, Scotch Grip

Hex. Flanged Screw M6 X 20, Scotch Grip

740 ₽
1120

233261414 Hex. Flanged Elastic Nut M6 x 1.0

Hex. Flanged Elastic Nut M6 x 1.0

490 ₽
1125

233261416 Elastic Flanged Nut M6 X 1.0

Elastic Flanged Nut M6 X 1.0

740 ₽
1130

207662544 Hex. Flanged Screw M6 X 25

Hex. Flanged Screw M6 X 25

240 ₽
1140

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
1300

518328745 Rear Bumper. Includes 1300 to 1300a

Rear Bumper. Includes 1300 to 1300a

10 700 ₽
1300a

520001612 Cap

Cap

740 ₽
1300b

250000779 Torx Screw M6 X 1.0 X 18, Scotch Grip. Not Shown

Torx Screw M6 X 1.0 X 18, Scotch Grip. Not Shown

740 ₽
1300c

224061201 Flat Washer. Not Shown

Flat Washer. Not Shown

460 ₽
1400

293730047 Black Dart 8 mm

Black Dart 8 mm

720 ₽
1405

293730060 Black Dart 10 mm

Black Dart 10 mm

420 ₽
1700

518329982 Front Protector

Front Protector

5 880 ₽
1710

293150108 Pop Rivet 3/16”

Pop Rivet 3/16”

370 ₽
1750

518329989 Rear Protector. Ice Cobra. Includes 1750 to 1750a

Rear Protector. Ice Cobra. Includes 1750 to 1750a

650 ₽
1750a

293830005 Rubber Bumper. Ice Cobra

Rubber Bumper. Ice Cobra

2 260 ₽
1760

518329981 Front Support Protector. Ice Cobra

Front Support Protector. Ice Cobra

710 ₽
1770

250000577 Torx Truss K40 X 12. Ice Cobra

Torx Truss K40 X 12. Ice Cobra

200 ₽
1800

518329979 Rear Protector. Ice Ripper XT & Ice Cobra

Rear Protector. Ice Ripper XT & Ice Cobra

2 520 ₽
1820

520001545 Support. Ice Ripper XT & Ice Cobra

Support. Ice Ripper XT & Ice Cobra

550 ₽
1830

250000577 Torx Truss K40 X 12. Ice Ripper XT & Ice Cobra

Torx Truss K40 X 12. Ice Ripper XT & Ice Cobra

200 ₽
1840

293150108 Pop Rivet 3/16”. Ice Ripper XT & Ice Cobra

Pop Rivet 3/16”. Ice Ripper XT & Ice Cobra

370 ₽
3000

518330358 Black Toe-hold

Black Toe-hold

7 740 ₽
3010

518329134 Toe Hold

Toe Hold

1 380 ₽
3020

250000793 Hex. Flanged Screw M6 X 25

Hex. Flanged Screw M6 X 25

200 ₽
3030

207562054 Flanged Hex. Screw S.GRIP M6 X 20

Flanged Hex. Screw S.GRIP M6 X 20

740 ₽
3050

210262550 Hex. Flanged Forming Screw M6 X 25

Hex. Flanged Forming Screw M6 X 25

180 ₽
