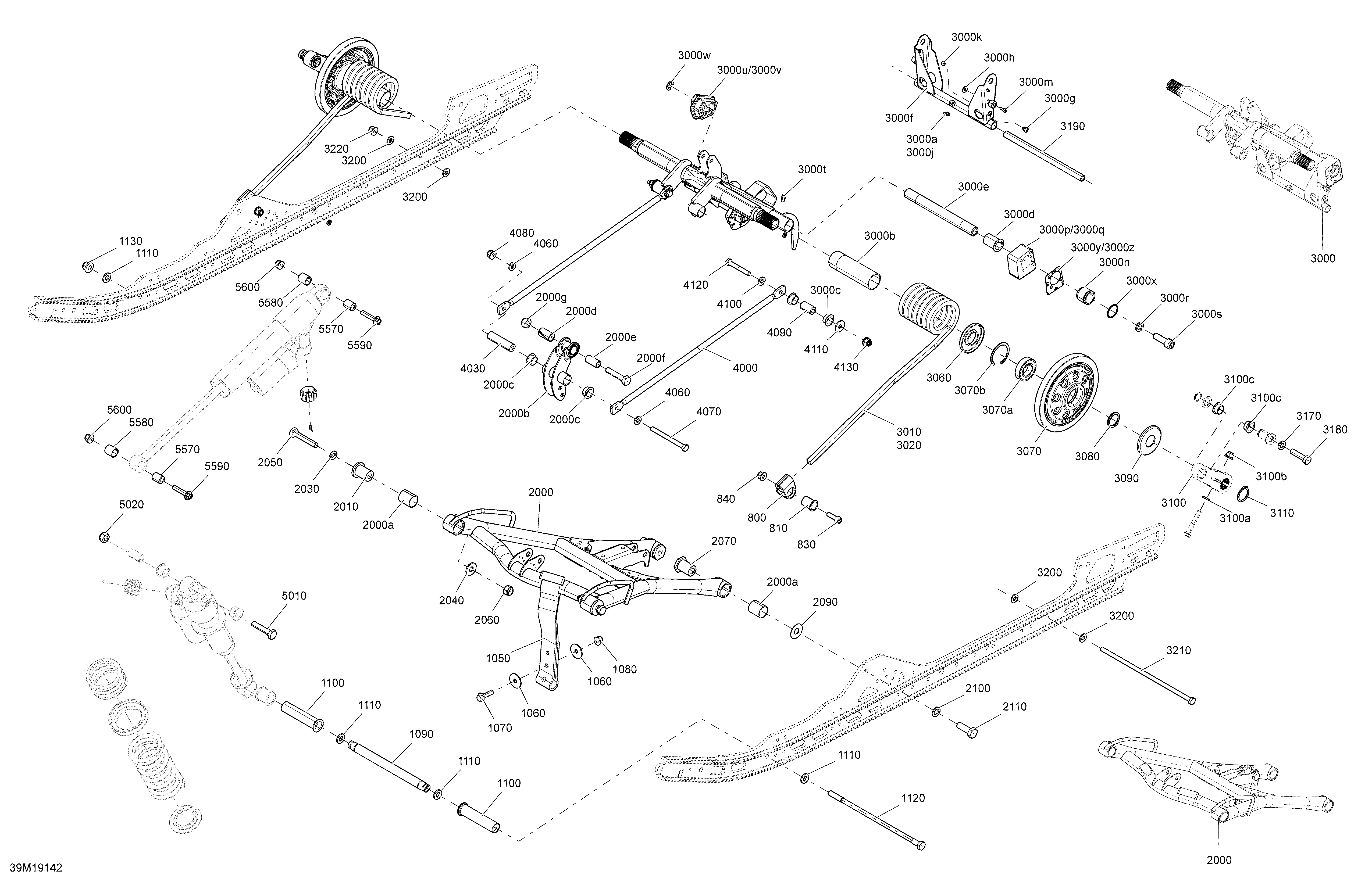

08- Rear Suspension - Upper Section для BRP Ski-Doo 002 - MXZ 600R E-TEC - 2019
-
№АртикулНазвание
-
800503191183 Spring SupportSpring Support
-
810503190754 Retainer CushionRetainer Cushion
-
830205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
840233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1050503192759 Stopper Strap. Package XRS Iron DogStopper Strap. Package XRS Iron Dog
-
1050503192759 Stopper Strap. Except Package XRS Iron DogStopper Strap. Except Package XRS Iron Dog
-
1060250200128 Flat Washer 8 mm. Package XRS Iron DogFlat Washer 8 mm. Package XRS Iron Dog
-
1060250200128 Flat Washer 8 mm. Except Package XRS Iron DogFlat Washer 8 mm. Except Package XRS Iron Dog
-
1070207683044 Hex. Flanged Screw M8 X 30. Package XRS Iron DogHex. Flanged Screw M8 X 30. Package XRS Iron Dog
-
1070207683044 Hex. Flanged Screw M8 X 30. Except Package XRS Iron DogHex. Flanged Screw M8 X 30. Except Package XRS Iron Dog
-
1080233281466 Elastic Flang Nut M8. Except Package XRS Iron DogElastic Flang Nut M8. Except Package XRS Iron Dog
-
1080233281466 Elastic Flang Nut M8. Package XRS Iron DogElastic Flang Nut M8. Package XRS Iron Dog
-
1090503193435 Pivot AxlePivot Axle
-
1100503191259 Center BushingCenter Bushing
-
1110250200143 Flat WasherFlat Washer
-
1120503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
1130233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
2000503194078 Front Arm. Package XRS Iron Dog. Includes 2000 to 2000gFront Arm. Package XRS Iron Dog. Includes 2000 to 2000g
-
2000503194529 Front Arm Ass'y. Except Package XRS Iron DogFront Arm Ass'y. Except Package XRS Iron Dog
-
2000a503191554 Bushing. Package XRS Iron DogBushing. Package XRS Iron Dog
-
2000b503194079 Rocker. Package XRS Iron DogRocker. Package XRS Iron Dog
-
2000c503191555 Swivel Bushing. Package XRS Iron DogSwivel Bushing. Package XRS Iron Dog
-
2000d503193037 Bushing. Package XRS Iron DogBushing. Package XRS Iron Dog
-
2000e503189282 Bushing. Package XRS Iron DogBushing. Package XRS Iron Dog
-
2000f207005044 Hex. Screw M10 X 1.5 X 50. Package XRS Iron DogHex. Screw M10 X 1.5 X 50. Package XRS Iron Dog
-
2000g233601416 Elastic Locking Nut M10 X 1.5. Package XRS Iron DogElastic Locking Nut M10 X 1.5. Package XRS Iron Dog
-
2010503190698 AxleAxle
-
2030503192496 WasherWasher
-
2040503191926 WasherWasher
-
2050207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
2060233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
2070503191966 Lower AxleLower Axle
-
2090503190656 WasherWasher
-
2100503192491 WasherWasher
-
2110250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
3000503193617 Rear Arm Ass'y. Without Quick Adjust System. Includes 3000 to 3000zRear Arm Ass'y. Without Quick Adjust System. Includes 3000 to 3000z
-
3000503193618 Rear Arm Ass'y. With Quick Adjust System. Includes 3000 to 3000wRear Arm Ass'y. With Quick Adjust System. Includes 3000 to 3000w
-
3000503193862 Rear Arm Ass?y. Package XRS Iron Dog. Includes 3000 to 3000zRear Arm Ass?y. Package XRS Iron Dog. Includes 3000 to 3000z
-
3000a232061404 Hexagonal Nut M6Hexagonal Nut M6
-
3000b503192767 BushingBushing
-
3000c503191555 Swivel BushingSwivel Bushing
-
3000d503191640 CushionCushion
-
3000e503192981 Lower Shaft. Except Package XRS Iron DogLower Shaft. Except Package XRS Iron Dog
-
3000e503193867 Lower Shaft. Package XRS Iron DogLower Shaft. Package XRS Iron Dog
-
3000f503192823 Pivot Arm Ass'y. Includes 3000f to 3000mPivot Arm Ass'y. Includes 3000f to 3000m
-
3000g390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3000h517225900 Flat WasherFlat Washer
-
3000j408200700 Grease FittingGrease Fitting
-
3000k232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
3000m205041060 Socket Head Screw M4X 10Socket Head Screw M4X 10
-
3000n503192749 Guide BlockGuide Block
-
3000p503192918 LH Cam BlockLH Cam Block
-
3000q503192919 RH Cam BlockRH Cam Block
-
3000r503192491 WasherWasher
-
3000s205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
3000t408200700 Grease FittingGrease Fitting
-
3000u503191565 LH Cam AdjusterLH Cam Adjuster
-
3000v503191566 RH Cam AdjusterRH Cam Adjuster
-
3000w293370013 E-CirclipE-Circlip
-
3000x503192921 O-Ring. Except QASO-Ring. Except QAS
-
3000y516004900 LH Block Sticker Decal. Except QASLH Block Sticker Decal. Except QAS
-
3000z516004901 RH Block Sticker Decal. Except QASRH Block Sticker Decal. Except QAS
-
3010503192105 Black, LH Spring Square. SKU - MZKN - MYKA - MYKBBlack, LH Spring Square. SKU - MZKN - MYKA - MYKB
-
3010503193158 Black, LH Spring Square. Except SKU - MZKN - MYKA - MYKBBlack, LH Spring Square. Except SKU - MZKN - MYKA - MYKB
-
3020503192104 Black, RH Spring Square. SKU - MZKN - MYKA - MYKBBlack, RH Spring Square. SKU - MZKN - MYKA - MYKB
-
3020503193159 Black, RH Spring Square. Except SKU - MZKN - MYKA - MYKBBlack, RH Spring Square. Except SKU - MZKN - MYKA - MYKB
-
3060503190434 Labyrinth SealLabyrinth Seal
-
3070503192808 Black Wheel Ass'y 155 mm. Includes 3070 to 3070bBlack Wheel Ass'y 155 mm. Includes 3070 to 3070b
-
3070a503193548 Ball BearingBall Bearing
-
3070b415129780 Retaining RingRetaining Ring
-
3080503189146 Axle SpringAxle Spring
-
3090503192592 Labyrinth RingLabyrinth Ring
-
3100503193069 Link Ass'y. Except Package XRS Iron Dog. Includes 3100 to 3100cLink Ass'y. Except Package XRS Iron Dog. Includes 3100 to 3100c
-
3100503194496 Link Ass'y. Package XRS Iron Dog. Includes 3100 to 3100cLink Ass'y. Package XRS Iron Dog. Includes 3100 to 3100c
-
3100a503192494 WasherWasher
-
3100b233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3100c503191555 Swivel BushingSwivel Bushing
-
3110293370080 Retaining RingRetaining Ring
-
3170503192496 WasherWasher
-
3180207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
3190503189156 Pivot Arm AxlePivot Arm Axle
-
3200503192494 WasherWasher
-
3210503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
3220233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4000503193903 Rod LinkRod Link
-
4030503190643 Axle Bar (Long)Axle Bar (Long)
-
4060503192494 WasherWasher
-
4070503193372 Screw M8 X 90Screw M8 X 90
-
4080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4090503192555 Axle BarAxle Bar
-
4100503192494 WasherWasher
-
4110234082410 Flat Washer 8 mmFlat Washer 8 mm
-
4120207085556 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
4130233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
5010207005044 Hex. Screw M10 X 1.5 X 50. Package XRS Iron DogHex. Screw M10 X 1.5 X 50. Package XRS Iron Dog
-
5020233601416 Elastic Locking Nut M10 X 1.5. Package XRS Iron DogElastic Locking Nut M10 X 1.5. Package XRS Iron Dog
-
5570503192606 Rear Shock AxleRear Shock Axle
-
5580505072663 Leg CushionLeg Cushion
-
5590207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
5600233281466 Elastic Flang Nut M8Elastic Flang Nut M8
