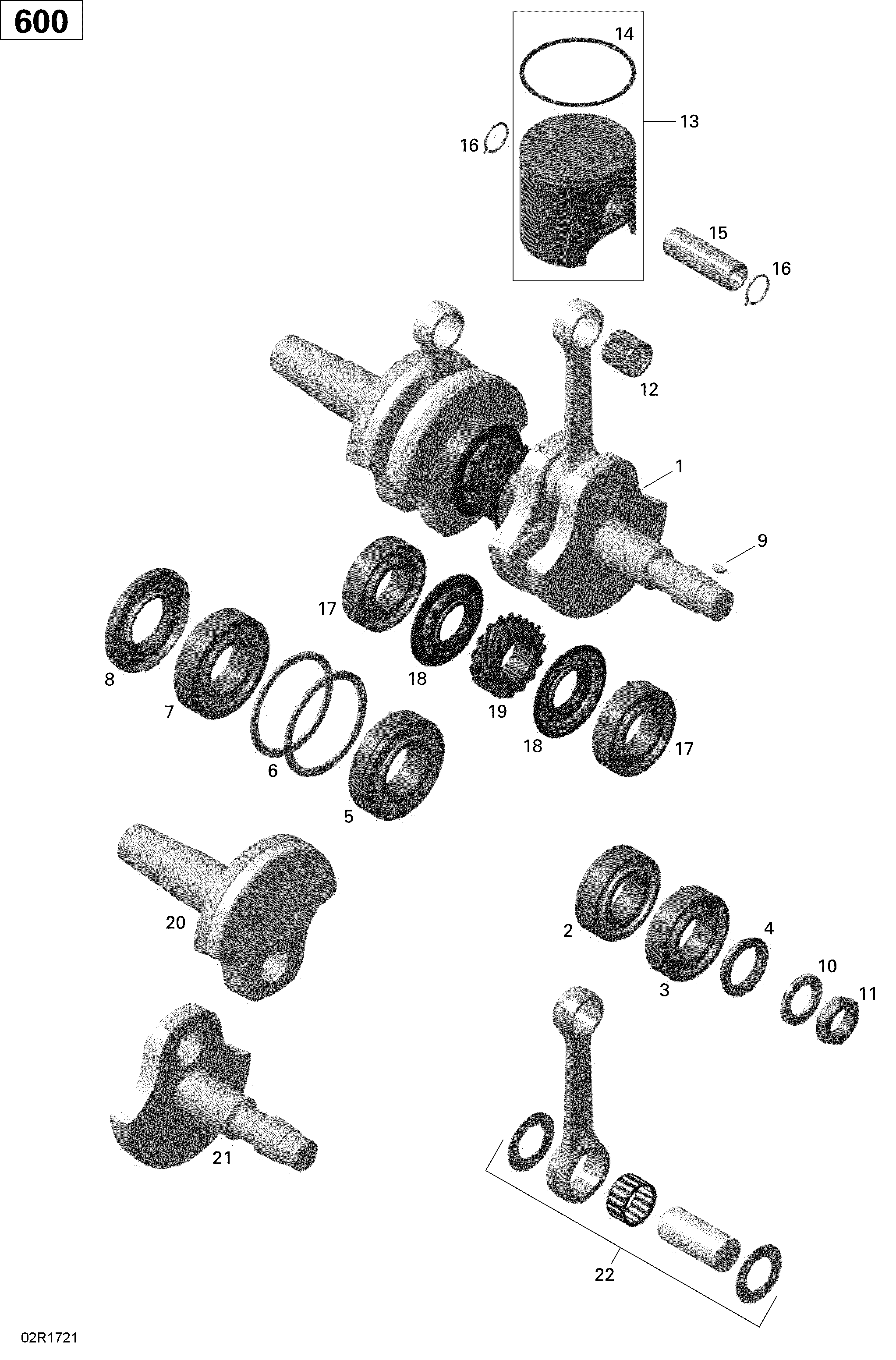

01- Crankshaft and Pistons - 600 CARB для BRP Ski-Doo 001 - RENEGADE 600 CARB - 2019
-
№АртикулНазвание
-
1420890971 Crankshaft Ass'y. Includes 1 to 9Crankshaft Ass'y. Includes 1 to 9
-
2420832596 Ball BearingBall Bearing
-
3420832590 Ball Bearing 6206Ball Bearing 6206
-
4420931795 Oil SealOil Seal
-
5420832633 Ball BearingBall Bearing
-
6420927710 Retaining DiskRetaining Disk
-
7420832575 Ball BearingBall Bearing
-
8420831952 Oil SealOil Seal
-
9420246015 Woodruff KeyWoodruff Key
-
10420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
11420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
12420832445 Needle BearingNeedle Bearing
-
13420889173 Piston Ass'y, 75.88 mm, Standard. Includes 13 to 14Piston Ass'y, 75.88 mm, Standard. Includes 13 to 14
-
13420889174 Piston Ass'y, 76.13 mm, Oversize. Includes 13 to 14Piston Ass'y, 76.13 mm, Oversize. Includes 13 to 14
-
14420815155 Semi-Trapez Ring, StandardSemi-Trapez Ring, Standard
-
14420815156 Semi-Trapez Ring, 1stSemi-Trapez Ring, 1st
-
15420916412 Piston PinPiston Pin
-
16420845106 Piston CirclipPiston Circlip
-
17420832590 Ball Bearing 6206Ball Bearing 6206
-
18420931940 Oil SealOil Seal
-
19420834350 Central Gear, 15 TeethCentral Gear, 15 Teeth
-
22420890973 Rod Repair Kit, MAG SideRod Repair Kit, MAG Side
-
22420890974 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
