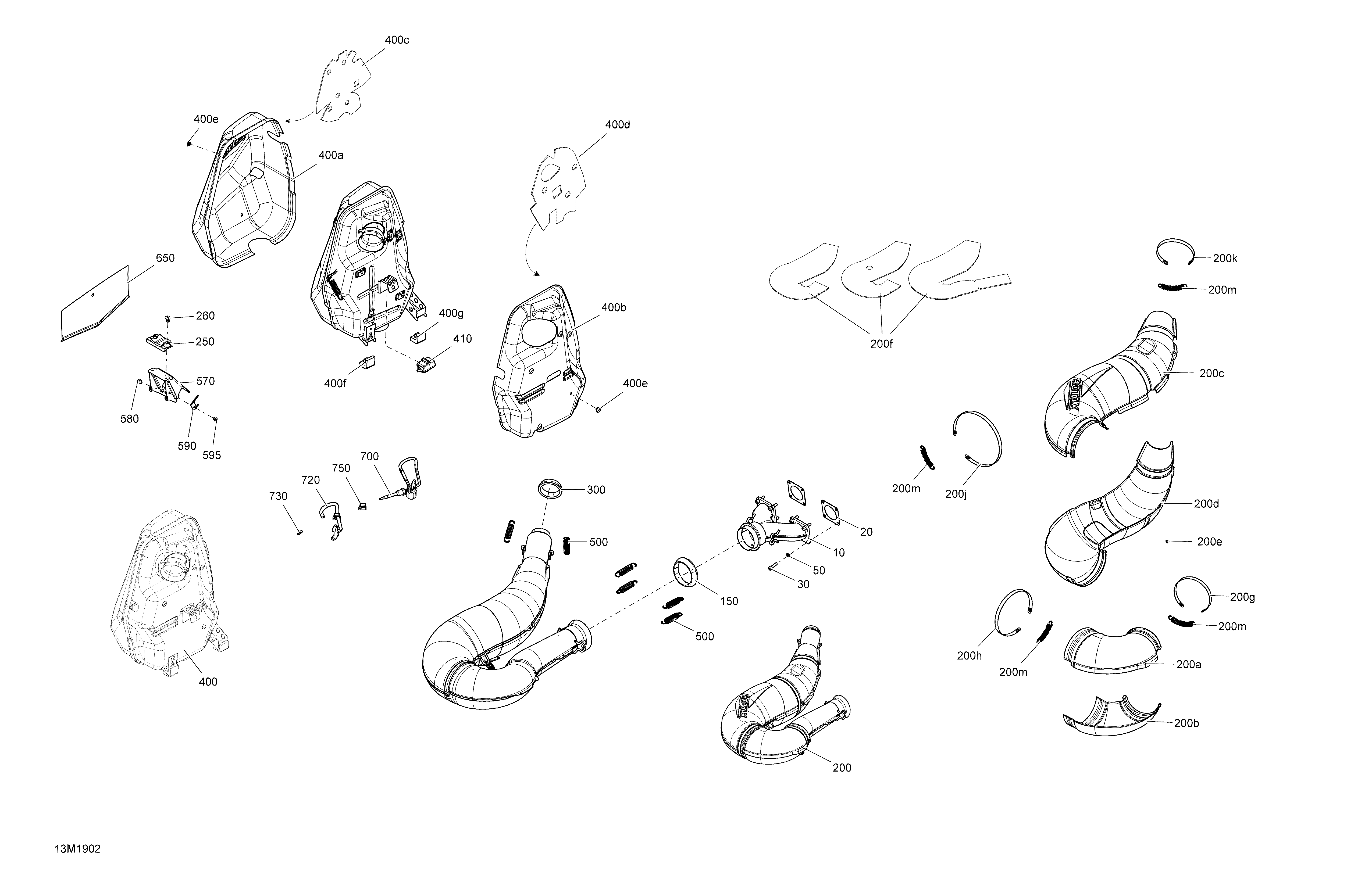

01- Exhaust - 600 CARB для BRP Ski-Doo 001 - RENEGADE 600 CARB - 2019
-
№АртикулНазвание
-
10420673131 Exhaust ManifoldExhaust Manifold
-
20420931610 GasketGasket
-
30205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
40207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
50250200111 WasherWasher
-
150514053487 Exhaust GasketExhaust Gasket
-
200514055064 Exhaust Tuned Pipe. Includes 200 to 200mExhaust Tuned Pipe. Includes 200 to 200m
-
200a514054992 Front Upper Half EnveloppeFront Upper Half Enveloppe
-
200b514054993 Front Lower Half EnveloppeFront Lower Half Enveloppe
-
200c514055039 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
200d514054990 Rear Lower Half Enveloppe. Includes 200d to 200eRear Lower Half Enveloppe. Includes 200d to 200e
-
200e293150091 Henrob RivetHenrob Rivet
-
200f514054487 Insulating WoolInsulating Wool
-
200g514054408 Retaining StrapRetaining Strap
-
200h514054409 Retaining StrapRetaining Strap
-
200j514054410 Retaining StrapRetaining Strap
-
200k514053499 Retaining StrapRetaining Strap
-
200M514053643 SpringSpring
-
250514054275 BumperBumper
-
260293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
300514053812 Exhaust GasketExhaust Gasket
-
400514054972 Muffler Ass'y. Includes 400 to 400gMuffler Ass'y. Includes 400 to 400g
-
400a514054984 RH DeflectorRH Deflector
-
400b514054967 LH DeflectorLH Deflector
-
400c514054711 RH Insulating WoolRH Insulating Wool
-
400d514054299 LH Insulating WoolLH Insulating Wool
-
400e390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
400f514054274 Lower StopperLower Stopper
-
400g514054496 Lower StopperLower Stopper
-
410514054606 Upper StopperUpper Stopper
-
500415107100 SpringSpring
-
510514054974 Spring Bracket, 5mm holeSpring Bracket, 5mm hole
-
520293150144 Stavex RivetStavex Rivet
-
530514054974 Spring Bracket, 5mm holeSpring Bracket, 5mm hole
-
540390909200 Avex RivetAvex Rivet
-
550514054975 Spring Bracket, 8.0mm holeSpring Bracket, 8.0mm hole
-
560293150147 Hemlock RivetHemlock Rivet
-
600514054488 Reflective SheetReflective Sheet
-
610514054817 Heat ShieldHeat Shield
