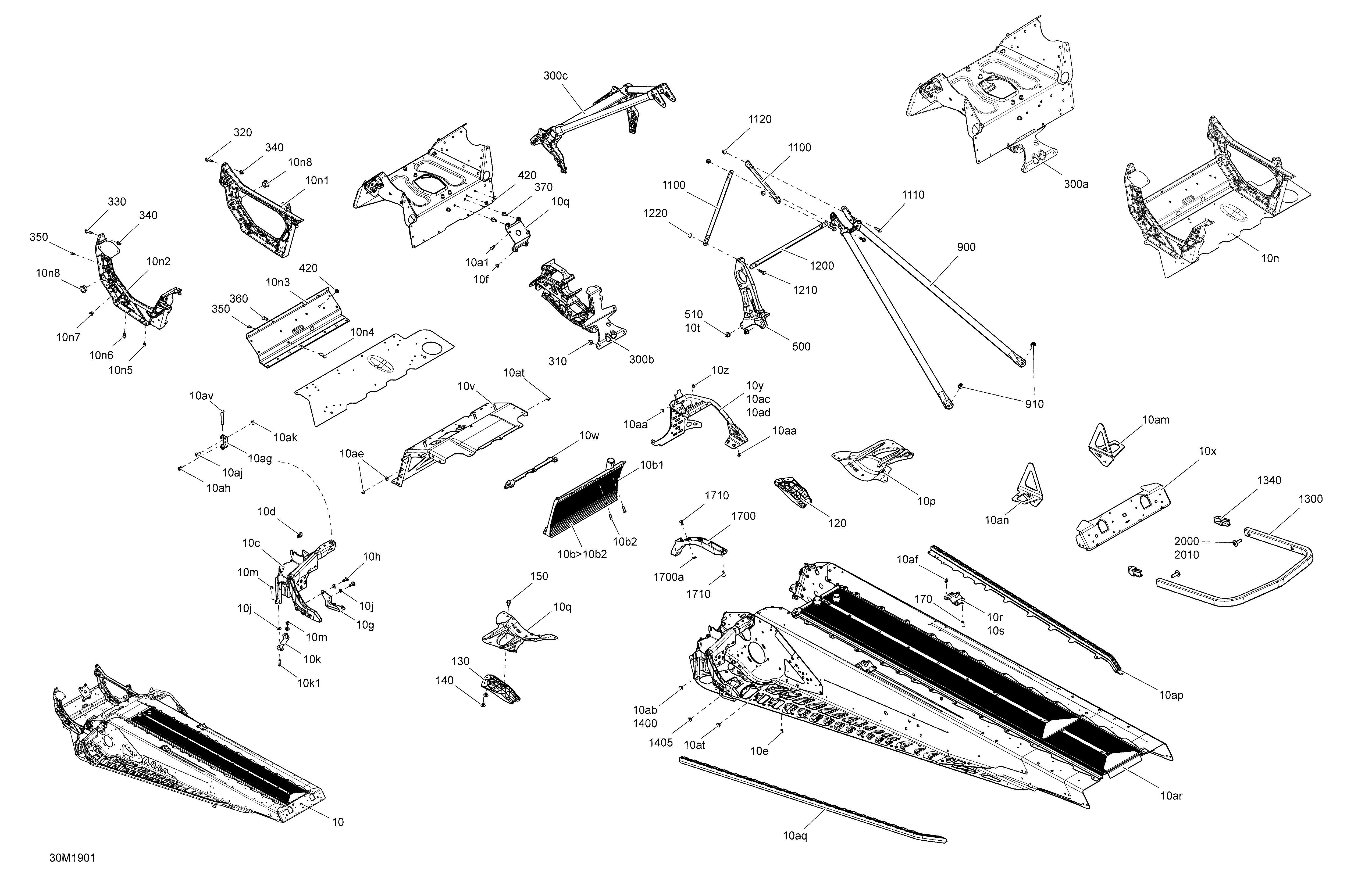

09- Frame - 600 CARB для BRP Ski-Doo 001 - RENEGADE 600 CARB - 2019
-
№АртикулНазвание
-
10415130276 Frame 137 Renegade. Includes 10 to 10avFrame 137 Renegade. Includes 10 to 10av
-
10a518325943 MAG Engine Support. Includes 10a to 10a1MAG Engine Support. Includes 10a to 10a1
-
10a1250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10b518326485 Front Radiator. Includes 10b to 10b2Front Radiator. Includes 10b to 10b2
-
10b1518326486 Front RadiatorFront Radiator
-
10b2250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10c518326820 LH StirupLH Stirup
-
10d250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
10e293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
10f293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10g518326960 SupportSupport
-
10h250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
10j250200039 Flat WasherFlat Washer
-
10k518326986 Attach. Includes 10k to 10k1Attach. Includes 10k to 10k1
-
10k1250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10m232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10n518327567 E Module. Includes 10n to 10n8E Module. Includes 10n to 10n8
-
10n1518326795 RH MemberRH Member
-
10n2518326796 LH MemberLH Member
-
10n3518326198 Front Member. Includes 10n3 to 10n4Front Member. Includes 10n3 to 10n4
-
10n4250300038 Clinch StudClinch Stud
-
10n5293150144 Stavex RivetStavex Rivet
-
10n6293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
10n7293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10n8505073317 Leg CushionLeg Cushion
-
10p518324874 RH ReinforcementRH Reinforcement
-
10q518324875 LH ReinforcementLH Reinforcement
-
10r518325973 RH Rear BaseRH Rear Base
-
10s518325974 LH Rear Base. Includes 10s to 10vLH Rear Base. Includes 10s to 10v
-
10t250300038 Clinch StudClinch Stud
-
10v250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10w518326656 SealSeal
-
10x518327105 Rear CapRear Cap
-
10y518328938 RH Stirup. Includes 10y to 10zRH Stirup. Includes 10y to 10z
-
10z390909200 Avex RivetAvex Rivet
-
10aa293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
10ab293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
10ac390909100 Avex Rivet. Not ShownAvex Rivet. Not Shown
-
10ad293150144 Stavex Rivet. Not ShownStavex Rivet. Not Shown
-
10ae293150146 Henrob RivetHenrob Rivet
-
10af293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10ag518326961 U-AttachU-Attach
-
10ah293150147 Hemlock RivetHemlock Rivet
-
10aj250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
10ak233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
10am518328789 RH BracketRH Bracket
-
10an518328790 LH BracketLH Bracket
-
10ap518325377 RH RollerRH Roller
-
10aq518325378 LH RollerLH Roller
-
10ar518327588 Rear Radiator 137''. Includes 10ar to 10asRear Radiator 137''. Includes 10ar to 10as
-
10as293150144 Stavex RivetStavex Rivet
-
10at293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
10av250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
120518325782 RH Deflector, Black PolypropyleneRH Deflector, Black Polypropylene
-
130518325783 LH Deflector, Black PolypropyleneLH Deflector, Black Polypropylene
-
140293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
150207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
170293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
300a518328320 Cross Member S Module. Includes 300a to 300bCross Member S Module. Includes 300a to 300b
-
300b518327487 Front Suspension SupportFront Suspension Support
-
300c518326970 Front MemberFront Member
-
310233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
320250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
340233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
350293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
360293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
420293730053 Black Dart 5 mmBlack Dart 5 mm
-
500518328346 Pulley SupportPulley Support
-
510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
900518326559 Rear MemberRear Member
-
910233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1100518325114 Upper Lateral Column SupportUpper Lateral Column Support
-
1110207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1120233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1200518325115 Center Column SupportCenter Column Support
-
1210207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1220233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1300518324980 Clear Rear BumperClear Rear Bumper
-
1340520000567 Full Moon CapFull Moon Cap
-
1400293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
1405293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
1700518326973 Front Tunnel Protector. Includes 1700 to 1700aFront Tunnel Protector. Includes 1700 to 1700a
-
1700a517124300 WasherWasher
-
1710293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
2000250000779 Torx Screw M6 X 1.0 X 18, Scotch Grip. Not ShownTorx Screw M6 X 1.0 X 18, Scotch Grip. Not Shown
-
2010224061201 Flat Washer. Not Shown. Not ShownFlat Washer. Not Shown. Not Shown
