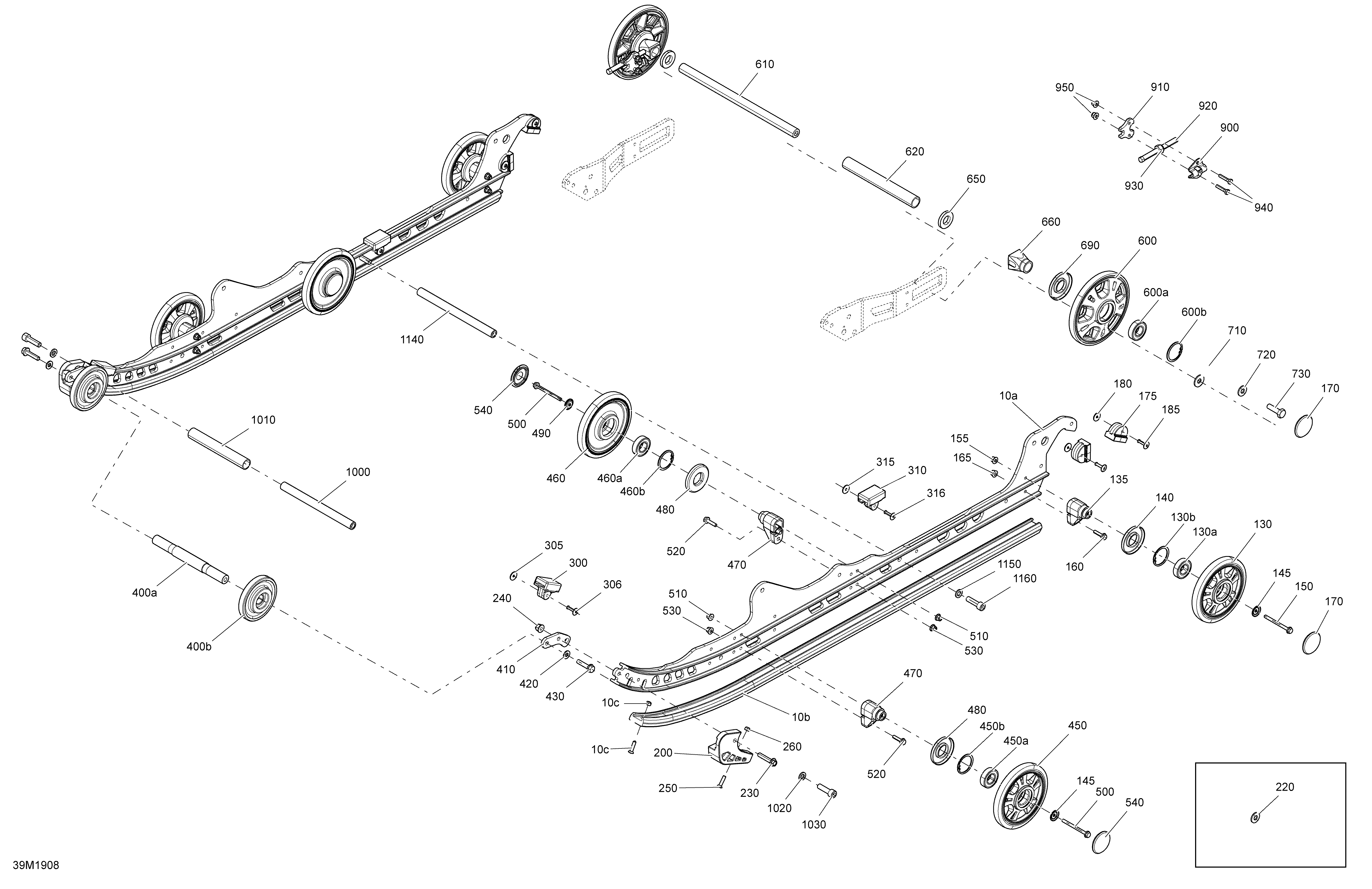

08- Rear Suspension - Lower Section для BRP Ski-Doo 001 - RENEGADE 600 CARB - 2019
-
№АртикулНазвание
-
10a503193899 RunnerRunner
-
10b503191619 SliderSlider
-
10c208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
10d232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
200503192299 Runner ProtectorRunner Protector
-
220250200140 WasherWasher
-
230207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
300503190576 Rubber StopperRubber Stopper
-
305503191273 WasherWasher
-
306293150224 Rivet Pop 3/16Rivet Pop 3/16
-
310503190576 Rubber StopperRubber Stopper
-
315503191273 WasherWasher
-
316293150224 Rivet Pop 3/16Rivet Pop 3/16
-
450503191152 Black, Wheel Ass'y 147 mm. Includes 450 to 450bBlack, Wheel Ass'y 147 mm. Includes 450 to 450b
-
450a503190396 Ball BearingBall Bearing
-
450b415129371 Retaining RingRetaining Ring
-
460503191311 Black, Wheel Ass'y 147 mm. Includes 460 to 460bBlack, Wheel Ass'y 147 mm. Includes 460 to 460b
-
460a503190396 Ball BearingBall Bearing
-
460b415129371 Retaining RingRetaining Ring
-
470503193894 Casted SupportCasted Support
-
480503190434 Labyrinth SealLabyrinth Seal
-
490503191820 Wheel Cup M6Wheel Cup M6
-
500250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
510233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
520250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
530233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
540503192771 Black, Wheel CapBlack, Wheel Cap
-
600503191742 Black, Wheel Ass'y, 180 mm. Includes 600 to 600bBlack, Wheel Ass'y, 180 mm. Includes 600 to 600b
-
600a503190396 Ball BearingBall Bearing
-
600b415129371 Retaining RingRetaining Ring
-
610503190429 Rear AxleRear Axle
-
620503191108 SpacerSpacer
-
650503190432 WasherWasher
-
660503190428 Rear Wheel SpacerRear Wheel Spacer
-
690503190434 Labyrinth SealLabyrinth Seal
-
710503191910 WasherWasher
-
720234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
730250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
800503191183 Spring SupportSpring Support
-
810503190754 Retainer CushionRetainer Cushion
-
830205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
840233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
900503192583 TensionerTensioner
-
920230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
930233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
940250000619 Hex Screw M6 X 25Hex Screw M6 X 25
-
950233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1000503191260 Axle StrapAxle Strap
-
1010503192678 SpacerSpacer
-
1020503192496 WasherWasher
-
1030205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
