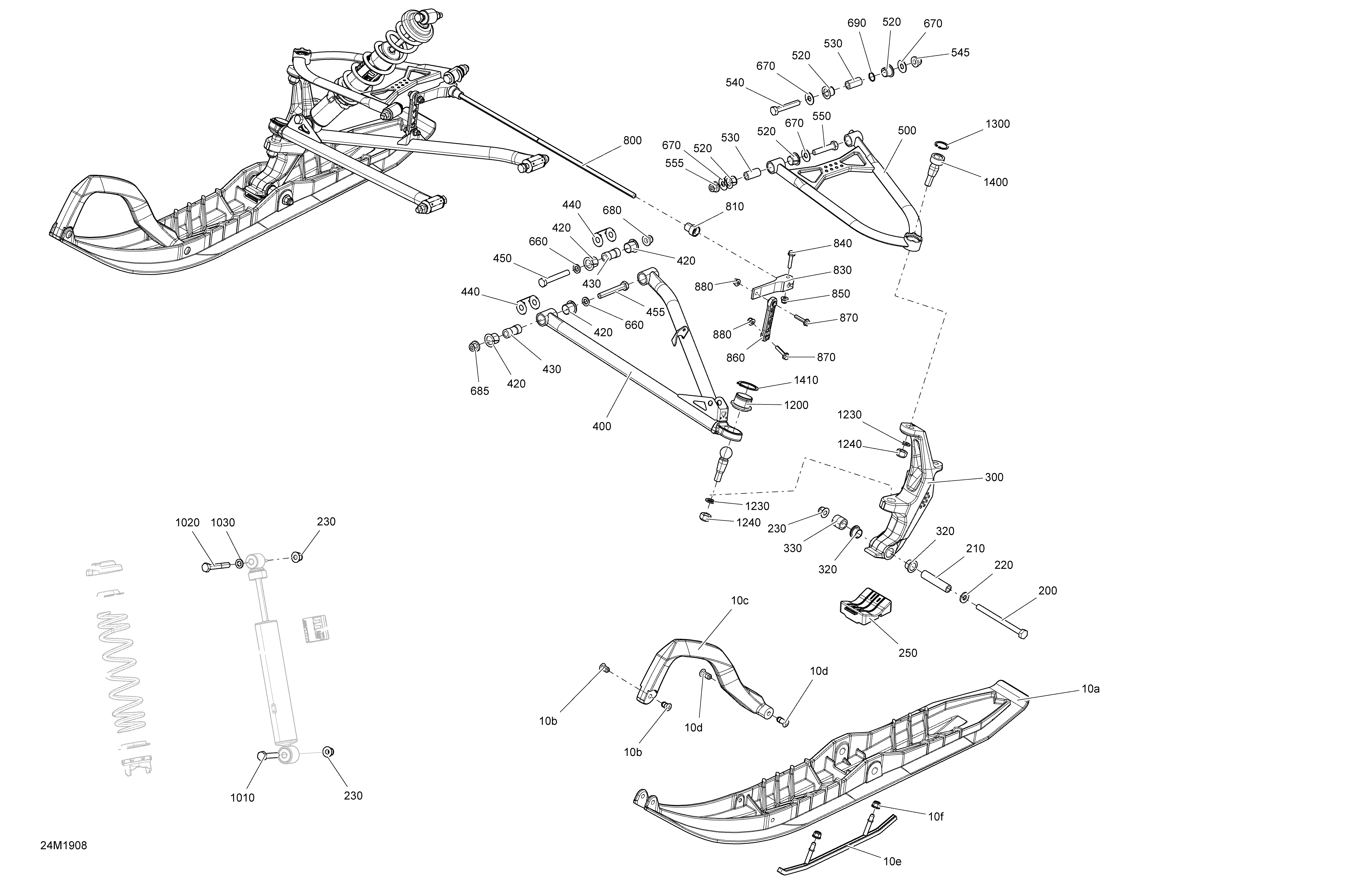

07- Front Suspension And Ski для BRP Ski-Doo 004 - RENEGADE 600 ACE - 2019
-
№АртикулНазвание
-
10a505072855 Deep Black, RH Pilot 5.7 Ski. North AmericaDeep Black, RH Pilot 5.7 Ski. North America
-
10a505072854 Deep Black, LH Pilot 5.7 Ski. North AmericaDeep Black, LH Pilot 5.7 Ski. North America
-
10a505073227 Black, DS 2 Ski. EuropeBlack, DS 2 Ski. Europe
-
10b505071812 Retainer 17mm longRetainer 17mm long
-
10c505070963 Black, Handle. North AmericaBlack, Handle. North America
-
10c505072976 Black, Handle. EuropeBlack, Handle. Europe
-
10d505072133 Retainer 23mm LongRetainer 23mm Long
-
10e860201044 Carbide Runner Kit (Square Runner)Carbide Runner Kit (Square Runner)
-
10f233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210506133300 SpacerSpacer
-
300505073007 Clear, LH Ski LegClear, LH Ski Leg
-
300505073008 Clear, RH Ski LegClear, RH Ski Leg
-
320505072690 Leg BushingLeg Bushing
-
400505072664 Black, RH Lower ArmBlack, RH Lower Arm
-
400505072665 Black, LH Lower ArmBlack, LH Lower Arm
-
420505072208 BushingBushing
-
430505072209 BushingBushing
-
440505072634 Wear PlateWear Plate
-
450250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
455250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
500505073462 Black LH Upper Arm, 42''Black LH Upper Arm, 42''
-
500505073463 Black RH Upper Arm, 42''Black RH Upper Arm, 42''
-
520505072250 BushingBushing
-
530505072143 BushingBushing
-
540250001023 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250001022 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505072602 StabilisatorStabilisator
-
810505072064 BushingBushing
-
830505072394 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505072204 Double Ball Joint LinkDouble Ball Joint Link
-
870207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1010207005554 Hex Screw M10 X 1.5 X 55Hex Screw M10 X 1.5 X 55
-
1020207006544 Hex. Screw M10 X 1.5 X 65Hex. Screw M10 X 1.5 X 65
-
1030503189564 WasherWasher
-
1200505073636 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12 X 1.25Hex Elastic Nut M12 X 1.25
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370035 CirclipCirclip
-
3000250000703 Hex. Screw M10 X 130. Not ShownHex. Screw M10 X 130. Not Shown
-
3010503192496 Washer. Not ShownWasher. Not Shown
-
3020233201464 Hex. Elast. Flanged Nut M10 x 1.5. Not ShownHex. Elast. Flanged Nut M10 x 1.5. Not Shown
-
3030505072594 Ski Stopper. Not ShownSki Stopper. Not Shown
-
3040505072579 Spacer. Not ShownSpacer. Not Shown
