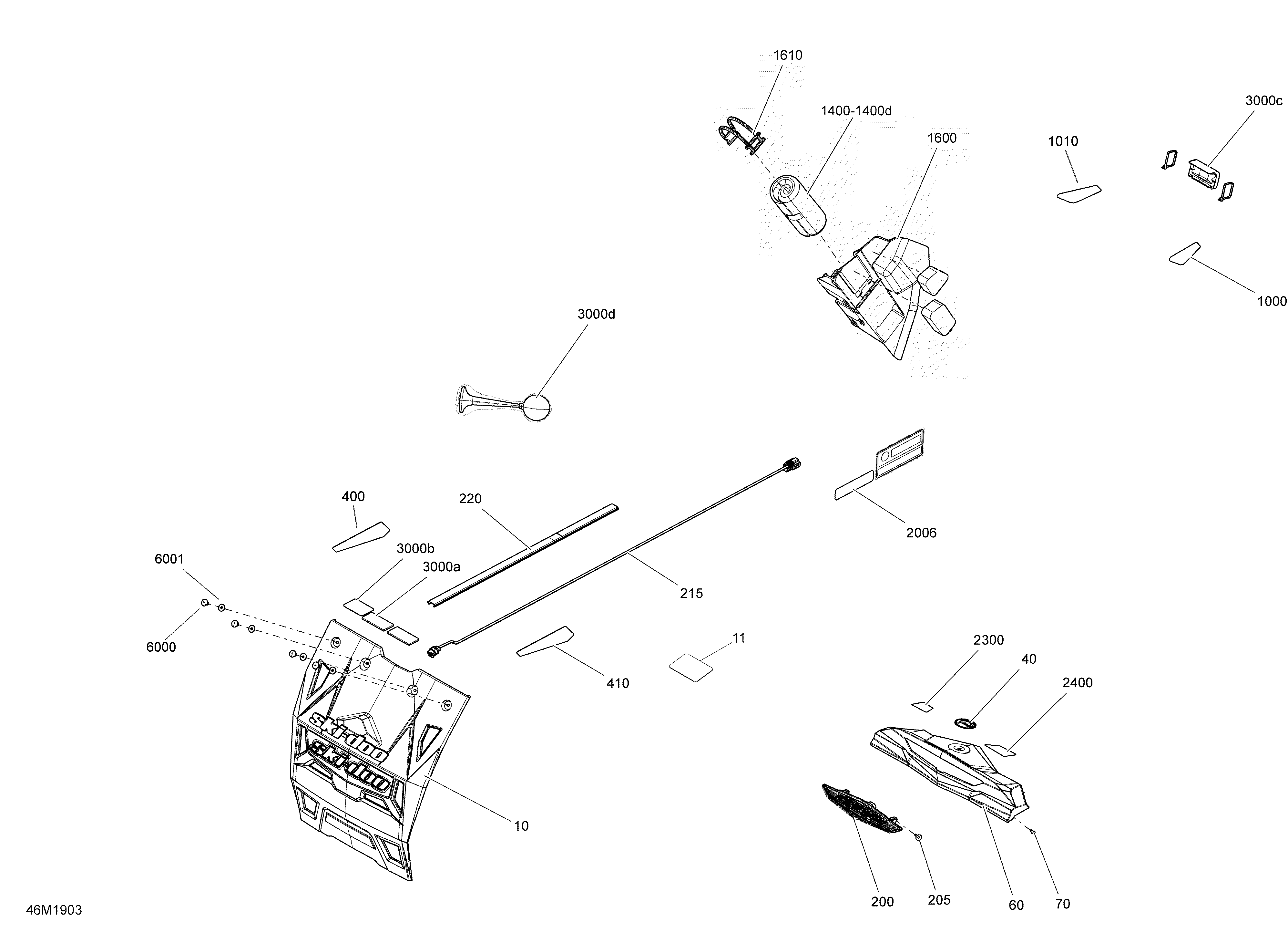

09- Utilities - 600 ACE - Europe для BRP Ski-Doo 004 - RENEGADE 600 ACE - 2019
-
№АртикулНазвание
-
10520001342 Snow Guard, Black W Alloy Grey InsertSnow Guard, Black W Alloy Grey Insert
-
11516005175 Warning Decal, TrackWarning Decal, Track
-
40516008738 Logo BRP, 48mmLogo BRP, 48mm
-
60511000810 Light Fairing, Deep BlackLight Fairing, Deep Black
-
70241141340 Hex. Screw K40 X 13Hex. Screw K40 X 13
-
200520001143 Rear LightRear Light
-
205250000725 Screw M4 X 16Screw M4 X 16
-
215515178062 Wiring HarnessWiring Harness
-
225520000829 Radiator TrimRadiator Trim
-
400520001241 Yellow, RH Rear ReflectorYellow, RH Rear Reflector
-
410520001240 Yellow, LH Rear ReflectorYellow, LH Rear Reflector
-
1000520001237 Yellow, RH Front ReflectorYellow, RH Front Reflector
-
1010520001236 Yellow, LH Front ReflectorYellow, LH Front Reflector
-
1400520001591 Tools KitTools Kit
-
2006516008823 Europe DecalEurope Decal
-
2300516006914 Security Label, XSSecurity Label, XS
-
2400516005058 Warning Decal, SafetyWarning Decal, Safety
-
3000a520000271 Amber, ReflectorAmber, Reflector
-
3000b415037900 White, ReflectorWhite, Reflector
-
3000c520000871 Deep Black, Reflector SupportDeep Black, Reflector Support
-
3000d549011291 HornHorn
-
3400520001894 Operator Guide EnglishOperator Guide English
-
6000293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
6001517124300 WasherWasher
