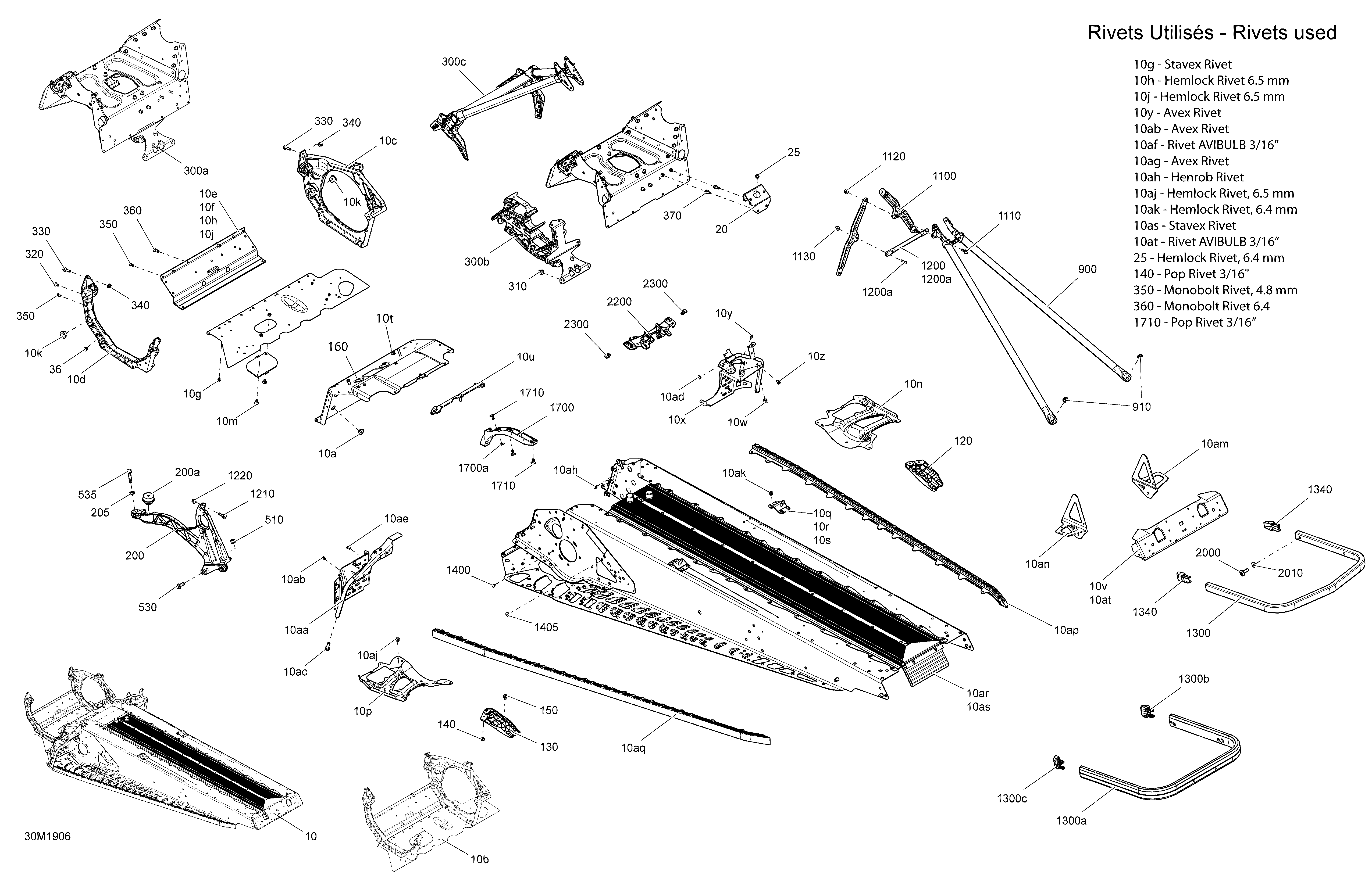

09- Frame - 600 ACE для BRP Ski-Doo 004 - RENEGADE 600 ACE - 2019
-
№АртикулНазвание
-
10415130264 Frame. Includes 10 to 10atFrame. Includes 10 to 10at
-
10a293730052 Black, PlugBlack, Plug
-
10b518328078 'E'' Module. Includes 10b to 10m'E'' Module. Includes 10b to 10m
-
10c518326328 RH Side MemberRH Side Member
-
10d518326330 LH Side MemberLH Side Member
-
10e518326198 Front Member. Includes 10e to 10fFront Member. Includes 10e to 10f
-
10f250300038 Clinch StudClinch Stud
-
10g293150144 Stavex RivetStavex Rivet
-
10h293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
10j293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10k505073317 Leg CushionLeg Cushion
-
10m250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
10n518326937 RH Reinforcement, Running BoardRH Reinforcement, Running Board
-
10p518326938 LH Reinforcement, Running BoardLH Reinforcement, Running Board
-
10q518325973 RH Rear BaseRH Rear Base
-
10r518325974 LH Rear Base. Includes 10r to 10sLH Rear Base. Includes 10r to 10s
-
10s250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
10t293450275 InsertInsert
-
10u518326656 SealSeal
-
10v518327105 Rear CapRear Cap
-
10w293450275 InsertInsert
-
10x518328942 RH Stirup. Includes 10x to 10yRH Stirup. Includes 10x to 10y
-
10y390909200 Avex RivetAvex Rivet
-
10z293450268 Insert M5 X 0.8Insert M5 X 0.8
-
10aa518328528 LH Stirup. Includes 10aa to 10abLH Stirup. Includes 10aa to 10ab
-
10ab390909200 Avex RivetAvex Rivet
-
10ac250000752 Torx Screw M8 X 1.25 X 25, Scotch GripTorx Screw M8 X 1.25 X 25, Scotch Grip
-
10ad293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
10ae293450268 Insert M5 X 0.8Insert M5 X 0.8
-
10af293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
10ag390909100 Avex RivetAvex Rivet
-
10ah293150146 Henrob RivetHenrob Rivet
-
10aj293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10ak293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10am518328789 RH BracketRH Bracket
-
10an518328790 LH BracketLH Bracket
-
10ap518328124 RH RollerRH Roller
-
10aq518328125 LH RollerLH Roller
-
10ar518326641 Rear Radiator Ass'y, 137''. Includes 10ar to 10asRear Radiator Ass'y, 137''. Includes 10ar to 10as
-
10as293150144 Stavex RivetStavex Rivet
-
10at293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
20518326178 Engine SupportEngine Support
-
25293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
120518325782 RH Deflector, Black PolypropyleneRH Deflector, Black Polypropylene
-
130518325783 LH Deflector, Black PolypropyleneLH Deflector, Black Polypropylene
-
140293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
150207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
160518325560 Adhesive PatchAdhesive Patch
-
200518327535 Brace Ass'y. Includes 200 to 200aBrace Ass'y. Includes 200 to 200a
-
200a512060295 Rubber MountRubber Mount
-
205234281474 Conical Spring Washer M8Conical Spring Washer M8
-
300a518328320 Cross Member S Module. Includes 300a to 300bCross Member S Module. Includes 300a to 300b
-
300b518327487 Front Suspension SupportFront Suspension Support
-
300c518327565 Front MemberFront Member
-
310233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
320250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
340233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
350293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
360293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
530250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
535207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
900518326559 Rear MemberRear Member
-
910233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1100518326848 Upper Column SupportUpper Column Support
-
1110207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1120233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1130233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1200518326355 Center Column Support. Includes 1200 to 1200aCenter Column Support. Includes 1200 to 1200a
-
1200a250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
1210207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1220233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1300518324980 Clear Rear Bumper. North AmericaClear Rear Bumper. North America
-
1300a518325577 Clear Rear Bumper. EuropeClear Rear Bumper. Europe
-
1300b520000711 Full Moon RH Cap. EuropeFull Moon RH Cap. Europe
-
1300c520000712 Full Moon LH Cap. EuropeFull Moon LH Cap. Europe
-
1340520000567 Full Moon Cap. North AmericaFull Moon Cap. North America
-
1400293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
1405293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
1700518326973 Front Tunnel Protector. Includes 1700 to 1700aFront Tunnel Protector. Includes 1700 to 1700a
-
1700a517124300 WasherWasher
-
1710293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
2200518327145 Sub A SupportSub A Support
-
2300250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
2000250000779 Torx Screw M6 X 1.0 X 18, Scotch Grip. Not ShownTorx Screw M6 X 1.0 X 18, Scotch Grip. Not Shown
-
2010224061201 Flat Washer. Not ShownFlat Washer. Not Shown
