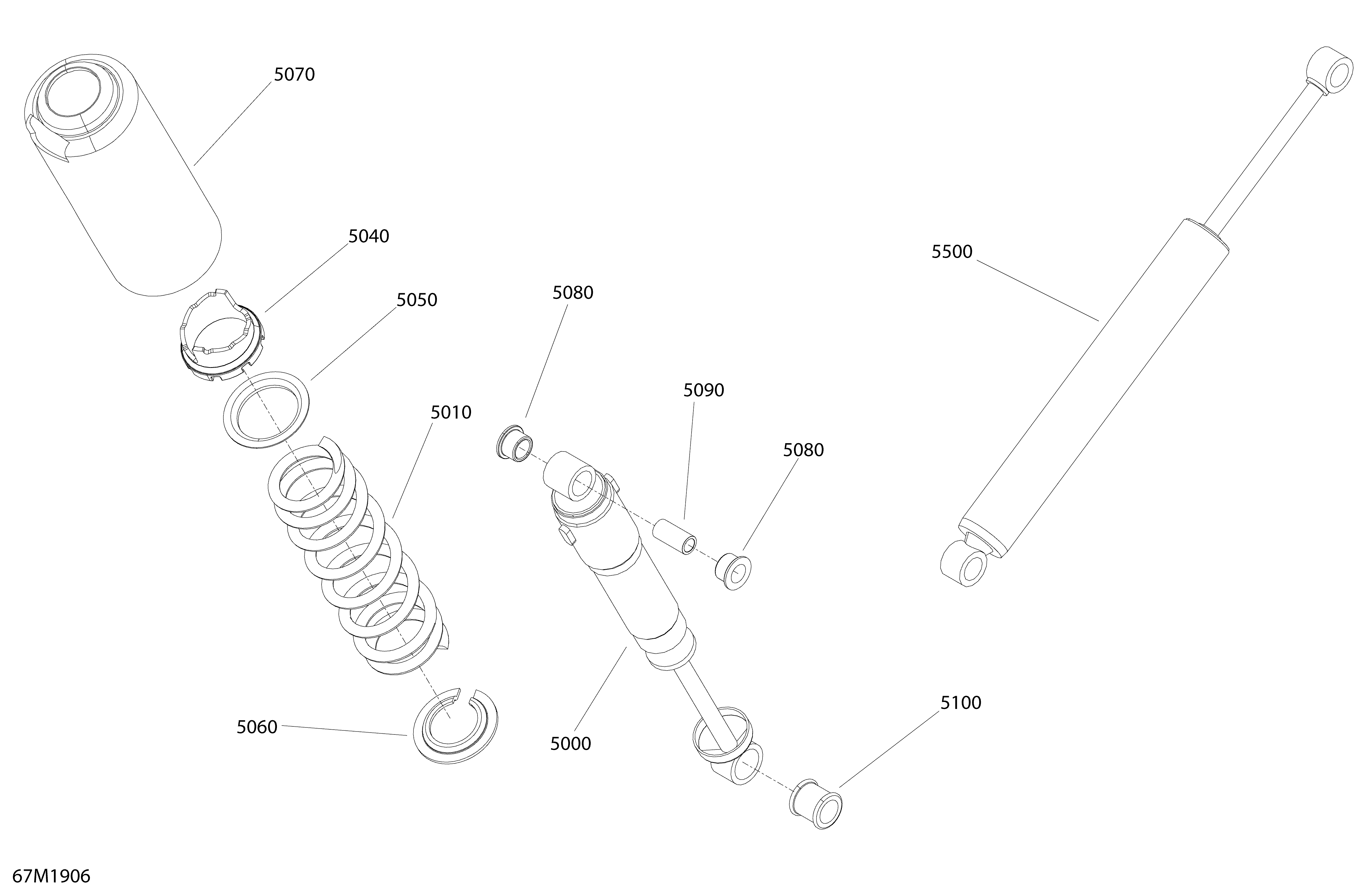

08- Rear Shocks - North America для BRP Ski-Doo 004 - RENEGADE 600 ACE - 2019
-
№АртикулНазвание
-
5000503192266 Center ShockCenter Shock
-
5010503191882 Black, SpringBlack, Spring
-
5040505073625 Adjustment CamAdjustment Cam
-
5050503191872 Spring GuideSpring Guide
-
5060706200881 Spring StopperSpring Stopper
-
5070503193663 ProtectorProtector
-
5080503189117 Bushing UrethaneBushing Urethane
-
5090503189282 BushingBushing
-
5100503189271 BushingBushing
-
5150207005044 Hex. Screw M10 X 1.5 X 50. Not ShownHex. Screw M10 X 1.5 X 50. Not Shown
-
5160233601466 Elastic Locking Nut M10. Not ShownElastic Locking Nut M10. Not Shown
-
5500503193187 Rear Shock HPG SEALRear Shock HPG SEAL
