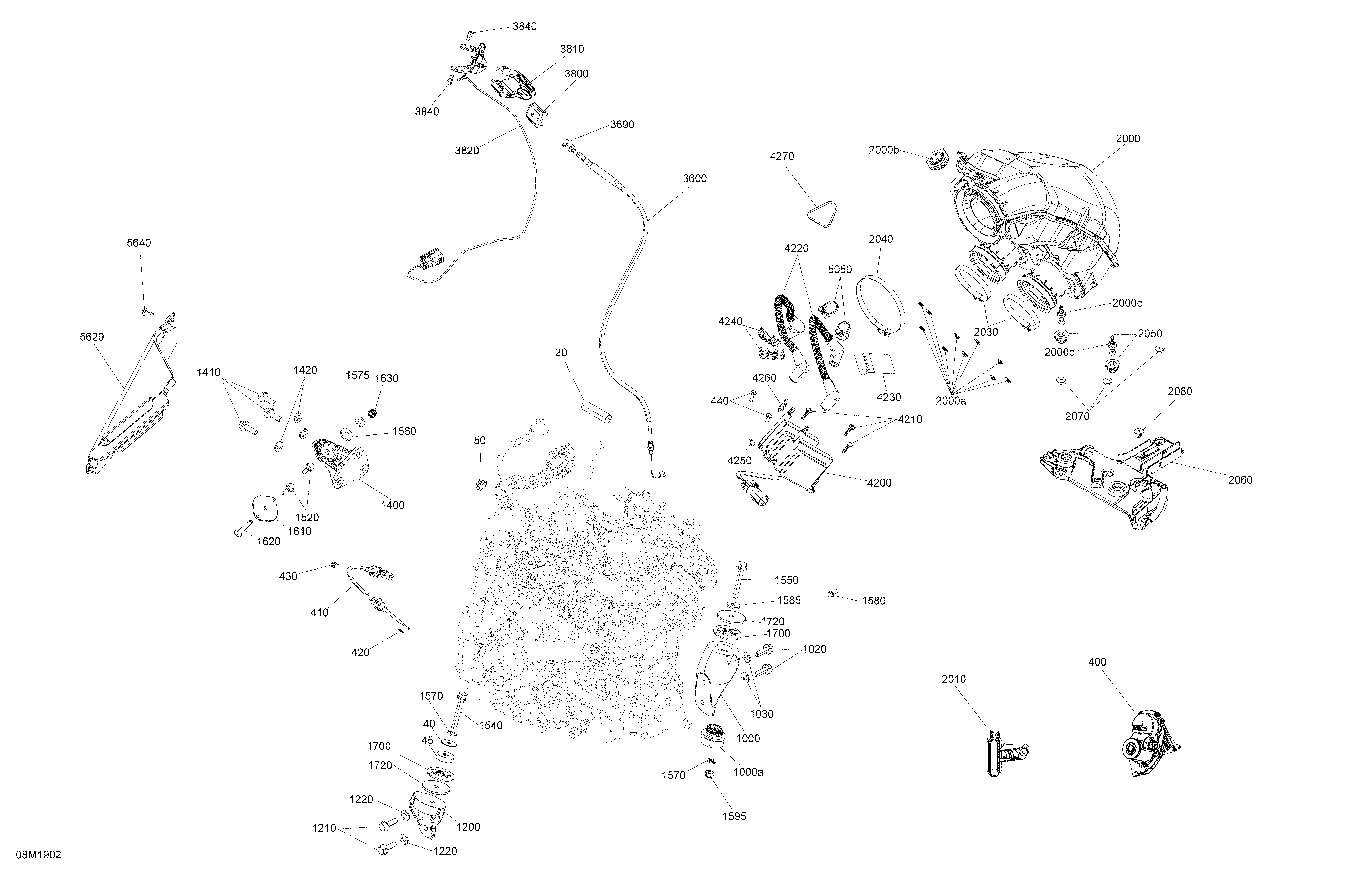

01- Engine - 600R E-TEC для BRP Ski-Doo 002 - SUMMIT 600R E-TEC - 2019
-
№АртикулНазвание
-
20515178492 Braided Sleeve 60MM LongBraided Sleeve 60MM Long
-
40512061333 WasherWasher
-
45512061334 Limiteur PTOLimiteur PTO
-
50414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
400420889438 Servo Motor Ass'yServo Motor Ass'y
-
410420997033 Bowden Cable Ass'yBowden Cable Ass'y
-
420293370122 CirclipCirclip
-
430205551060 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
440207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
1000512061136 Rear PTO Support. Includes 1000 to 1000aRear PTO Support. Includes 1000 to 1000a
-
1000a512060295 Rubber MountRubber Mount
-
1020250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
1030250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1200512061025 Front PTO SupportFront PTO Support
-
1210250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
1220250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1400512061344 MAG SupportMAG Support
-
1410250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
1420250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1520250001062 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
1540207585544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
1550207585544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
1560506151245 WasherWasher
-
1570250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
1575250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1580207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
1585503183200 Washer, YellowWasher, Yellow
-
1595232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1610512061347 ShimShim
-
1620250000761 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
1630233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1700512061137 Engine StopperEngine Stopper
-
1720512061354 Spacer. Includes 1720 to 1720bSpacer. Includes 1720 to 1720b
-
2000508001003 Chamber Ass'y. Except E-TEC SHOT Engine Starter. Includes 2000 to 2000cChamber Ass'y. Except E-TEC SHOT Engine Starter. Includes 2000 to 2000c
-
2000508001005 Chamber Ass'y. E-TEC SHOT Engine Starter. Includes 2000 to 2000dChamber Ass'y. E-TEC SHOT Engine Starter. Includes 2000 to 2000d
-
2000a732610072 Push NutPush Nut
-
2000b512061083 RubberRubber
-
2000c420441840 ScrewScrew
-
2000d250000720 Torx Screw K50 X 16. E-TEC SHOT Engine StarterTorx Screw K50 X 16. E-TEC SHOT Engine Starter
-
2010512061325 Cable GuideCable Guide
-
2020250000759 Torx-Truss Pt K40 X 16Torx-Truss Pt K40 X 16
-
2030293650212 GEMI ClampGEMI Clamp
-
2040293650247 Gemi ClampGemi Clamp
-
2050420201630 Rubber CapRubber Cap
-
2060512061274 Airbox SupportAirbox Support
-
2070293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2080293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3600512061224 Throttle CableThrottle Cable
-
3690414274500 CirclipCirclip
-
3800512060859 Upper HousingUpper Housing
-
3810512060860 Lower HousingLower Housing
-
3820512061266 Throttle Ass'yThrottle Ass'y
-
3840732601143 Flanged ScrewFlanged Screw
-
4200512061168 Ignition CoilIgnition Coil
-
4210250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
4220512061166 Ignition CableIgnition Cable
-
4230516007661 Warning Decal, InjectorsWarning Decal, Injectors
-
4240512061238 Spark Plug Wire HolderSpark Plug Wire Holder
-
4270293300208 O-RingO-Ring
-
5050512060993 ClampClamp
-
5300512060136 Starter Grip. Except Electric StartStarter Grip. Except Electric Start
-
5640250000725 Screw M4 X 16Screw M4 X 16
