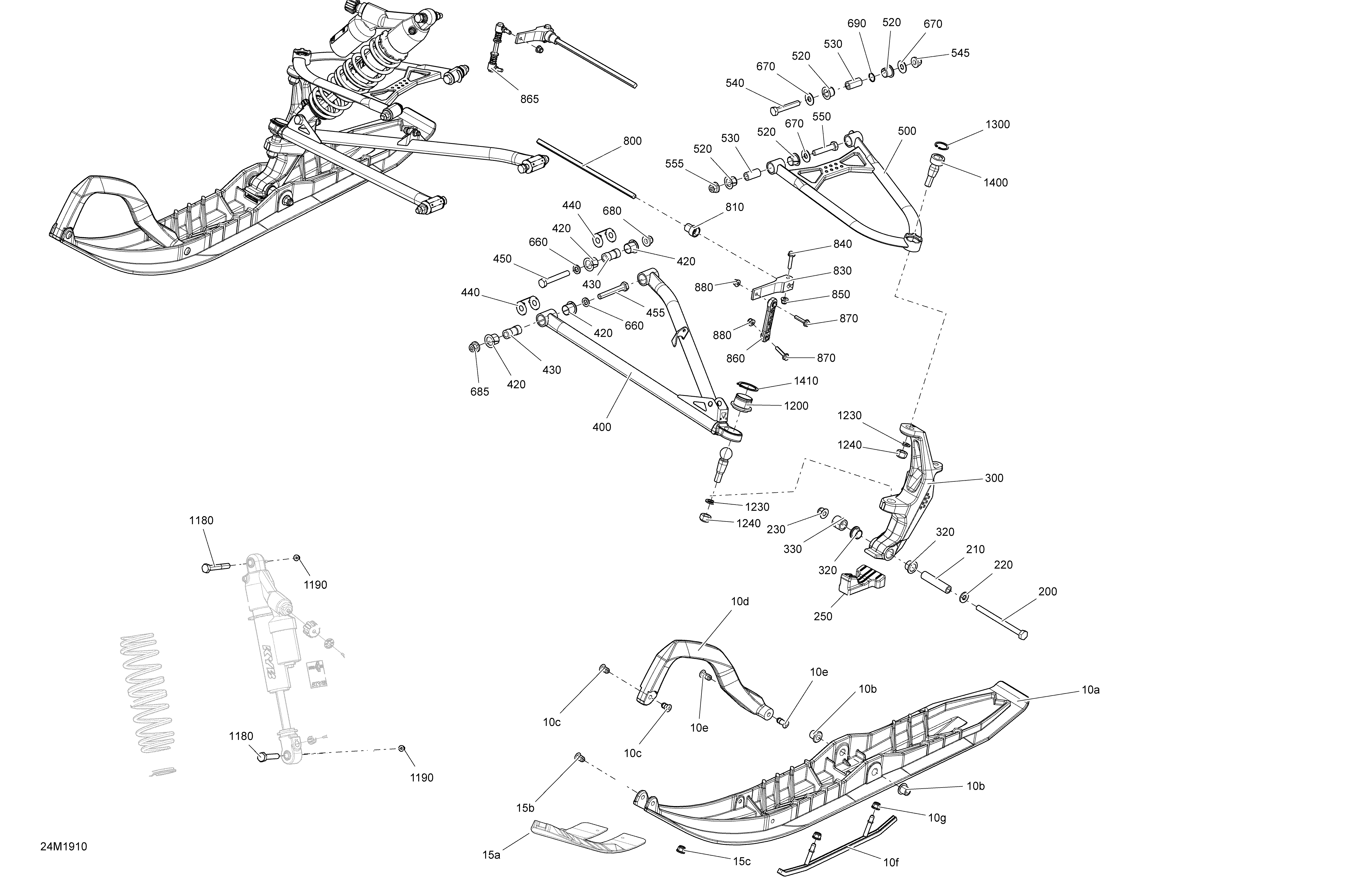

07- Front Suspension And Ski для BRP Ski-Doo 002 - SUMMIT 600R E-TEC - 2019
-
№АртикулНазвание
-
10a505074135 Black, DS3 Ski. Includes 10a to 10bBlack, DS3 Ski. Includes 10a to 10b
-
10a505074490 Can-Am Red, DS Ski. Includes 10a to 10bCan-Am Red, DS Ski. Includes 10a to 10b
-
10b505071781 Ski BushingSki Bushing
-
10c505071812 Retainer 17mm longRetainer 17mm long
-
10d505072976 Black, HandleBlack, Handle
-
10d505074230 Gulfstream Blue, HandleGulfstream Blue, Handle
-
10e505072133 Retainer 23mm LongRetainer 23mm Long
-
10f860201044 Carbide Runner Kit (Square Runner)Carbide Runner Kit (Square Runner)
-
10g233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15a505073784 Ski TipSki Tip
-
15b250000770 Hex. Socket Screw M6 X 20Hex. Socket Screw M6 X 20
-
15c233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210505073691 Ski AxleSki Axle
-
220732900049 WasherWasher
-
230233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
250505074138 Ski StopperSki Stopper
-
300505074543 Deep Black, LH Ski LegDeep Black, LH Ski Leg
-
300505074544 Deep Black, RH Ski LegDeep Black, RH Ski Leg
-
300505074480 Can-Am Red, LH Ski LegCan-Am Red, LH Ski Leg
-
300505074481 Can-Am Red, RH Ski LegCan-Am Red, RH Ski Leg
-
300505074484 Gulfstream Blue, LH Ski LegGulfstream Blue, LH Ski Leg
-
300505074485 Gulfstream Blue, RH Ski LegGulfstream Blue, RH Ski Leg
-
330503193651 SpacerSpacer
-
400505073743 RH Lower Arm 36''RH Lower Arm 36''
-
400505073739 LH Lower Arm 36''LH Lower Arm 36''
-
420505072208 BushingBushing
-
430505072214 BushingBushing
-
440505072634 Wear PlateWear Plate
-
445505072448 O-RingO-Ring
-
450250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
455250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
470505073723 Wear PlateWear Plate
-
480505073844 PlatePlate
-
500505074609 LH Upper Arm 36''LH Upper Arm 36''
-
500505074610 RH Upper Arm 36''RH Upper Arm 36''
-
520505072250 BushingBushing
-
530505072143 SleeveSleeve
-
540250001023 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250001023 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505073847 StabilisatorStabilisator
-
810505072786 BushingBushing
-
830505073752 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505073172 Double Ball Joint LinkDouble Ball Joint Link
-
870207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1170250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1180250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1190233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1200505074133 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12 X 1.25Hex Elastic Nut M12 X 1.25
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370098 Snap RingSnap Ring
