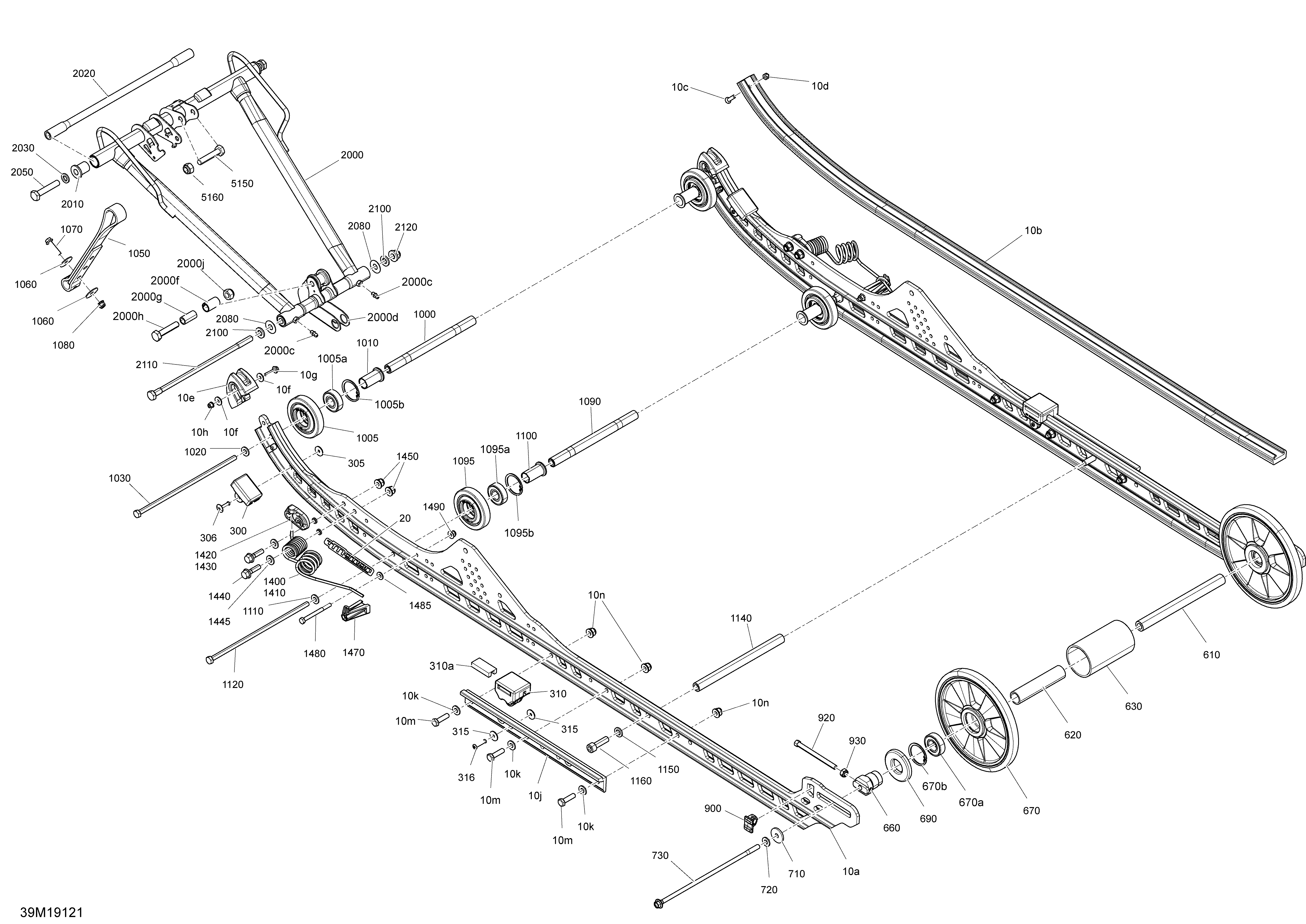

08- Rear Suspension - Lower Section - SP 154 для BRP Ski-Doo 002 - SUMMIT 600R E-TEC - 2019
-
№АртикулНазвание
-
10a503195137 Black, Runner 154Black, Runner 154
-
10b503194251 Slider 154Slider 154
-
10c208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
10d232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10e503194249 ProtectorProtector
-
10f250200140 WasherWasher
-
10g207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
10h233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
10j503193853 Black Runner ReinforcementBlack Runner Reinforcement
-
10k503192494 WasherWasher
-
10m207183054 Hex. Cap Screw M8 X 30Hex. Cap Screw M8 X 30
-
10n233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
20516006381 Runner DecalRunner Decal
-
240233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
300503190576 Rubber StopperRubber Stopper
-
305503191273 WasherWasher
-
306293150224 Rivet Pop 3/16Rivet Pop 3/16
-
310503193717 Stopper Rubber Ass'yStopper Rubber Ass'y
-
310a572084800 Reinforcement StopperReinforcement Stopper
-
315503191273 WasherWasher
-
316293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
610503194261 Rear AxleRear Axle
-
620503194280 SpacerSpacer
-
630503194286 BushingBushing
-
660503194747 TipTip
-
670503193098 Black, Wheel Ass'y 200 mm. Includes 670 to 670bBlack, Wheel Ass'y 200 mm. Includes 670 to 670b
-
670a503190396 Ball BearingBall Bearing
-
670b415129371 Retaining RingRetaining Ring
-
690503190434 Labyrinth SealLabyrinth Seal
-
710503194264 WasherWasher
-
720503192494 WasherWasher
-
730503194265 BoltBolt
-
900503194266 TensionerTensioner
-
920503194267 Hex. Cap Screw M8 X 95Hex. Cap Screw M8 X 95
-
930232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1000503194939 AxleAxle
-
1005503195125 Black, Wheel Ass'y. IS. Includes 1005 to 1005bBlack, Wheel Ass'y. IS. Includes 1005 to 1005b
-
1005a503194917 Ball BearingBall Bearing
-
1005b415129371 Retaining RingRetaining Ring
-
1010503191259 Center BushingCenter Bushing
-
1020503192494 WasherWasher
-
1030503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
1050503194679 Stopper StrapStopper Strap
-
1060503193995 WasherWasher
-
1070207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
1080233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1090503195522 Pivot AxlePivot Axle
-
1095503195125 Black, Wheel Ass'y. Includes 1095 to 1095bBlack, Wheel Ass'y. Includes 1095 to 1095b
-
1095a503194917 Ball BearingBall Bearing
-
1095b415129371 Retaining RingRetaining Ring
-
1100503191259 Center BushingCenter Bushing
-
1110503192494 WasherWasher
-
1120503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
1140503191260 Axle StrapAxle Strap
-
1150503192496 WasherWasher
-
1160205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
1400503194900 LH SpringLH Spring
-
1410503194901 RH SpringRH Spring
-
1420503194294 LH SupportLH Support
-
1430503194295 RH SupportRH Support
-
1440207683054 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
1445503192494 WasherWasher
-
1450233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1470503195087 Hook AssyHook Assy
-
1480207167054 Hex. Cap Screw M6 X 70Hex. Cap Screw M6 X 70
-
1485250200039 Flat WasherFlat Washer
-
1490233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2000503195197 Front Arm Ass'y. Includes 2000 to 2000jFront Arm Ass'y. Includes 2000 to 2000j
-
2000c408200700 Grease FittingGrease Fitting
-
2000d503193464 RockerRocker
-
2000f503193037 BushingBushing
-
2000g503189282 BushingBushing
-
2000h207005044 Hex. Screw M10 X 1.5 X 50Hex. Screw M10 X 1.5 X 50
-
2000j233601416 Elastic Locking Nut M10 X 1.5Elastic Locking Nut M10 X 1.5
-
2010503194970 BushingBushing
-
2020503193441 Upper ShaftUpper Shaft
-
2030503192496 WasherWasher
-
2050250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
2080250200032 WasherWasher
-
2100250200143 Flat WasherFlat Washer
-
2110503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
2120233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
5150207005044 Hex. Screw M10 X 1.5 X 50Hex. Screw M10 X 1.5 X 50
-
5160233601466 Elastic Locking Nut M10Elastic Locking Nut M10
