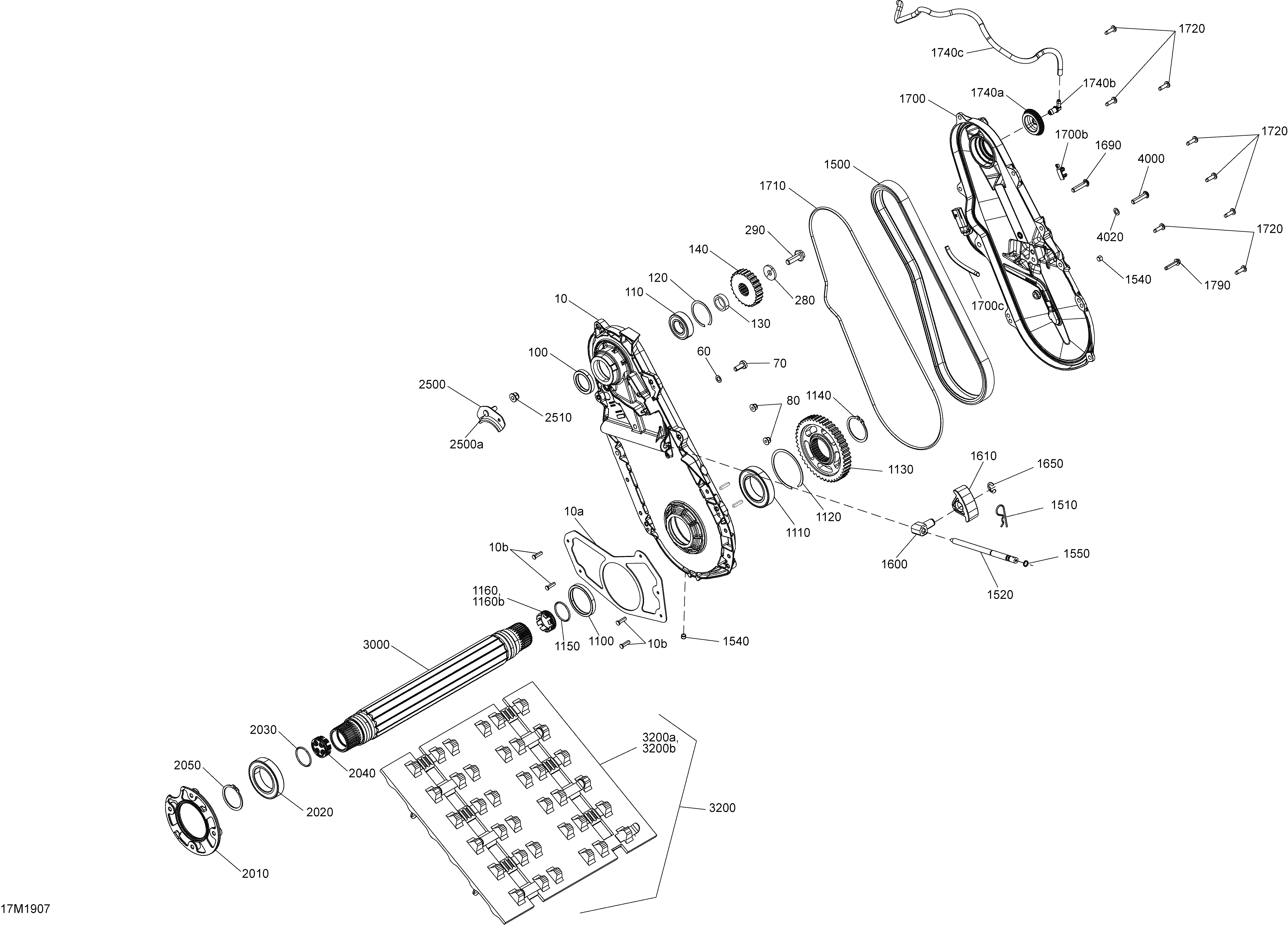

05- Drive для BRP Ski-Doo 002 - SUMMIT 600R E-TEC - 2019
-
№АртикулНазвание
-
10504153617 Chaincase Ass'y. Includes 10 to 10bChaincase Ass'y. Includes 10 to 10b
-
10a504153560 Plate Ass'yPlate Ass'y
-
10b233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
60504082900 WasherWasher
-
70250000740 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
80233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
100293200168 Oil SealOil Seal
-
110293350115 Ball BearingBall Bearing
-
120504152576 CirclipCirclip
-
130504152628 ShimShim
-
140504096200 Sprocket, 21 TeethSprocket, 21 Teeth
-
280504152784 Spring Washer M10Spring Washer M10
-
290207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
1100293200159 Oil SealOil Seal
-
1110293350059 Ball BearingBall Bearing
-
1120504152582 CirclipCirclip
-
1130504152971 Sprocket, 51 Teeth. SKU - CXKA - CXKB - CXKCSprocket, 51 Teeth. SKU - CXKA - CXKB - CXKC
-
1130504152971 Sprocket, 51 Teeth. SKU - CXKD - CXKE - CXKFSprocket, 51 Teeth. SKU - CXKD - CXKE - CXKF
-
1130504153778 Sprocket, 53 Teeth. SKU - CCKG - CCKH - CCKKSprocket, 53 Teeth. SKU - CCKG - CCKH - CCKK
-
1130504153778 Sprocket, 53 Teeth. SKU - CCKJ - CCKL - CCKC - CCKDSprocket, 53 Teeth. SKU - CCKJ - CCKL - CCKC - CCKD
-
1130504153778 Sprocket, 53 Teeth. SKU - CCKA - CCKB - CCKE -CCKFSprocket, 53 Teeth. SKU - CCKA - CCKB - CCKE -CCKF
-
1140504152572 CirclipCirclip
-
1150293300201 O-RingO-Ring
-
1160504153696 Magnetic Cap Ass'y. Includes 1160 to 1160aMagnetic Cap Ass'y. Includes 1160 to 1160a
-
1160a504153697 Magnetic CapMagnetic Cap
-
1500504153397 Drive Chain, 116 LinksDrive Chain, 116 Links
-
1510414575600 Hair PinHair Pin
-
1520504153760 Adjustment ScrewAdjustment Screw
-
1540250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
1545504153704 Magnetic PlugMagnetic Plug
-
1550293300202 O-RingO-Ring
-
1600504153559 TensionerTensioner
-
1610504153312 Slider ChainSlider Chain
-
1650293370105 CirclipCirclip
-
1690250000764 Hex. Button Head Screw M8 X 1.25 X 35Hex. Button Head Screw M8 X 1.25 X 35
-
1700504153897 Chain Case Cover Ass'y. Includes 1700 to 1700cChain Case Cover Ass'y. Includes 1700 to 1700c
-
1700b515178223 ClipClip
-
1700c415130141 SleeveSleeve
-
1710293300200 O-RingO-Ring
-
1720250001012 Torx T-30 Pan HD Taptite M6X20Torx T-30 Pan HD Taptite M6X20
-
1740504153535 Cap Ass'y. Includes 1740 to 1740cCap Ass'y. Includes 1740 to 1740c
-
1740a504152860 CapCap
-
1740b414580700 Male ConnectorMale Connector
-
1740c415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)Hose, Polyurethane, iD 5.7mm (10M Roll)
-
1790250001015 Flanged Hex. Screw M6 X 35Flanged Hex. Screw M6 X 35
-
2030293300201 O-RingO-Ring
-
2040504153697 Magnetic CapMagnetic Cap
-
2050504152572 CirclipCirclip
-
2500504153695 Bearing Housing Ass'y. Includes 2500 to 2500aBearing Housing Ass'y. Includes 2500 to 2500a
-
2510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3000504153836 Axle Drive Ass'y. SKU - CCKG - CCKH - CCKK. Includes 3000 to 3000bAxle Drive Ass'y. SKU - CCKG - CCKH - CCKK. Includes 3000 to 3000b
-
3000504153836 Axle Drive Ass'y. SKU - CCKJ - CCKL - CCKC - CCKD. Includes 3000 to 3000bAxle Drive Ass'y. SKU - CCKJ - CCKL - CCKC - CCKD. Includes 3000 to 3000b
-
3000504153836 Axle Drive Ass'y. SKU - CCKA - CCKB - CCKE -CCKF. Includes 3000 to 3000bAxle Drive Ass'y. SKU - CCKA - CCKB - CCKE -CCKF. Includes 3000 to 3000b
-
3000504153830 Axle Drive Ass'y. SKU - CXKA - CXKB - CXKC. Includes 3000 to 3000bAxle Drive Ass'y. SKU - CXKA - CXKB - CXKC. Includes 3000 to 3000b
-
3000504153830 Axle Drive Ass'y. SKU - CXKD - CXKE - CXKF. Includes 3000 to 3000bAxle Drive Ass'y. SKU - CXKD - CXKE - CXKF. Includes 3000 to 3000b
-
3000a504153426 Retaining RingRetaining Ring
-
3000b293350059 Ball BearingBall Bearing
-
3200504153198 Track Ass'y 16'' X 146'' X 2.50''. SKU - CXKA - CXKB - CXKC. Includes 3200 to 3200bTrack Ass'y 16'' X 146'' X 2.50''. SKU - CXKA - CXKB - CXKC. Includes 3200 to 3200b
-
3200504153198 Track Ass'y 16'' X 146'' X 2.50''. SKU - CXKD - CXKE - CXKF. Includes 3200 to 3200bTrack Ass'y 16'' X 146'' X 2.50''. SKU - CXKD - CXKE - CXKF. Includes 3200 to 3200b
-
3200504153791 Track Ass'y 16'' X 154'' X 2.50''. SKU - CCKG - CCKH - CCKK. Includes 3200 to 3200bTrack Ass'y 16'' X 154'' X 2.50''. SKU - CCKG - CCKH - CCKK. Includes 3200 to 3200b
-
3200504153791 Track Ass'y 16'' X 154'' X 2.50''. SKU - CCKJ - CCKL - CCKC - CCKD. Includes 3200 to 3200bTrack Ass'y 16'' X 154'' X 2.50''. SKU - CCKJ - CCKL - CCKC - CCKD. Includes 3200 to 3200b
-
3200504153791 Track Ass'y 16'' X 154'' X 2.50''. SKU - CCKA - CCKB - CCKE -CCKF. Includes 3200 to 3200bTrack Ass'y 16'' X 154'' X 2.50''. SKU - CCKA - CCKB - CCKE -CCKF. Includes 3200 to 3200b
-
3200504153785 Track Ass'y 16'' X 154'' X 3''. SKU - CCKG - CCKH - CCKK. Includes 3200 to 3200bTrack Ass'y 16'' X 154'' X 3''. SKU - CCKG - CCKH - CCKK. Includes 3200 to 3200b
-
3200504153785 Track Ass'y 16'' X 154'' X 3''. SKU - CCKJ - CCKL - CCKC - CCKD. Includes 3200 to 3200bTrack Ass'y 16'' X 154'' X 3''. SKU - CCKJ - CCKL - CCKC - CCKD. Includes 3200 to 3200b
-
3200504153785 Track Ass'y 16'' X 154'' X 3''. SKU - CCKA - CCKB - CCKE -CCKF. Includes 3200 to 3200bTrack Ass'y 16'' X 154'' X 3''. SKU - CCKA - CCKB - CCKE -CCKF. Includes 3200 to 3200b
-
3200a415130083 Track GuideTrack Guide
-
3200b415130084 CleatCleat
-
4000250000764 Hex. Button Head Screw M8 X 1.25 X 35Hex. Button Head Screw M8 X 1.25 X 35
-
4020504082900 WasherWasher
