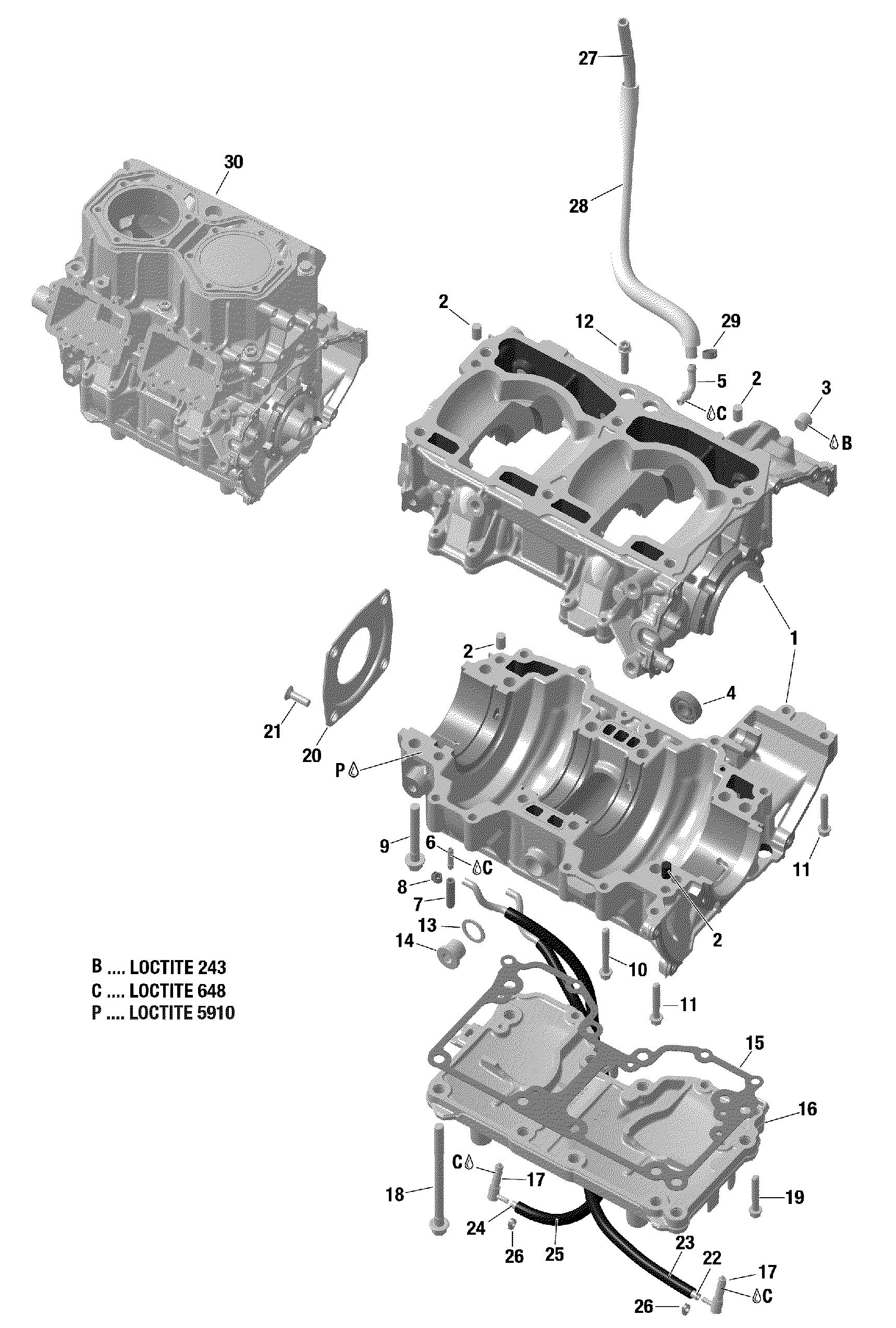

01- Crankcase для BRP Ski-Doo 003 - SUMMIT 850 E-TEC - 2019
-
№АртикулНазвание
-
1>6420893773 Crankcase Ass'yCrankcase Ass'y
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420840658 Plug Screw M12x1,5Plug Screw M12x1,5
-
4420232100 Ball BearingBall Bearing
-
5420924523 Fitting 90DFitting 90D
-
6420924159 FittingFitting
-
7420960771 Closure CapClosure Cap
-
8420853138 Clamp 5.8-7.0MMClamp 5.8-7.0MM
-
9420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
10420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
11420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
12420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
13420430622 O-RingO-Ring
-
14420640457 Plug ScrewPlug Screw
-
15420430072 Gasket Engine SupportGasket Engine Support
-
16420812688 Engine SupportEngine Support
-
17420956510 Check ValveCheck Valve
-
18420941517 Hex. Screw M8 X 105Hex. Screw M8 X 105
-
19420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
20420812421 Oil Seal CoverOil Seal Cover
-
21420941436 Screw M6 X 20Screw M6 X 20
-
22420201541 Oil Line 445MMOil Line 445MM
-
23420460042 Tube 390MMTube 390MM
-
24420201542 Oil Line 365MMOil Line 365MM
-
25417223021 Slider ShoeSlider Shoe
-
26420851508 ClampClamp
-
27420201551 Oil Line 310MMOil Line 310MM
-
28420460047 Protector TubeProtector Tube
-
29420853653 ClampClamp
-
30420084903 ShortBlock. Except Shot. Except FinlandShortBlock. Except Shot. Except Finland
-
30420084911 ShortBlock SHOT. Shot. Except FinlandShortBlock SHOT. Shot. Except Finland
-
30300084903 ShortBlock. Except Shot. FinlandShortBlock. Except Shot. Finland
-
30300084911 ShortBlock SHOT. Shot. FinlandShortBlock SHOT. Shot. Finland
