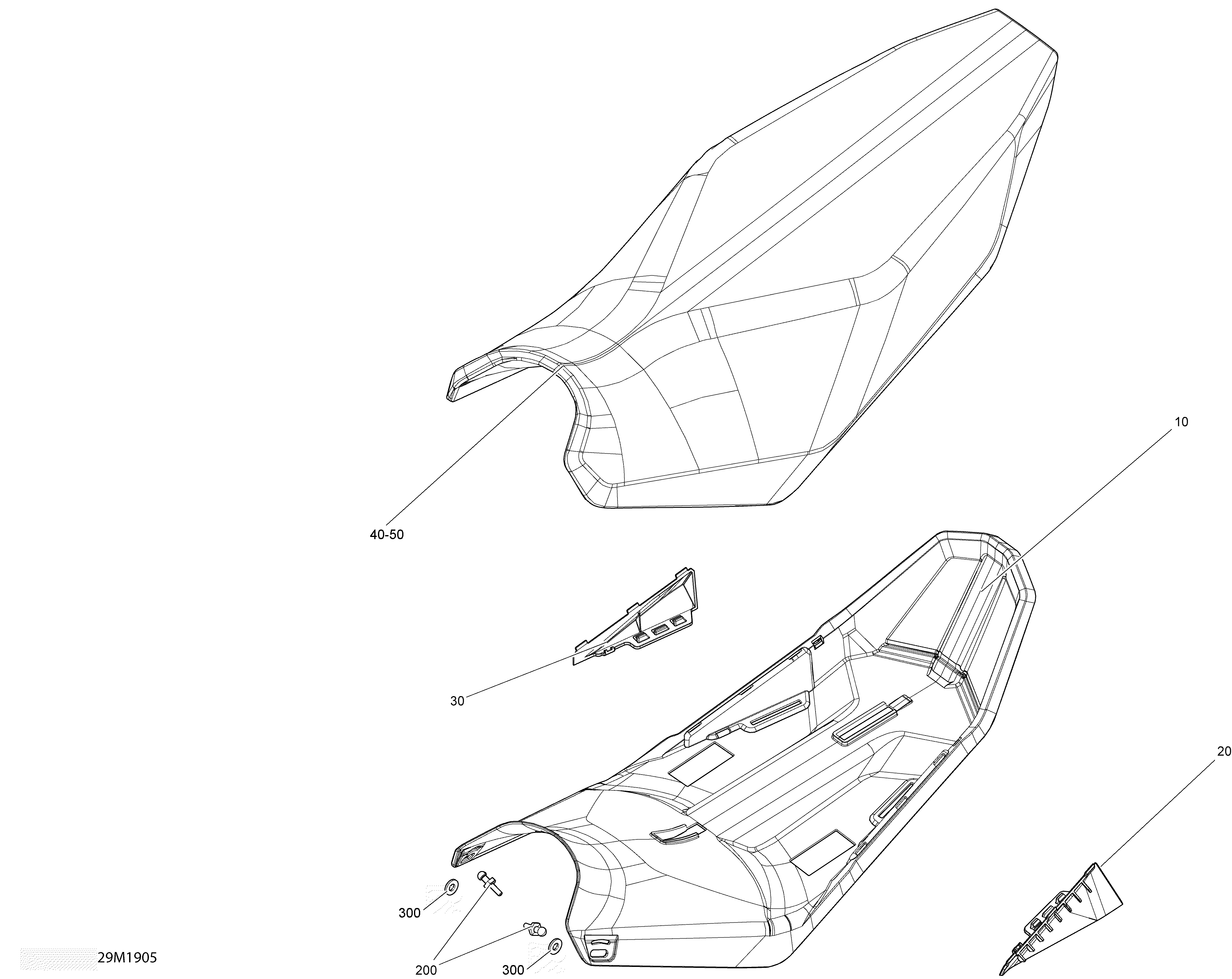

09- Seat - Package X для BRP Ski-Doo 003 - SUMMIT 850 E-TEC - 2019
-
№АртикулНазвание
-
10510006537 Seat BaseSeat Base
-
40510006538 FoamFoam
-
50510005997 Seat CoverSeat Cover
-
50510006467 Seat Cover. Deep BlackSeat Cover. Deep Black
-
50510006637 Seat Cover. Can-am RedSeat Cover. Can-am Red
-
50510006638 Seat Cover. Gulfstream BlueSeat Cover. Gulfstream Blue
-
200207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
300250200140 WasherWasher
-
500224061201 Flat Washer. Not ShownFlat Washer. Not Shown
-
510207361644 Hex. Screw M6 X 16, Scotch Grip. Not ShownHex. Screw M6 X 16, Scotch Grip. Not Shown
-
520207563044 Hex. Flanged Screw M6 X 30, Scotch Grip. Not ShownHex. Flanged Screw M6 X 30, Scotch Grip. Not Shown
