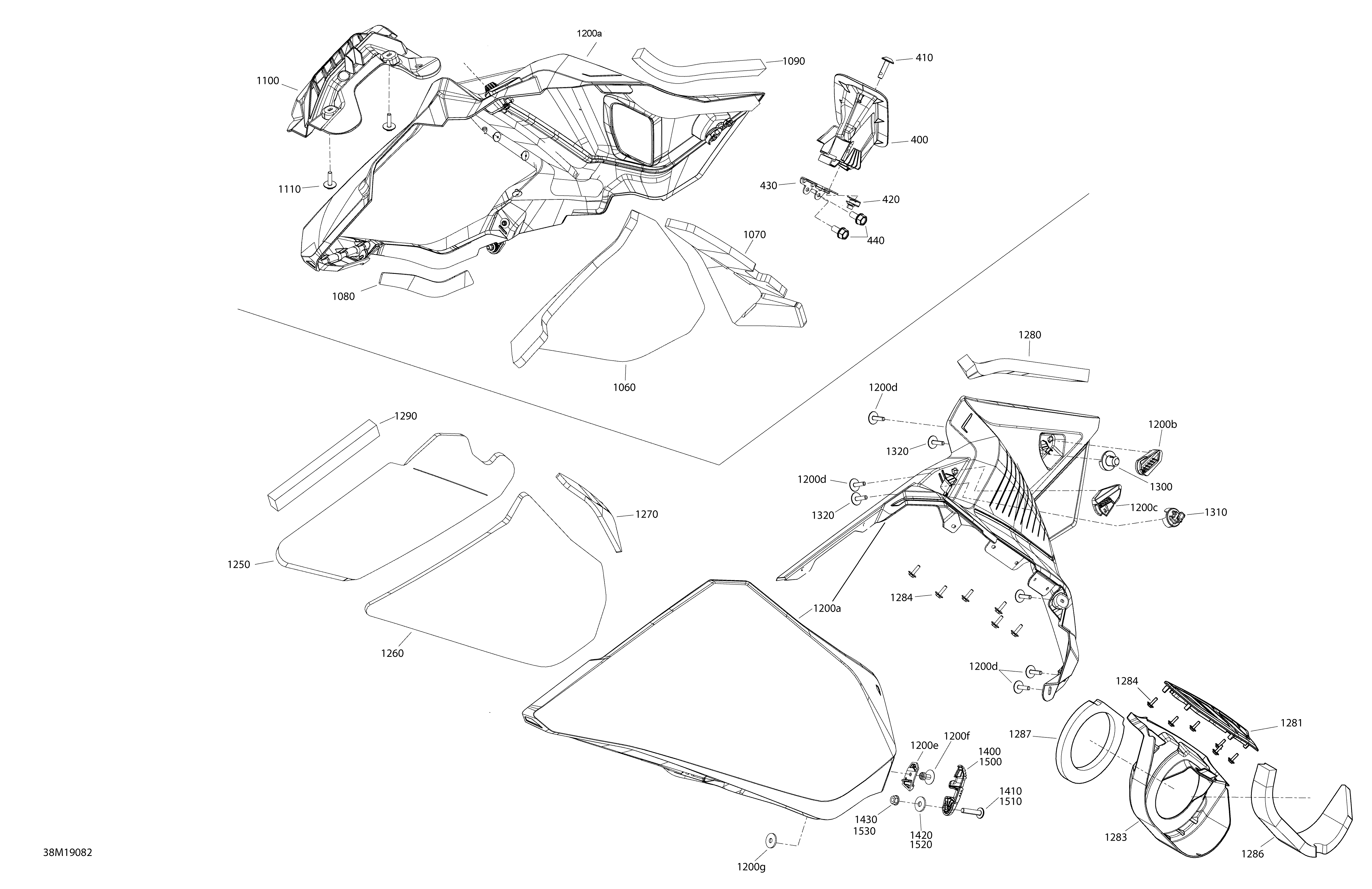

09- Hood - Panel Section для BRP Ski-Doo 003 - SUMMIT 850 E-TEC - 2019
-
№АртикулНазвание
-
400517306759 RH Console. Except Electric StartRH Console. Except Electric Start
-
410250000586 Torx Truss M5 X 20. Except Electric StartTorx Truss M5 X 20. Except Electric Start
-
420250000958 Panel Nut M5 X 0.8. Except Electric StartPanel Nut M5 X 0.8. Except Electric Start
-
430517306315 Rope Guide. Except Electric StartRope Guide. Except Electric Start
-
440210261250 Hex. Flanged Screw M6 X 12. Except Electric StartHex. Flanged Screw M6 X 12. Except Electric Start
-
1000h517305861 Deep Black, RH Panel TrimDeep Black, RH Panel Trim
-
1000j517305109 Rivet PlateRivet Plate
-
1060517306188 RH Central Panel FoamRH Central Panel Foam
-
1070517306586 RH Rear Panel FoamRH Rear Panel Foam
-
1080517306262 Rubber SheetRubber Sheet
-
1090517306480 RH Rear Panel FoamRH Rear Panel Foam
-
1100517305862 Deep Black, RH GrillDeep Black, RH Grill
-
1200a517306699 RH Panel. Can-am Red - Except Electric StartRH Panel. Can-am Red - Except Electric Start
-
1200a517306646 RH Panel. Can-am Red - Electric StartRH Panel. Can-am Red - Electric Start
-
1200a517306004 Black, RH Panel. Deep Black - Except Electric StartBlack, RH Panel. Deep Black - Except Electric Start
-
1200a517305750 Black, RH Panel. Deep Black - Electric StartBlack, RH Panel. Deep Black - Electric Start
-
1200a517306393 Gulfstream Blue, RH Panel. Gulfstream Blue - Except Electric StartGulfstream Blue, RH Panel. Gulfstream Blue - Except Electric Start
-
1200a517306399 Gulfstream Blue, RH Panel. Gulfstream Blue - Electric StartGulfstream Blue, RH Panel. Gulfstream Blue - Electric Start
-
1200a517306648 Can Am Red LH Panel. Can-am Red ItemCan Am Red LH Panel. Can-am Red Item
-
1200a517306884 Black, LH Panel. Deep Black ItemBlack, LH Panel. Deep Black Item
-
1200a517306887 Gulfstream Blue, LH Panel. Gulfstream Blue ItemGulfstream Blue, LH Panel. Gulfstream Blue Item
-
1200b517305774 LH Rear LatchLH Rear Latch
-
1200b517305773 RH Rear LatchRH Rear Latch
-
1200c517305980 LH Front LatchLH Front Latch
-
1200c517305979 RH Front LatchRH Front Latch
-
1200d250000725 Screw M4 X 16Screw M4 X 16
-
1200e517306312 LH HookLH Hook
-
1200e517306311 RH HookRH Hook
-
1200f293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200g517124300 WasherWasher
-
1110250000725 Screw M4 X 16Screw M4 X 16
-
1250517305769 LH Front Panel FoamLH Front Panel Foam
-
1260517306189 LH Central Panel FoamLH Central Panel Foam
-
1280517306479 LH Rear Panel FoamLH Rear Panel Foam
-
1281517306937 LH GrillLH Grill
-
1282732610072 Push Nut. Not ShownPush Nut. Not Shown
-
1283517306938 Ventilation DuctVentilation Duct
-
1284250000725 Screw M4 X 16Screw M4 X 16
-
1286517306960 Duct FoamDuct Foam
-
1287517306961 Duct FoamDuct Foam
-
1290517306594 FoamFoam
-
1300517305985 Rear StudRear Stud
-
1310517305988 Front StudFront Stud
-
1320250000725 Screw M4 X 16Screw M4 X 16
-
1400517306309 RH Lower LatchRH Lower Latch
-
1410250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
1420250200140 WasherWasher
-
1430233151414 Nut Flange Hex. M5Nut Flange Hex. M5
-
1500517306310 LH Lower LatchLH Lower Latch
-
1510250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
1520250200140 WasherWasher
-
1530233151414 Nut Flange Hex. M5Nut Flange Hex. M5
