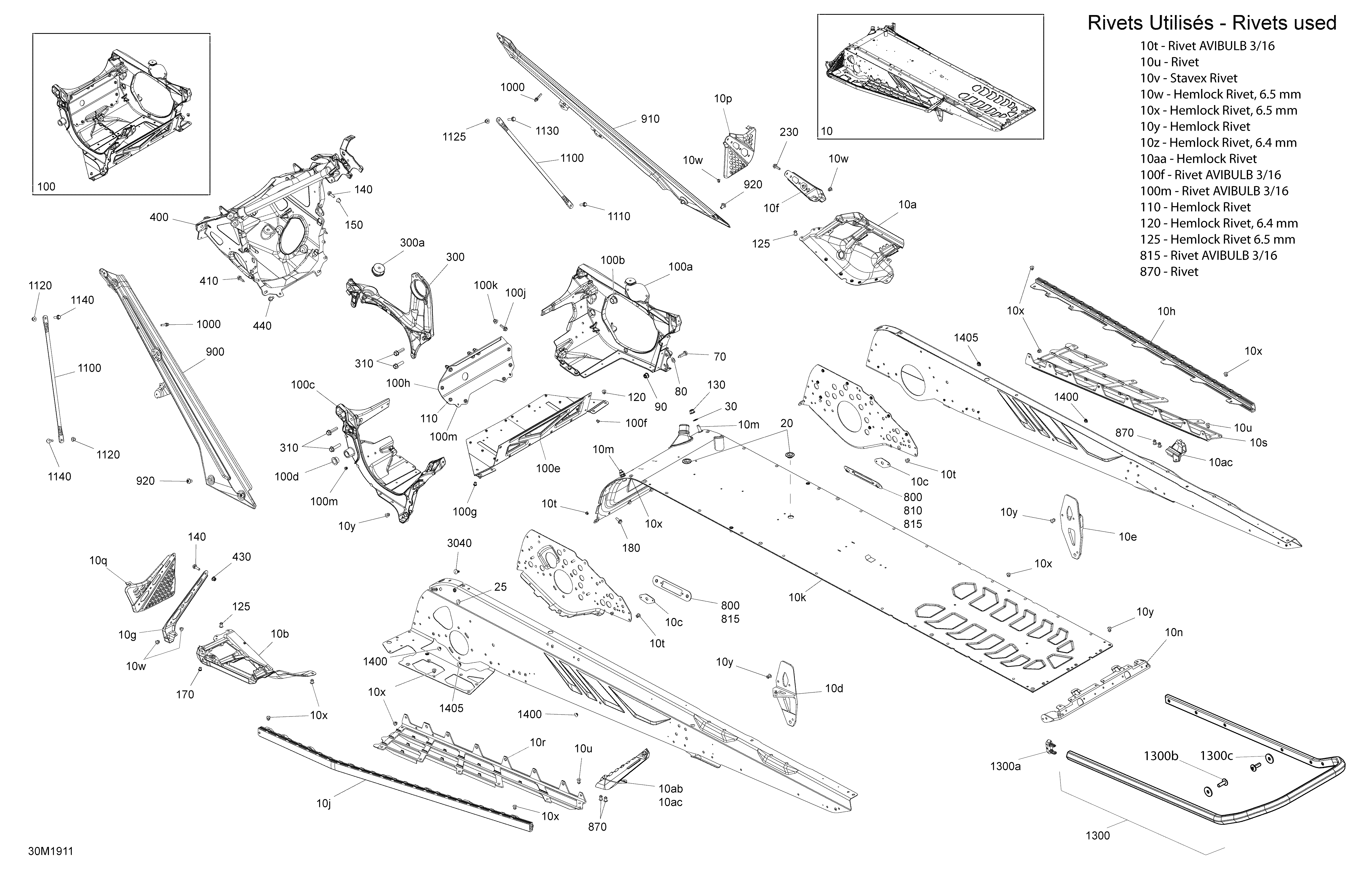

09- Frame - 154 - Package X для BRP Ski-Doo 003 - SUMMIT 850 E-TEC - 2019
-
№АртикулНазвание
-
10415130250 Module Chassis Tunnel 154'' B-16. Black Frame. Includes 10 to 10aaModule Chassis Tunnel 154'' B-16. Black Frame. Includes 10 to 10aa
-
10415130251 Module Chassis Tunnel 154'' B-10. Red Frame. Includes 10 to 10aaModule Chassis Tunnel 154'' B-10. Red Frame. Includes 10 to 10aa
-
10a518330680 Deep Black, RH Footrest ReinforcementDeep Black, RH Footrest Reinforcement
-
10b518330679 Deep Black, LH Footrest ReinforcementDeep Black, LH Footrest Reinforcement
-
10c518326647 Reinforcement PlateReinforcement Plate
-
10d518329053 LH Suspension BracketLH Suspension Bracket
-
10e518329054 RH Suspension BracketRH Suspension Bracket
-
10f518330072 RH Footrest ReinforcementRH Footrest Reinforcement
-
10g518329049 LH Footrest ReinforcementLH Footrest Reinforcement
-
10h518328737 RH RollerRH Roller
-
10j518328738 LH RollerLH Roller
-
10k415130271 Kit Radiator Tunnel 154''Kit Radiator Tunnel 154''
-
10m250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10n518328990 Rear CapRear Cap
-
10p518328460 RH FootrestRH Footrest
-
10q518328463 LH FootrestLH Footrest
-
10r518328471 LH FootrestLH Footrest
-
10s518328473 RH FootrestRH Footrest
-
10t293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
10u293150183 RivetRivet
-
10v293150144 Stavex RivetStavex Rivet
-
10w293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10x293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10y293150147 Hemlock RivetHemlock Rivet
-
10z293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10aa293150147 Hemlock RivetHemlock Rivet
-
10ab518329123 Black - LH Roller Link. Black FrameBlack - LH Roller Link. Black Frame
-
10ab518330523 Can-Am Red, LH Rear Footrest Reinforceme. Red FrameCan-Am Red, LH Rear Footrest Reinforceme. Red Frame
-
10ac518329124 Black, RH Roller Link. Black FrameBlack, RH Roller Link. Black Frame
-
10ac518330522 Red, RH Rear Footrest Reinforcement. Red FrameRed, RH Rear Footrest Reinforcement. Red Frame
-
20293730052 Black, PlugBlack, Plug
-
25250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
30506151252 WasherWasher
-
70250000942 Hex Screw M8 X 30Hex Screw M8 X 30
-
80234081410 Flat Washer 8 mmFlat Washer 8 mm
-
90233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
100518330635 Engine Chassis Module Ass'y. Includes 100 to 100mEngine Chassis Module Ass'y. Includes 100 to 100m
-
100a518330554 Side Member RH Assy. Includes 100a to 100bSide Member RH Assy. Includes 100a to 100b
-
100b505073317 Leg CushionLeg Cushion
-
100c518330557 Side Member LH Assy. Includes 100c to 100dSide Member LH Assy. Includes 100c to 100d
-
100d505073317 Leg CushionLeg Cushion
-
100e518330074 Bottom PlateBottom Plate
-
100f293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
100g293450268 Insert M5 X 0.8Insert M5 X 0.8
-
100h518330100 Front MemberFront Member
-
100j207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100k233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
100m293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
110293150147 Hemlock RivetHemlock Rivet
-
120293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
125293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
130233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
150233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
170293450268 Insert M5 X 0.8Insert M5 X 0.8
-
180207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
230207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
300518328693 Brace Ass'y. Includes 300 to 300aBrace Ass'y. Includes 300 to 300a
-
300a512060295 Rubber MountRubber Mount
-
310250001060 Screw-Pan HD.Torx M8X30Screw-Pan HD.Torx M8X30
-
400518330573 S ModuleS Module
-
410250001051 Screw-Forming Hex.HD.FL. M6 X 16Screw-Forming Hex.HD.FL. M6 X 16
-
420207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
430233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
440207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
800518329480 Member Fixation Plate. North AmericaMember Fixation Plate. North America
-
800518330299 LH Member Fixation Plate. EuropeLH Member Fixation Plate. Europe
-
810518330300 RH Member Fixation Plate. EuropeRH Member Fixation Plate. Europe
-
815293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
860518329123 Black - LH Roller Link. Black FrameBlack - LH Roller Link. Black Frame
-
860518330523 Can-Am Red, LH Rear Footrest Reinforceme. Red FrameCan-Am Red, LH Rear Footrest Reinforceme. Red Frame
-
865518329124 Black, RH Roller Link. Black FrameBlack, RH Roller Link. Black Frame
-
865518330522 Red, RH Rear Footrest Reinforcement. Red FrameRed, RH Rear Footrest Reinforcement. Red Frame
-
870293150183 RivetRivet
-
900518329077 Black, LH Member. Black ItemBlack, LH Member. Black Item
-
900518330136 Blue, LH Member. Blue ItemBlue, LH Member. Blue Item
-
900518330879 Red, LH Member. Red ItemRed, LH Member. Red Item
-
910518330880 Right Member Black Assembly. Black ItemRight Member Black Assembly. Black Item
-
910518330884 Red, RH Member. Red ItemRed, RH Member. Red Item
-
910518330887 Gulfstream Blue, RH Member. Blue ItemGulfstream Blue, RH Member. Blue Item
-
920250000887 Pan Head Torx Screw M8 X 12Pan Head Torx Screw M8 X 12
-
1000250300629 Stud M5 X 20Stud M5 X 20
-
1100518329974 Upper Colomn SupportUpper Colomn Support
-
1110207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
1120233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1125233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1130207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1300518328501 Rear Bumper. Includes 1300 to 1300aRear Bumper. Includes 1300 to 1300a
-
1300a520001612 CapCap
-
1400293730047 Black Dart 8 mmBlack Dart 8 mm
-
1405293730060 Black Dart 10 mmBlack Dart 10 mm
-
3040293730079 DartDart
-
2000250000779 Torx Screw M6 X 1.0 X 18, Scotch Grip. Not ShownTorx Screw M6 X 1.0 X 18, Scotch Grip. Not Shown
-
2010224061201 Flat Washer. Not ShownFlat Washer. Not Shown
