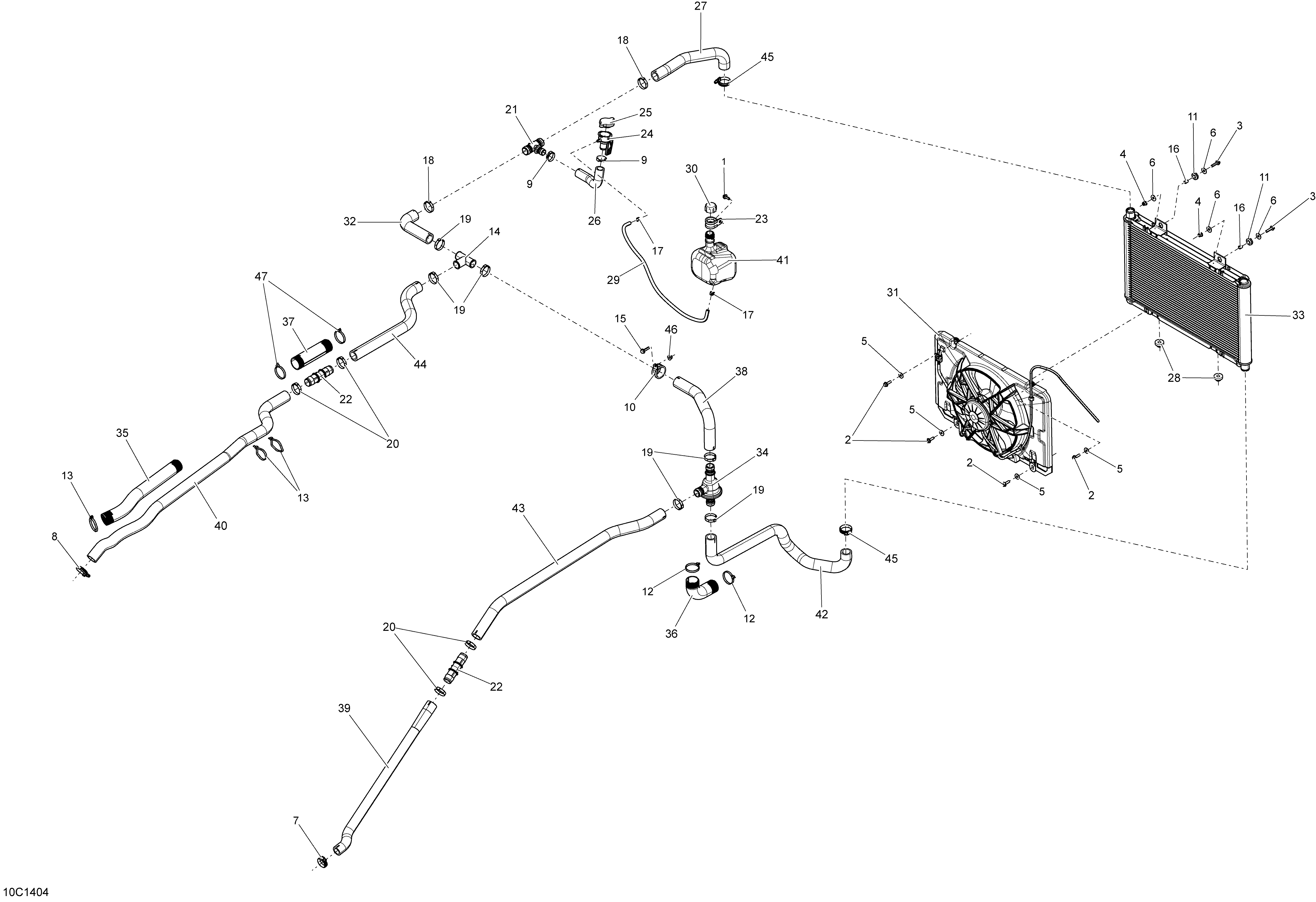

01- Cooling System _10C1404 для BRP Commander MAX 1000_DPS, XT - 2014
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
5234062410 Flat Washer 6 mmFlat Washer 6 mm
-
6250200082 Flat WasherFlat Washer
-
7293650098 Norma Gear ClampNorma Gear Clamp
-
8293650098 Norma Gear ClampNorma Gear Clamp
-
9293650099 Crimp ClampCrimp Clamp
-
10293650218 Hose RetainerHose Retainer
-
11293720053 GrommetGrommet
-
12293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
13293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
14509000219 T-FittingT-Fitting
-
15207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
16293900105 BushingBushing
-
17414554800 Spring ClampSpring Clamp
-
18509000162 Gear ClampGear Clamp
-
19509000162 Gear ClampGear Clamp
-
20509000162 Gear ClampGear Clamp
-
21509000372 T-FittingT-Fitting
-
22509000914 FittingFitting
-
23709200036 Hose AnchorHose Anchor
-
24709200179 Filler NeckFiller Neck
-
25709200207 Pressure CapPressure Cap
-
26709200264 Filler Neck HoseFiller Neck Hose
-
27709200265 Radiator Outlet HoseRadiator Outlet Hose
-
28709200285 GrommetGrommet
-
29415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
30709200328 Tank CapTank Cap
-
31709200375 Fan Ass'yFan Ass'y
-
32709200380 Intermediate HoseIntermediate Hose
-
33709200395 RadiatorRadiator
-
34709200406 ThermostatThermostat
-
35515176260 Tubing 35mmTubing 35mm
-
36515176260 Tubing 35mmTubing 35mm
-
37515176260 Tubing 35mmTubing 35mm
-
38709200447 HoseHose
-
39709200496 Pump HosePump Hose
-
40709200497 HoseHose
-
41709200504 Coolant TankCoolant Tank
-
42709200513 Radiator Inlet HoseRadiator Inlet Hose
-
43709200519 Pump HosePump Hose
-
44709200520 Intermediate HoseIntermediate Hose
-
45293650098 Norma Gear ClampNorma Gear Clamp
-
46233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
47293750008 Tie-Rap 350 mmTie-Rap 350 mm
