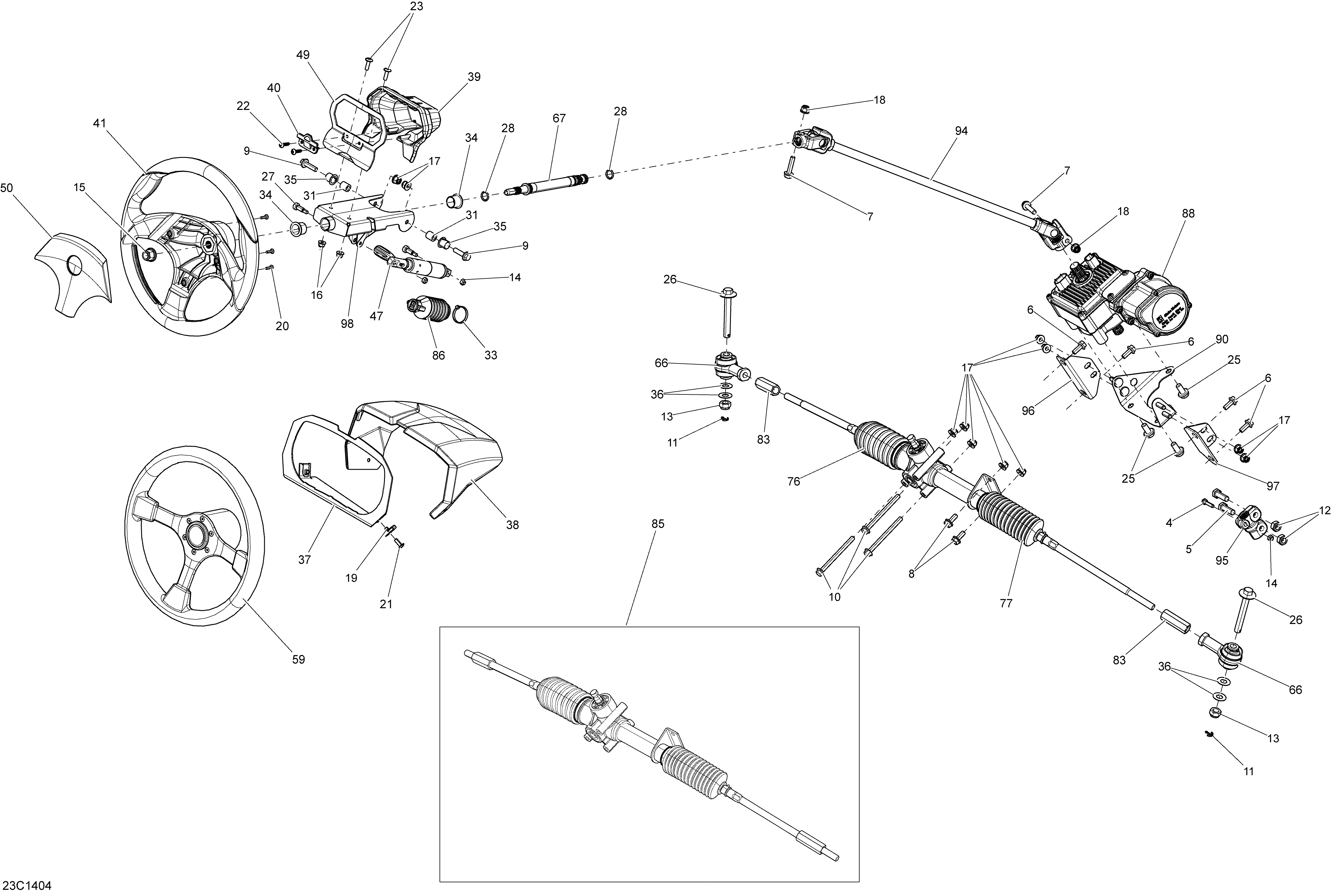

07- Steering _23C1404 для BRP Commander MAX 1000_DPS, XT - 2014
-
№АртикулНазвание
-
4207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
5207103586 Hex. Screw M10 X 35Hex. Screw M10 X 35
-
6207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
7207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
8207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
9207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
10207689534 Hex. Flanged Scew M8 X 95Hex. Flanged Scew M8 X 95
-
11211400017 Cotter PinCotter Pin
-
12232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
13232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
14232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
15233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
19250000048 Panel Nut M6 X 1.0. Model-XTPanel Nut M6 X 1.0. Model-XT
-
20250000084 Phillips Screw K40 X 16. Model-DPSPhillips Screw K40 X 16. Model-DPS
-
21250000129 Torx Screw M6 X 16. Model-XTTorx Screw M6 X 16. Model-XT
-
22250000297 Truss Head Torx Screw K50 X 20. Model-DPSTruss Head Torx Screw K50 X 20. Model-DPS
-
23250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
25250000601 Hex. Flanged Screw M10 X 20, Scotch GripHex. Flanged Screw M10 X 20, Scotch Grip
-
26250000657 Hexagonal Screw M12 X 88Hexagonal Screw M12 X 88
-
27250000649 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
28293300144 O-RingO-Ring
-
31293900106 BushingBushing
-
33414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
34415108000 CushionCushion
-
35705600799 BushingBushing
-
36250200086 Flat WasherFlat Washer
-
37707900013 Cluster Support. Model-XTCluster Support. Model-XT
-
38707900124 Upper Cluster Cover. Model-XTUpper Cluster Cover. Model-XT
-
39709400514 Speedometer Cover. Model-DPSSpeedometer Cover. Model-DPS
-
40709400573 Latch Indicator Cover. Model-DPSLatch Indicator Cover. Model-DPS
-
41709400650 Steering Wheel. Model-DPSSteering Wheel. Model-DPS
-
47709400656 Adjustment CylinderAdjustment Cylinder
-
49709400760 Cluster Support. Model-DPSCluster Support. Model-DPS
-
50709400780 Steering Center. Model-DPSSteering Center. Model-DPS
-
59715001134 Steering Wheel Kit. Model-XTSteering Wheel Kit. Model-XT
-
66709401134 Ball JointBall Joint
-
67709401167 Steering ShaftSteering Shaft
-
76715900235 Boot Kit, Pinion SideBoot Kit, Pinion Side
-
77715900236 Boot Kit, Tube SideBoot Kit, Tube Side
-
83715900237 Nut Tie Rod EndNut Tie Rod End
-
85709401185 Steering Ass'ySteering Ass'y
-
86709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
88709401406 Power SteeringPower Steering
-
90709401296 SupportSupport
-
94709401326 Steering ColumnSteering Column
-
95709401328 CouplingCoupling
-
96709401336 LH DPS SupportLH DPS Support
-
97709401337 RH DPS SupportRH DPS Support
-
98709401391 Painted Steering Wheel SupportPainted Steering Wheel Support
