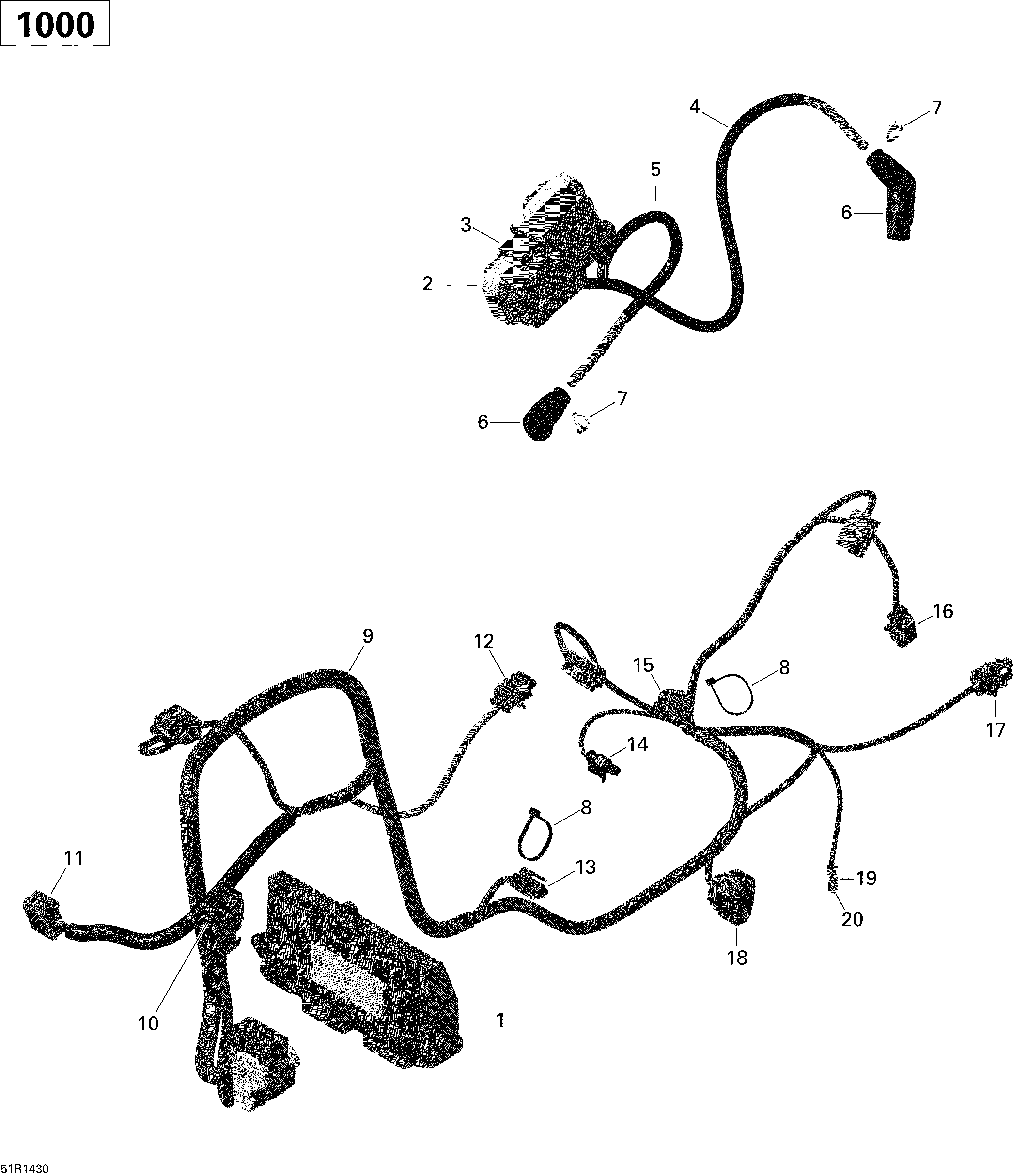

10- Engine Harness And Electronic Module _51R1430 для BRP Commander MAX 1000_DPS, XT - 2014
-
№АртикулНазвание
-
1420264385 ECM Connector. Model-North AmericaECM Connector. Model-North America
-
2278001546 Ignition Coil. Includes 2 to 3Ignition Coil. Includes 2 to 3
-
3710000568 HousingHousing
-
4420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
5420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
6420265248 Spark Plug ConnectorSpark Plug Connector
-
7420866710 Tie RapTie Rap
-
8420866714 Tie RapTie Rap
-
9420666550 Engine Wiring Harness. Includes 9 to 20Engine Wiring Harness. Includes 9 to 20
-
10710001927 HousingHousing
-
11710001872 Housing, 6 PositionsHousing, 6 Positions
-
12278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
13278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
14278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
15278002378 Male HousingMale Housing
-
16278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
17278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
18710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
19278001007 Insulated SheathInsulated Sheath
-
20278001009 Female TerminalFemale Terminal
