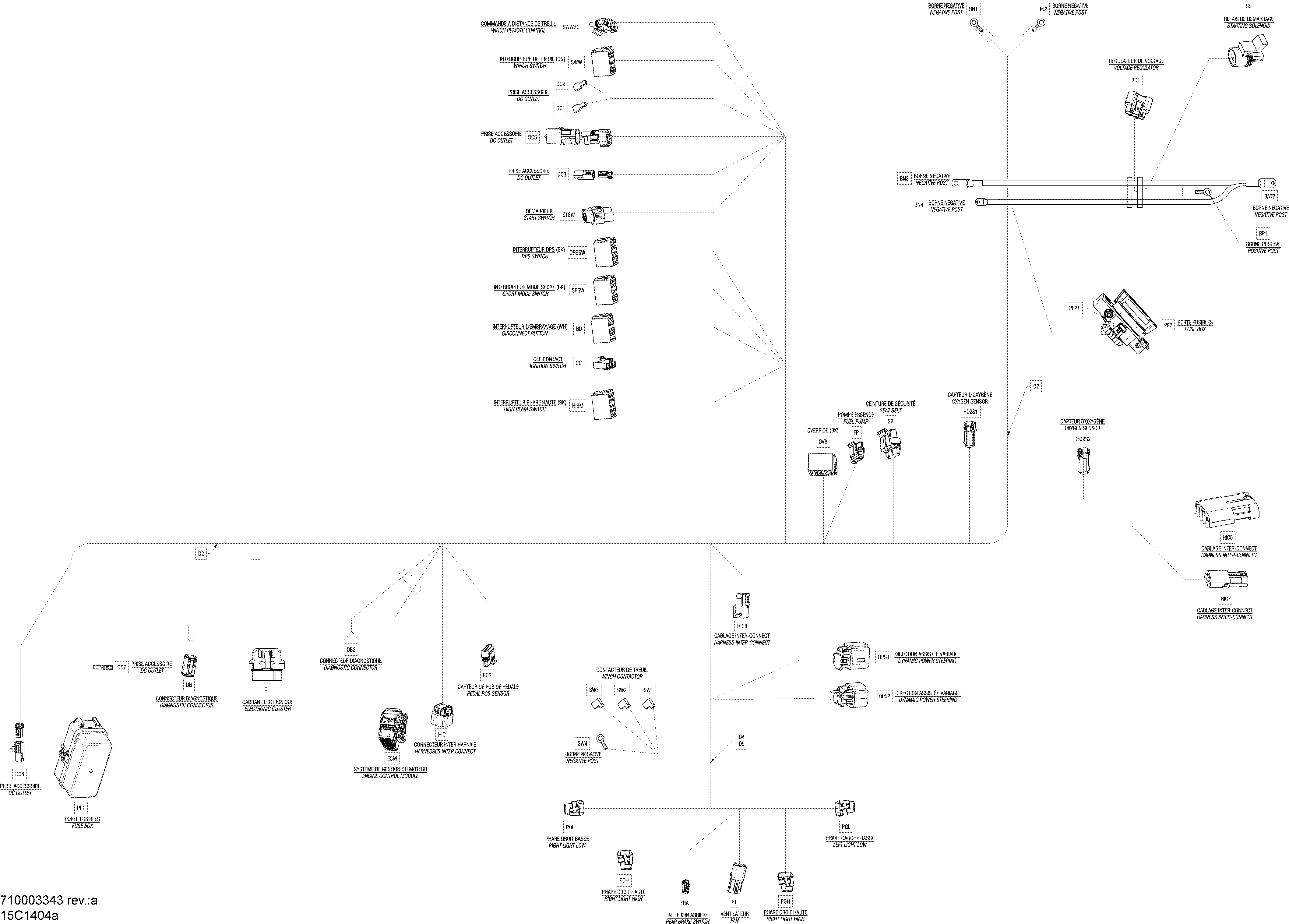

10- Electrical Harness Main_15C1404a для BRP Commander MAX 1000_DPS, XT - 2014
-
№АртикулНазвание
-
1710003343 Main Harness Ass'yMain Harness Ass'y
-
BAT2710000519 Open BarrelOpen Barrel
-
BD710002001 Housing ConnectorHousing Connector
-
BD710003047 TerminalTerminal
-
BN1710000913 TerminalTerminal
-
BN1710002589 Heat ShrinkHeat Shrink
-
BN2278001392 Open BarrelOpen Barrel
-
BN2710002589 Heat ShrinkHeat Shrink
-
BN3710000518 Open BarrelOpen Barrel
-
BN3710002577 Heat ShrinkHeat Shrink
-
BN4710000507 Flat Open BarilFlat Open Baril
-
BN4710002577 Heat ShrinkHeat Shrink
-
BP1710000913 TerminalTerminal
-
BP1710002589 Heat ShrinkHeat Shrink
-
CC710000848 LockLock
-
CC710000849 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
CC710001635 TerminalTerminal
-
CI515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CI515175802 Retainer BlockRetainer Block
-
CI515175803 Wire SealWire Seal
-
CI515175812 PlugPlug
-
CI710000399 Female HousingFemale Housing
-
CI710001131 Female TerminalFemale Terminal
-
D2409012700 DiodeDiode
-
D2710002589 Heat ShrinkHeat Shrink
-
D4409012700 DiodeDiode
-
D4710002589 Heat ShrinkHeat Shrink
-
D5409012700 DiodeDiode
-
D5710002589 Heat ShrinkHeat Shrink
-
DB278001665 Female TerminalFemale Terminal
-
DB278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
DB515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
DB2278001665 Female TerminalFemale Terminal
-
DC1409010800 Female TerminalFemale Terminal
-
DC2409010800 Female TerminalFemale Terminal
-
DC3515175231 Female TerminalFemale Terminal
-
DC3515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC3710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
DC4515175231 Female TerminalFemale Terminal
-
DC4515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC4710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
DC6278000216 Wire SealWire Seal
-
DC6278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC6278000218 Wire SealWire Seal
-
DC6278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
DC6409007300 Female TerminalFemale Terminal
-
DC6710000992 ClipClip
-
DC7278001007 Insulated SheathInsulated Sheath
-
DC7290964068 Female TerminalFemale Terminal
-
DPS1710001114 CapCap
-
DPS1710001161 HousingHousing
-
DPS1710001162 LockLock
-
DPS1710001163 Wire SealWire Seal
-
DPS1710001164 Female TerminalFemale Terminal
-
DPS1710001225 CapCap
-
DPS2278001325 Fuse HolderFuse Holder
-
DPS2710000113 Female TerminalFemale Terminal
-
DPS3710001157 HousingHousing
-
DPS3710001323 LockLock
-
DPSSW710002000 HousingHousing
-
DPSSW710003047 TerminalTerminal
-
ECM710001588 Female Terminal Housing, 48 CircuitsFemale Terminal Housing, 48 Circuits
-
ECM710001589 Female TerminalFemale Terminal
-
ECM710001591 CoverCover
-
ECM710001592 PlugPlug
-
ECM710001593 PlugPlug
-
ECM710001727 Female TerminalFemale Terminal
-
ECM710002713 Tie-Rap, 100mmTie-Rap, 100mm
-
FP278001013 Wire SealWire Seal
-
FP278001014 Female TerminalFemale Terminal
-
FP409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
FP515176621 Wire SealWire Seal
-
FP710001340 Female TerminalFemale Terminal
-
FRA515175231 Female TerminalFemale Terminal
-
FRA515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FT278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FT278000218 Wire SealWire Seal
-
FT409004300 Male TerminalMale Terminal
-
FT710000992 ClipClip
-
HIBM710002000 HousingHousing
-
HIBM710003047 TerminalTerminal
-
HIBM710003048 TerminalTerminal
-
HIC710001221 LockLock
-
HIC710001225 CapCap
-
HIC710001228 TerminalTerminal
-
HIC710001229 TerminalTerminal
-
HIC710001230 SealSeal
-
HIC710001233 SealSeal
-
HIC710001928 HousingHousing
-
HIC5278000222 Male TerminalMale Terminal
-
HIC5278000394 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
HIC5278000585 Wire Seal (20 Gauge) (Purple) (Packard)Wire Seal (20 Gauge) (Purple) (Packard)
-
HIC5710000992 ClipClip
-
HIC7278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
HIC7278000218 Wire SealWire Seal
-
HIC7409004300 Male TerminalMale Terminal
-
HIC7710000992 ClipClip
-
HIC8710003175 HousingHousing
-
HIC8710003177 HousingHousing
-
HO2S1278001482 SealSeal
-
HO2S1710002466 HousingHousing
-
HO2S1710002469 LockLock
-
HO2S1710002597 Gold TerminalGold Terminal
-
HO2S2278001482 SealSeal
-
HO2S2710002466 HousingHousing
-
HO2S2710002469 LockLock
-
HO2S2710002597 Gold TerminalGold Terminal
-
OVR710002000 HousingHousing
-
OVR710003047 TerminalTerminal
-
PDH710000918 Female TerminalFemale Terminal
-
PDH710001427 Wire SealWire Seal
-
PDH710002278 HousingHousing
-
PDH710002279 LockLock
-
PDL710000918 Female TerminalFemale Terminal
-
PDL710001427 Wire SealWire Seal
-
PDL710002278 HousingHousing
-
PDL710002279 LockLock
-
PF1278000999 Wire SealWire Seal
-
PF1278002172 FoamFoam
-
PF1415128501 SealSeal
-
PF1515176774 Relay, 30 AMPRelay, 30 AMP
-
PF1515176774 Relay, 30 AMPRelay, 30 AMP
-
PF1710000660 Fuse Box Ass'yFuse Box Ass'y
-
PF1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF1710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
PF1710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
PF1710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
PF1710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
PF1710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
PF1710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
PF1710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
PF1710000781 Fuse PullerFuse Puller
-
PF1710000836 Female TerminalFemale Terminal
-
PF1710000837 Female TerminalFemale Terminal
-
PF1710000840 CapCap
-
PF1710001026 Fuse CoverFuse Cover
-
PF1710001778 RelayRelay
-
PF1710001778 RelayRelay
-
PF1710001778 RelayRelay
-
PF1710002590 Fuse, 25 AmpsFuse, 25 Amps
-
PF1710002715 Logo Fuse RelayLogo Fuse Relay
-
PF2233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
PF2710001047 Fuse, 40 AMPFuse, 40 AMP
-
PF2710001048 Fuse, 50 AMPFuse, 50 AMP
-
PF2710001048 Fuse, 50 AMPFuse, 50 AMP
-
PF2710001633 LockLock
-
PF2710001636 TerminalTerminal
-
PF2710001905 Terminal JointTerminal Joint
-
PF2710001996 HousingHousing
-
PF2710003134 Seal JointSeal Joint
-
PF21278001392 Open BarrelOpen Barrel
-
PF21710000526 Protector CapProtector Cap
-
PF21710002589 Heat ShrinkHeat Shrink
-
PGH710000918 Female TerminalFemale Terminal
-
PGH710001427 Wire SealWire Seal
-
PGH710002278 HousingHousing
-
PGH710002279 LockLock
-
PGL710000918 Female TerminalFemale Terminal
-
PGL710001427 Wire SealWire Seal
-
PGL710002278 HousingHousing
-
PGL710002279 LockLock
-
PPS278002299 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
PPS710001119 Female TerminalFemale Terminal
-
RD1710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
RD1710000882 CapCap
-
RD1710001932 SealSeal
-
RD1710001934 TerminalTerminal
-
SB278001482 SealSeal
-
SB710001134 Female TerminalFemale Terminal
-
SB710002043 LockLock
-
SB710002177 HousingHousing
-
SPSW710002000 HousingHousing
-
SPSW710003047 TerminalTerminal
-
SS515177192 Female HousingFemale Housing
-
SS710000925 TerminalTerminal
-
SS710001163 Wire SealWire Seal
-
STSW409012100 Female TerminalFemale Terminal
-
STSW409012300 SealSeal
-
STSW409209200 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
SW1409010300 Female TerminalFemale Terminal
-
SW2409010300 Female TerminalFemale Terminal
-
SW3710000038 Female TerminalFemale Terminal
-
SW4278000992 Open BarrelOpen Barrel
-
SW4710002588 Heat Shrink TubingHeat Shrink Tubing
-
SWW710002003 Housing ConnectorHousing Connector
-
SWW710003047 TerminalTerminal
-
SWWRC278000223 Female TerminalFemale Terminal
-
SWWRC278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
SWWRC278000585 Wire Seal (20 Gauge) (Purple) (Packard)Wire Seal (20 Gauge) (Purple) (Packard)
