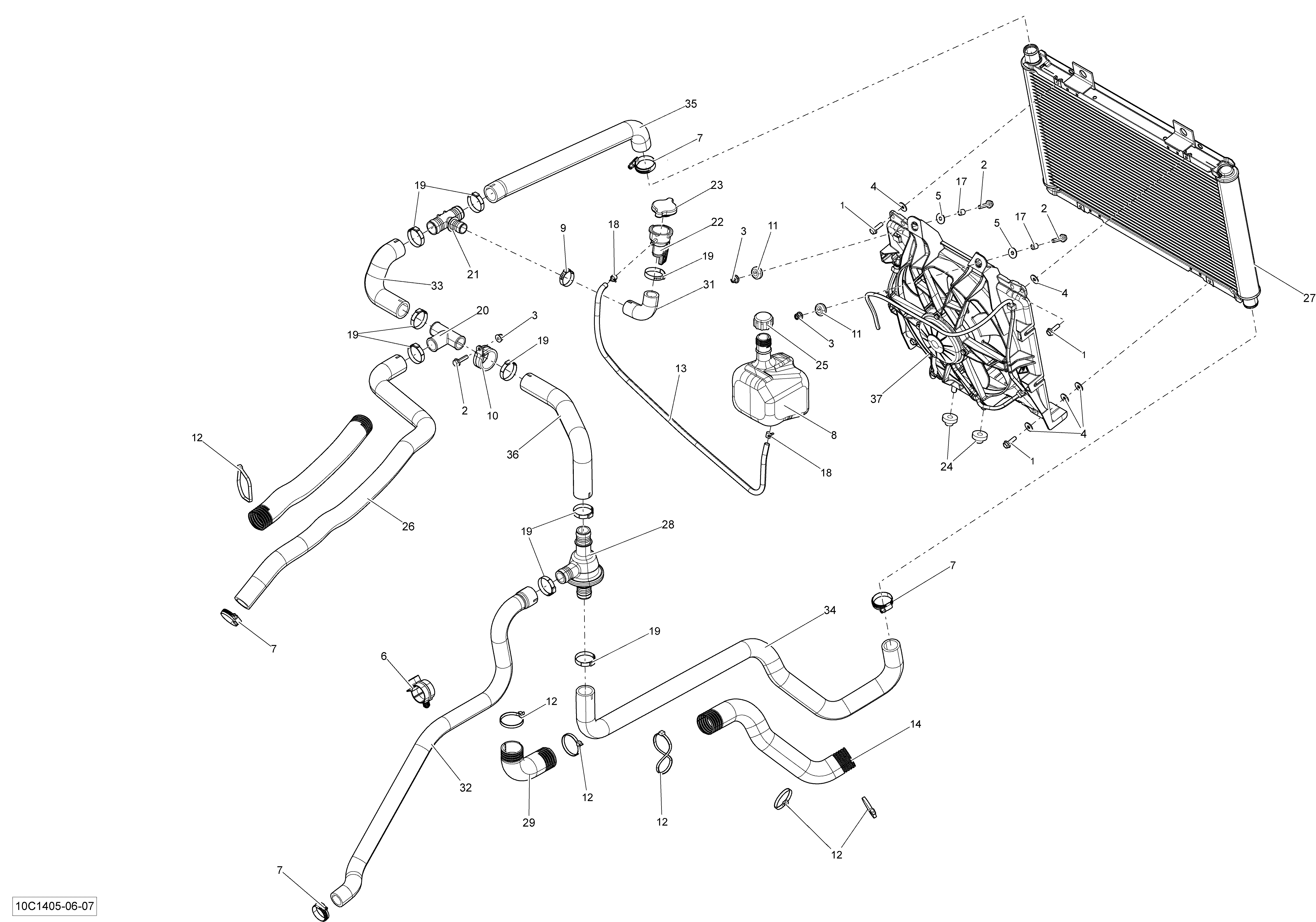

01- Cooling System для BRP Maverick 1000, STD, XRS, XRS-DPS - 2014
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207662534 Hex. Flanged ScrewHex. Flanged Screw
-
3233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
4234062410 Flat Washer 6 mmFlat Washer 6 mm
-
5250200082 Flat WasherFlat Washer
-
6275500590 RetainerRetainer
-
7293650098 Norma Gear ClampNorma Gear Clamp
-
8709200504 Coolant TankCoolant Tank
-
9293650099 Crimp ClampCrimp Clamp
-
10293650218 Hose RetainerHose Retainer
-
11293720053 GrommetGrommet
-
12293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
13415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
14515176260 Tubing 35mmTubing 35mm
-
17293900105 BushingBushing
-
18414554800 Spring ClampSpring Clamp
-
19509000162 Gear ClampGear Clamp
-
20509000219 T-FittingT-Fitting
-
21509000372 T-FittingT-Fitting
-
22709200179 Filler NeckFiller Neck
-
23709200207 Pressure CapPressure Cap
-
24709200285 GrommetGrommet
-
25709200328 Tank CapTank Cap
-
26709200382 Intermediate HoseIntermediate Hose
-
27709200395 RadiatorRadiator
-
28709200406 ThermostatThermostat
-
29515176260 Tubing 35mmTubing 35mm
-
31709200439 Filler Neck HoseFiller Neck Hose
-
32709200441 Pump HosePump Hose
-
33709200443 HoseHose
-
34709200444 Radiator Inlet HoseRadiator Inlet Hose
-
35709200445 Outlet HoseOutlet Hose
-
36709200447 HoseHose
-
37709200462 Fan Ass'yFan Ass'y
