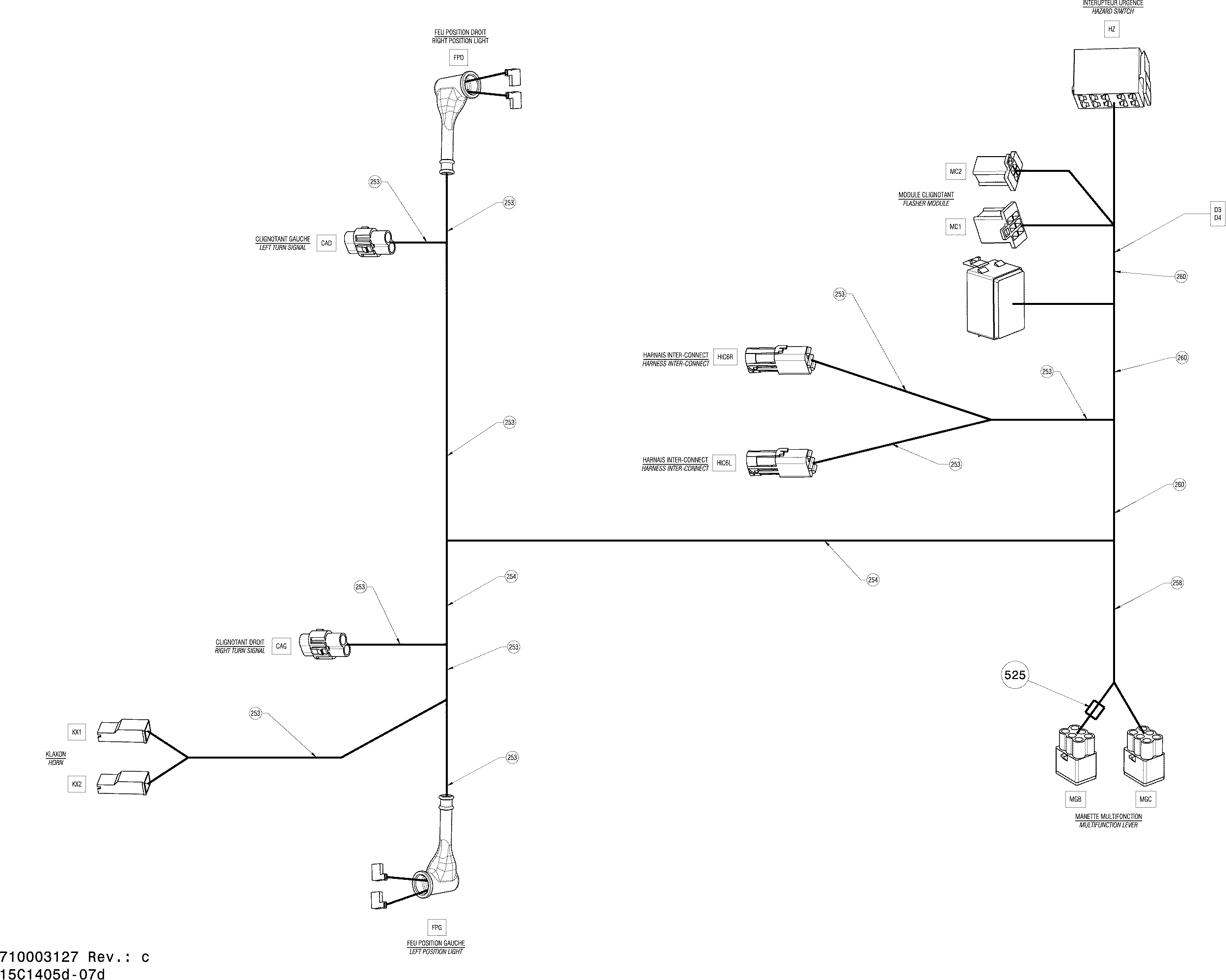

10- Electrical Harness Assy Europe_15C1405d для BRP Maverick 1000, STD, XRS, XRS-DPS - 2014
-
№АртикулНазвание
-
1710003127 Harness Ass'y. EuropeHarness Ass'y. Europe
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
258415079900 Tubing 10 mmTubing 10 mm
-
260515175319 Tubing 22 mmTubing 22 mm
-
525710000482 Shrink TubingShrink Tubing
-
CAD409012300 SealSeal
-
CAD409012100 Female TerminalFemale Terminal
-
CAG409012300 SealSeal
-
CAG409012100 Female TerminalFemale Terminal
-
D3409012700 DiodeDiode
-
D4409012700 DiodeDiode
-
FPD409010300 Female TerminalFemale Terminal
-
FPG409010300 Female TerminalFemale Terminal
-
HIC6L293650187 ClipClip
-
HIC6L278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
HIC6L278001065 Wire SealWire Seal
-
HIC6L278000222 Male TerminalMale Terminal
-
HIC6R293650187 ClipClip
-
HIC6R278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
HIC6R278001065 Wire SealWire Seal
-
HIC6R278000222 Male TerminalMale Terminal
-
HZ710002000 HousingHousing
-
HZ710001931 TerminalTerminal
-
KX1710000751 Shrink TubingShrink Tubing
-
KX1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
KX1409010100 Female TerminalFemale Terminal
-
KX2710000751 Shrink TubingShrink Tubing
-
KX2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
KX2409010100 Female TerminalFemale Terminal
-
MC1710002314 HousingHousing
-
MC1710002315 TerminalTerminal
-
MC2710002313 HousingHousing
-
MC2710002315 TerminalTerminal
-
MGB710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
MGB710000080 CapCap
-
MGB409012300 SealSeal
-
MGB409012100 Female TerminalFemale Terminal
-
MGC710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
MGC710000080 CapCap
-
MGC409012300 SealSeal
-
MGC409012100 Female TerminalFemale Terminal
