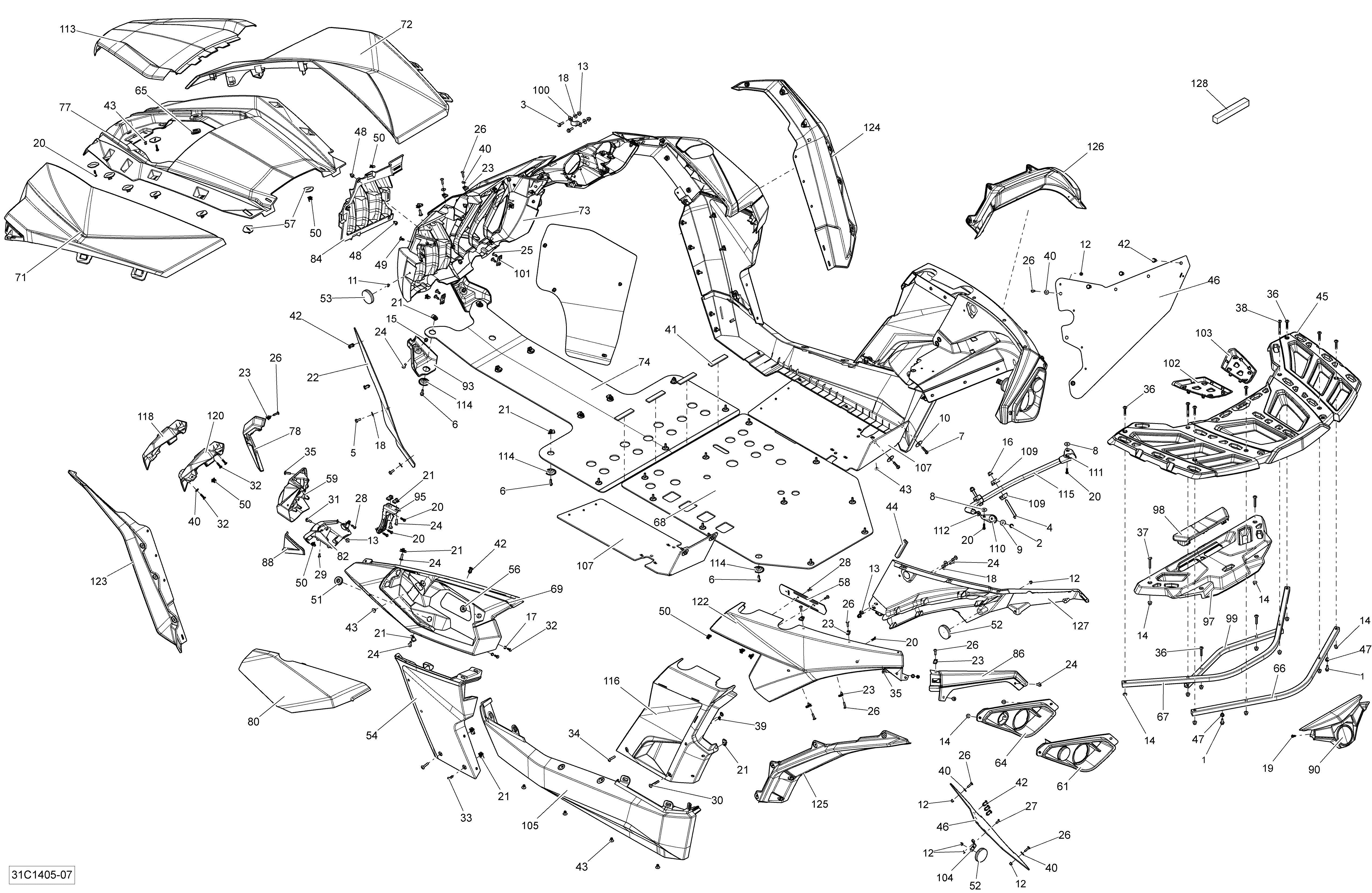

09- Body And Accessories для BRP Maverick 1000, STD, XRS, XRS-DPS - 2014
-
№АртикулНазвание
-
1207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
3207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
5210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
7210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
8224060201 Flat WasherFlat Washer
-
9224061201 Flat WasherFlat Washer
-
10224081301 Flat WasherFlat Washer
-
11233251414 Hex. Flanged Elastic Nut M5. Except Model-EuropeHex. Flanged Elastic Nut M5. Except Model-Europe
-
12233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
15233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17234051410 Flat Washer M5Flat Washer M5
-
18234062670 Flat WasherFlat Washer
-
19241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
20241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
21250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
22705007827 Inner FenderInner Fender
-
23250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
24250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
25250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
26250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
27250000145 Torx Screw M5 X 14. Model-EuropeTorx Screw M5 X 14. Model-Europe
-
28250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
29250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
30250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
31250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
32250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
33250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
34250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
35250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
36250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
37250000647 Torx Screw M6 X 45Torx Screw M6 X 45
-
38250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
39250100129 Push NutPush Nut
-
40250200025 Washer M5Washer M5
-
41291001932 PadPad
-
42293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
43293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
44293200093 Neoprene SealNeoprene Seal
-
45715002367 Rack KitRack Kit
-
46705007828 DeflectorDeflector
-
47293450274 InsertInsert
-
48293830005 Rubber BumperRubber Bumper
-
49414644300 DartDart
-
50517302785 ClipClip
-
51517303756 GrommetGrommet
-
52705002408 Red Reflector. Model-EuropeRed Reflector. Model-Europe
-
52705002408 Red Reflector. Except Model-EuropeRed Reflector. Except Model-Europe
-
53705002409 Amber Reflector. Except Model-EuropeAmber Reflector. Except Model-Europe
-
54705002887 Yellow LH Front Lateral Pannel. Model-STD YellowYellow LH Front Lateral Pannel. Model-STD Yellow
-
54705002888 Yellow RH Front Lateral Pannel. Model-STD YellowYellow RH Front Lateral Pannel. Model-STD Yellow
-
54705007358 White LH Front Lateral Pannel. Model-WhiteWhite LH Front Lateral Pannel. Model-White
-
54705007359 White RH Front Lateral Pannel. Model-WhiteWhite RH Front Lateral Pannel. Model-White
-
54705002887 Yellow LH Front Lateral Pannel. Model-XRS BlackYellow LH Front Lateral Pannel. Model-XRS Black
-
54705002888 Yellow RH Front Lateral Pannel. Model-XRS BlackYellow RH Front Lateral Pannel. Model-XRS Black
-
54705002887 Yellow LH Front Lateral Pannel. Model-XRS-DPS BlackYellow LH Front Lateral Pannel. Model-XRS-DPS Black
-
54705002888 Yellow RH Front Lateral Pannel. Model-XRS-DPS BlackYellow RH Front Lateral Pannel. Model-XRS-DPS Black
-
54705007360 Red LH Front Lateral Pannel. Model-RedRed LH Front Lateral Pannel. Model-Red
-
56705003264 GrommetGrommet
-
57705003841 Support PlateSupport Plate
-
58705004261 Support PlateSupport Plate
-
59705004508 LH Front FaciaLH Front Facia
-
59705004509 RH Front FaciaRH Front Facia
-
61705004731 LH Rear Facia. Except Model-EuropeLH Rear Facia. Except Model-Europe
-
61705004732 RH Rear Facia. Except Model-EuropeRH Rear Facia. Except Model-Europe
-
64705004927 LH Rear Facia. Model-EuropeLH Rear Facia. Model-Europe
-
64705004926 RH Rear Facia. Model-EuropeRH Rear Facia. Model-Europe
-
65705005156 Oval WasherOval Washer
-
66705005469 TubeTube
-
67705005470 TubeTube
-
68705005480 Rear Skid PlateRear Skid Plate
-
69705007978 White LH Front Fender. Model-STD WhiteWhite LH Front Fender. Model-STD White
-
69705007979 White RH Front Fender. Model-STD WhiteWhite RH Front Fender. Model-STD White
-
69705006558 Black LH Front Fender. Model-XRSBlack LH Front Fender. Model-XRS
-
69705006559 Black RH Front Fender. Model-XRSBlack RH Front Fender. Model-XRS
-
69705006558 Black LH Front Fender. Model-XRS-DPS Black or WhiteBlack LH Front Fender. Model-XRS-DPS Black or White
-
69705006559 Black RH Front Fender. Model-XRS-DPS Black or WhiteBlack RH Front Fender. Model-XRS-DPS Black or White
-
69705005779 Yellow LH Front Fender. Model-YellowYellow LH Front Fender. Model-Yellow
-
69705005780 Yellow RH Front Fender. Model-YellowYellow RH Front Fender. Model-Yellow
-
69705007336 Red LH Front Fender. Model-RedRed LH Front Fender. Model-Red
-
69705007337 Red RH Front Fender. Model-RedRed RH Front Fender. Model-Red
-
71705005781 Yellow LH Fixe Hood. Model-STD YellowYellow LH Fixe Hood. Model-STD Yellow
-
71705007348 White LH Fixe Hood. Model-WhiteWhite LH Fixe Hood. Model-White
-
71705005781 Yellow LH Fixe Hood. Model-XRS BlackYellow LH Fixe Hood. Model-XRS Black
-
71705005781 Yellow LH Fixe Hood. Model-XRS-DPS BlackYellow LH Fixe Hood. Model-XRS-DPS Black
-
71705007350 Red LH Fixe Hood. Model-RedRed LH Fixe Hood. Model-Red
-
72705005782 Yellow RH Fixe Hood. Model-STD YellowYellow RH Fixe Hood. Model-STD Yellow
-
72705007349 White RH Fixe Hood. Model-WhiteWhite RH Fixe Hood. Model-White
-
72705005782 Yellow RH Fixe Hood. Model-XRS BlackYellow RH Fixe Hood. Model-XRS Black
-
72705005782 Yellow RH Fixe Hood. Model-XRS-DPS BlackYellow RH Fixe Hood. Model-XRS-DPS Black
-
72705007351 Red RH Fixe Hood. Model-RedRed RH Fixe Hood. Model-Red
-
73705005784 Front Radiator GrillFront Radiator Grill
-
74705005798 Front Skid PlateFront Skid Plate
-
77705005821 Fixe Center HoodFixe Center Hood
-
78705005824 Yellow LH Bumper Cap. Model-BlackYellow LH Bumper Cap. Model-Black
-
78705005825 Yellow RH Bumper Cap. Model-BlackYellow RH Bumper Cap. Model-Black
-
78705007352 White LH Bumper Cap. Model-STD WhiteWhite LH Bumper Cap. Model-STD White
-
78705007353 White RH Bumper Cap. Model-STD WhiteWhite RH Bumper Cap. Model-STD White
-
78705007354 Red LH Bumper Cap. Model-XRS WhiteRed LH Bumper Cap. Model-XRS White
-
78705007355 Red RH Bumper Cap. Model-XRS WhiteRed RH Bumper Cap. Model-XRS White
-
78705007354 Red LH Bumper Cap. Model-XRS-DPS WhiteRed LH Bumper Cap. Model-XRS-DPS White
-
78705007355 Red RH Bumper Cap. Model-XRS-DPS WhiteRed RH Bumper Cap. Model-XRS-DPS White
-
78705005824 Yellow LH Bumper Cap. Model-YellowYellow LH Bumper Cap. Model-Yellow
-
78705005825 Yellow RH Bumper Cap. Model-YellowYellow RH Bumper Cap. Model-Yellow
-
80705007983 White LH Cover Front Fender. Model-STD WhiteWhite LH Cover Front Fender. Model-STD White
-
80705007984 White RH Cover Front Fender. Model-STD WhiteWhite RH Cover Front Fender. Model-STD White
-
80705006566 Black LH Cover Front Fender. Model-XRSBlack LH Cover Front Fender. Model-XRS
-
80705006567 Black RH Cover Front Fender. Model-XRSBlack RH Cover Front Fender. Model-XRS
-
80705006566 Black LH Cover Front Fender. Model-XRS-DPS Black or WhiteBlack LH Cover Front Fender. Model-XRS-DPS Black or White
-
80705006567 Black RH Cover Front Fender. Model-XRS-DPS Black or WhiteBlack RH Cover Front Fender. Model-XRS-DPS Black or White
-
80705005852 Yellow LH Cover Front Fender. Model-YellowYellow LH Cover Front Fender. Model-Yellow
-
80705005853 Yellow RH Cover Front Fender. Model-YellowYellow RH Cover Front Fender. Model-Yellow
-
80705007340 Red LH Cover Front Fender. Model-RedRed LH Cover Front Fender. Model-Red
-
80705007342 Red RH Cover Front Fender. Model-RedRed RH Cover Front Fender. Model-Red
-
82705007981 White LH Front Fender Trim. Model-STD WhiteWhite LH Front Fender Trim. Model-STD White
-
82705007982 White RH Front Fender Trim. Model-STD WhiteWhite RH Front Fender Trim. Model-STD White
-
82705006562 Black LH Front Fender Trim. Model-XRSBlack LH Front Fender Trim. Model-XRS
-
82705006563 Black RH Front Fender Trim. Model-XRSBlack RH Front Fender Trim. Model-XRS
-
82705006562 Black LH Front Fender Trim. Model-XRS-DPS Black or WhiteBlack LH Front Fender Trim. Model-XRS-DPS Black or White
-
82705006563 Black RH Front Fender Trim. Model-XRS-DPS Black or WhiteBlack RH Front Fender Trim. Model-XRS-DPS Black or White
-
82705005953 Yellow LH Front Fender Trim. Model-YellowYellow LH Front Fender Trim. Model-Yellow
-
82705005954 Yellow RH Front Fender Trim. Model-YellowYellow RH Front Fender Trim. Model-Yellow
-
82705007338 Red LH Front Fender Trim. Model-RedRed LH Front Fender Trim. Model-Red
-
82705007341 Red RH Front Fender Trim. Model-RedRed RH Front Fender Trim. Model-Red
-
84705005983 LH Rear Radiator GrillLH Rear Radiator Grill
-
84705005984 RH Rear Radiator GrillRH Rear Radiator Grill
-
86705006583 Black LH Rear Facia Trim. Model-BlackBlack LH Rear Facia Trim. Model-Black
-
86705006584 Black RH Rear Facia Trim. Model-BlackBlack RH Rear Facia Trim. Model-Black
-
86705007370 White LH Rear Facia Trim. Model-STD WhiteWhite LH Rear Facia Trim. Model-STD White
-
86705007371 White RH Rear Facia Trim. Model-STD WhiteWhite RH Rear Facia Trim. Model-STD White
-
86705006583 Black LH Rear Facia Trim. Model-XRS WhiteBlack LH Rear Facia Trim. Model-XRS White
-
86705006584 Black RH Rear Facia Trim. Model-XRS WhiteBlack RH Rear Facia Trim. Model-XRS White
-
86705006583 Black LH Rear Facia Trim. Model-XRS-DPS WhiteBlack LH Rear Facia Trim. Model-XRS-DPS White
-
86705006584 Black RH Rear Facia Trim. Model-XRS-DPS WhiteBlack RH Rear Facia Trim. Model-XRS-DPS White
-
86705005990 Yellow LH Rear Facia Trim. Model-YellowYellow LH Rear Facia Trim. Model-Yellow
-
86705005991 Yellow RH Rear Facia Trim. Model-YellowYellow RH Rear Facia Trim. Model-Yellow
-
86705007372 Red LH Rear Facia Trim. Model-RedRed LH Rear Facia Trim. Model-Red
-
86705007373 Red RH Rear Facia Trim. Model-RedRed RH Rear Facia Trim. Model-Red
-
88705005992 LH Front Facia TrimLH Front Facia Trim
-
88705005993 RH Front Facia TrimRH Front Facia Trim
-
90705005994 LOGO SupportLOGO Support
-
93705006038 LH Bumper Skid CapLH Bumper Skid Cap
-
93705006039 RH Bumper Skid CapRH Bumper Skid Cap
-
95705006078 LH Froont Facia SupportLH Froont Facia Support
-
95705006079 RH Froont Facia SupportRH Froont Facia Support
-
97705006128 Bagage Central RackBagage Central Rack
-
98705006132 Central Bagage Rack CapCentral Bagage Rack Cap
-
99705006279 Bagage Rack TubeBagage Rack Tube
-
100705006623 ClampClamp
-
101705006635 Radiator Grill BracketRadiator Grill Bracket
-
102705006713 LH Bagage Rack CoverLH Bagage Rack Cover
-
103705006714 RH Bagage Rack CoverRH Bagage Rack Cover
-
104705006828 Reflector Support. Model-EuropeReflector Support. Model-Europe
-
105705006991 LH Lateral Middle PanelLH Lateral Middle Panel
-
105705006992 RH Lateral Middle PanelRH Lateral Middle Panel
-
107705007038 Lateral Skid PlateLateral Skid Plate
-
109705007044 Rear Support Facia ClipRear Support Facia Clip
-
110705007045 LH Rear Facia SupportLH Rear Facia Support
-
111705007046 RH Rear Facia SupportRH Rear Facia Support
-
112705007047 Tube ConnectorTube Connector
-
113705007060 Black Removable HoodBlack Removable Hood
-
114705007171 CupCup
-
115705007299 Body TubeBody Tube
-
116705006000 Yellow LH Rear Lateral Panel. Model-STD YellowYellow LH Rear Lateral Panel. Model-STD Yellow
-
116705006001 RH Rear Lateral Panel. Model-STD YellowRH Rear Lateral Panel. Model-STD Yellow
-
116705007362 White LH Rear Lateral Panel. Model-WhiteWhite LH Rear Lateral Panel. Model-White
-
116705007363 White RH Rear Lateral Panel. Model-WhiteWhite RH Rear Lateral Panel. Model-White
-
116705006000 Yellow LH Rear Lateral Panel. Model-XRS BlackYellow LH Rear Lateral Panel. Model-XRS Black
-
116705006001 RH Rear Lateral Panel. Model-XRS BlackRH Rear Lateral Panel. Model-XRS Black
-
116705006000 Yellow LH Rear Lateral Panel. Model-XRS-DPS BlackYellow LH Rear Lateral Panel. Model-XRS-DPS Black
-
116705006001 RH Rear Lateral Panel. Model-XRS-DPS BlackRH Rear Lateral Panel. Model-XRS-DPS Black
-
116705007364 Red LH Rear Lateral Panel. Model-RedRed LH Rear Lateral Panel. Model-Red
-
116705007365 Red RH Rear Lateral Panel. Model-RedRed RH Rear Lateral Panel. Model-Red
-
118705007497 LH Bumper Grill. Except Model-EuropeLH Bumper Grill. Except Model-Europe
-
118705007498 RH Bumper Grill. Except Model-EuropeRH Bumper Grill. Except Model-Europe
-
120705007499 LH Bumper Grill. Model-EuropeLH Bumper Grill. Model-Europe
-
120705007500 RH Bumper Grill. Model-EuropeRH Bumper Grill. Model-Europe
-
122705006579 Black LH Rear Fender. Model-BlackBlack LH Rear Fender. Model-Black
-
122705006580 Black RH Rear Fender. Model-BlackBlack RH Rear Fender. Model-Black
-
122705007366 White LH Rear Fender. Model-STD WhiteWhite LH Rear Fender. Model-STD White
-
122705007367 White RH Rear Fender. Model-STD WhiteWhite RH Rear Fender. Model-STD White
-
122705006579 Black LH Rear Fender. Model-XRS WhiteBlack LH Rear Fender. Model-XRS White
-
122705006580 Black RH Rear Fender. Model-XRS WhiteBlack RH Rear Fender. Model-XRS White
-
122705006579 Black LH Rear Fender. Model-XRS-DPS WhiteBlack LH Rear Fender. Model-XRS-DPS White
-
122705006580 Black RH Rear Fender. Model-XRS-DPS WhiteBlack RH Rear Fender. Model-XRS-DPS White
-
122705005801 Yellow LH Rear Fender. Model-YellowYellow LH Rear Fender. Model-Yellow
-
122705005802 Yellow RH Rear Fender. Model-YellowYellow RH Rear Fender. Model-Yellow
-
122705007368 Red LH Rear Fender. Model-RedRed LH Rear Fender. Model-Red
-
122705007369 Red RH Rear Fender. Model-RedRed RH Rear Fender. Model-Red
-
123705008988 LH Front Deflector. Model-RedLH Front Deflector. Model-Red
-
124705008989 RH Front Deflector. Model-RedRH Front Deflector. Model-Red
-
125705007637 LH Rear Deflector. Model-RedLH Rear Deflector. Model-Red
-
126705007638 RH Rear Deflector. Model-RedRH Rear Deflector. Model-Red
-
127705007910 LH Rear Inner FenderLH Rear Inner Fender
-
127705007911 RH Rear Inner FenderRH Rear Inner Fender
-
128293250318 Seal TraySeal Tray
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System
- 01- Crankcase
- 01- Crankshaft, Piston And Cylinder
- 01- Cylinder Head, Front
- 01- Cylinder Head, Rear
- 01- Engine
- 01- Engine Cooling
- 01- Engine Lubrication
- 01- Exhaust System
- 02- Air Intake
- 02- Air Intake Manifold And Throttle Body
- 02- Fuel System
- 03- Magneto And Electric Starter
- 05- Gear Box 1
- 05- Gear Box 2
- 05- Transmission Maverick
- 06- Brakes
- 07- Drive System, Front
- 07- Drive System, Front (Differential)
- 07- Front Suspension
- 07- Steering
- 08- Drive Shaft
- 08- Drive System, Rear
- 08- Rear Suspension
- • 09- Body And Accessories
- 09- Cab Interior
- 09- Cab Interior Reflective Sheets
- 09- Decals
- 09- Frame
- 09- Mirrors And Tools
- 09- Seat
- 10- Electrical Harness Assy Europe_15C1405d
- 10- Electrical Harness Main_15C1405a
- 10- Electrical Harness Plate Europe_15C1405e
- 10- Electrical Harness Rear Europe_15C1405c
- 10- Electrical Harness Rear_15C1405b
- 10- Electrical System
- 10- Engine Harness And Electronic Module Maverick
