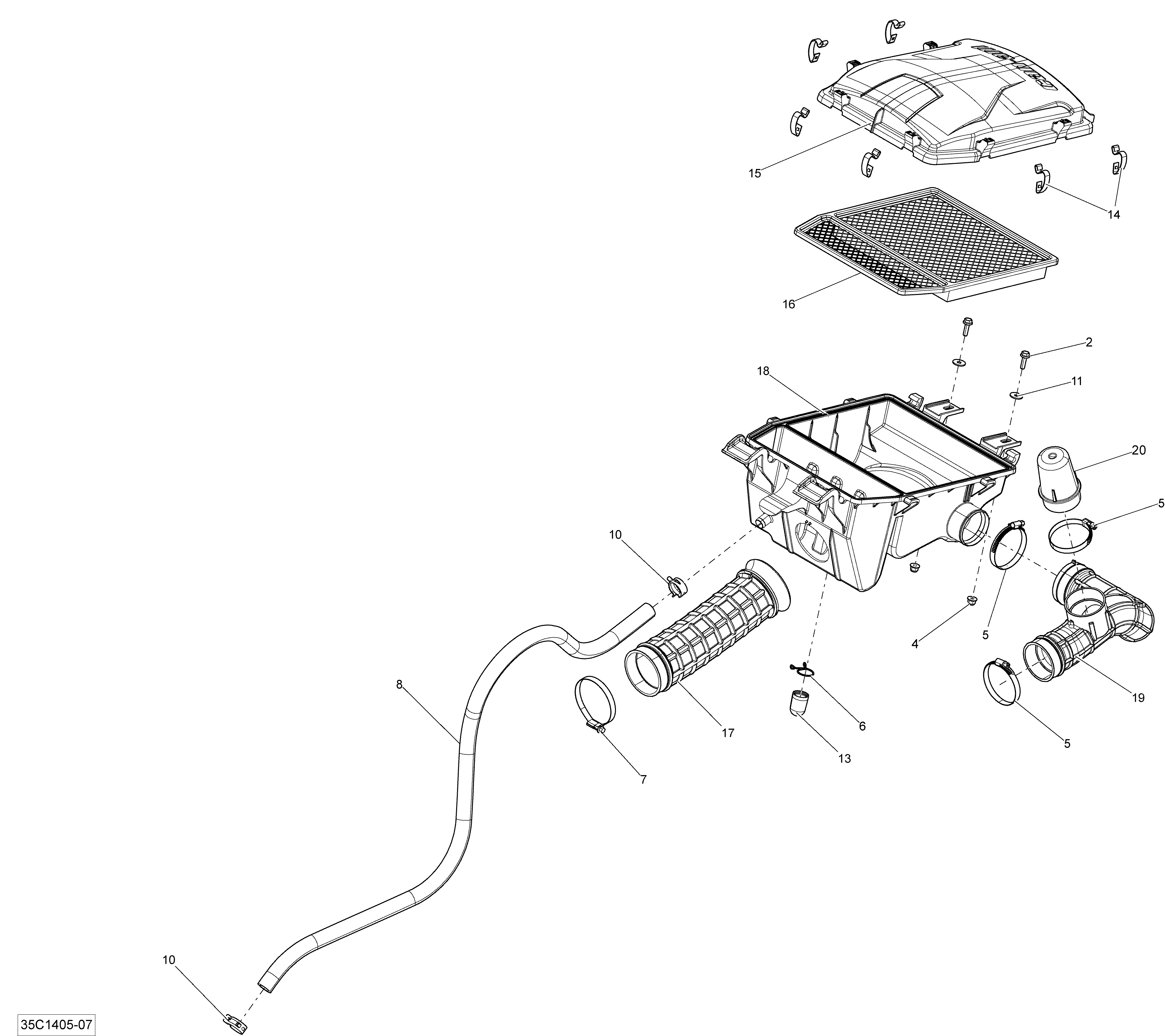

02- Air Intake для BRP Maverick 1000, STD, XRS, XRS-DPS - 2014
-
№АртикулНазвание
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5293650079 Norma ClampNorma Clamp
-
6707800278 Retainer ClipRetainer Clip
-
7293650091 Norma ClampNorma Clamp
-
8707800411 Hose 15.88 mmHose 15.88 mm
-
10293650213 Norma Spring ClampNorma Spring Clamp
-
11250200082 Flat WasherFlat Washer
-
13707800080 Drain TubeDrain Tube
-
14707800249 Cover BracketCover Bracket
-
15707800326 Air Intake Silencer CoverAir Intake Silencer Cover
-
16707800327 Air FilterAir Filter
-
17707800329 Intake AdaptorIntake Adaptor
-
18707800517 Air Intake Silencer BaseAir Intake Silencer Base
-
19707800532 Intake AdaptorIntake Adaptor
-
20707800533 Intake Adaptor TankIntake Adaptor Tank
