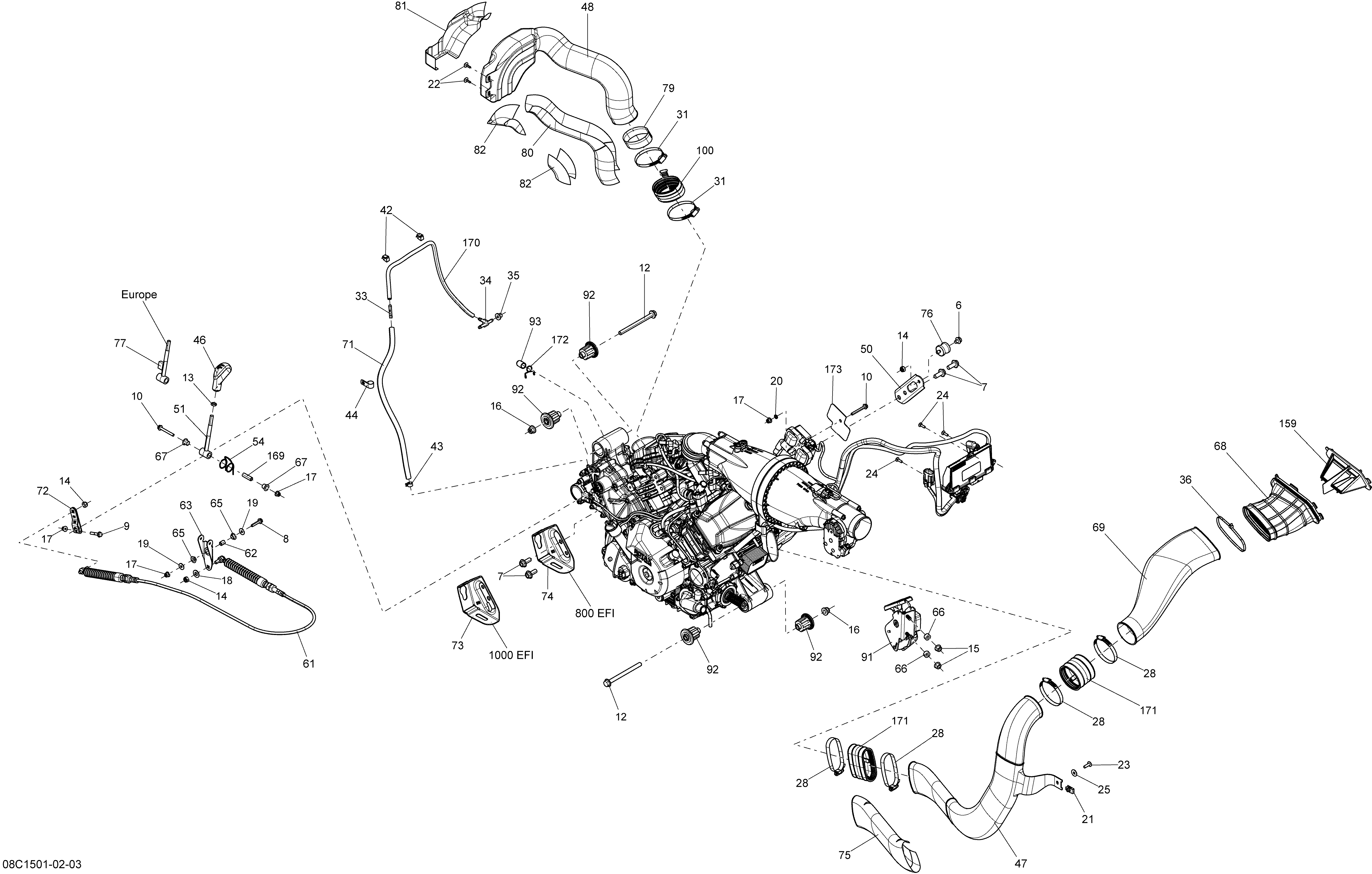

01- Engine _08C1501 для BRP Commander 800_STD_DPS_XT - 2015
-
№АртикулНазвание
-
6207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
7207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
8207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
9207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
10207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
12230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
13232180491 Hex. Jam Nut M8Hex. Jam Nut M8
-
14232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
15233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
16233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18234001410 Flat Washer 10 mmFlat Washer 10 mm
-
19234062410 Flat Washer 6 mmFlat Washer 6 mm
-
20234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
21250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
22250000725 Screw M4 X 16Screw M4 X 16
-
23250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
24250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
25250200082 Flat WasherFlat Washer
-
28293650091 Norma ClampNorma Clamp
-
31293650118 Norma Gear ClampNorma Gear Clamp
-
33293710039 Straight FittingStraight Fitting
-
34293710059 Y-FittingY-Fitting
-
35293720029 GrommetGrommet
-
36293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
42414227300 ClipClip
-
43414415200 Spring ClampSpring Clamp
-
44518321570 Open ClampOpen Clamp
-
46707000284 Lever HandleLever Handle
-
47707000639 Air InletAir Inlet
-
48707000640 CVT Air OutletCVT Air Outlet
-
50707000707 Upper Engine BracketUpper Engine Bracket
-
51707000711 Upper Lever Arm. Except Model-EuropeUpper Lever Arm. Except Model-Europe
-
54707000750 Lever Arm SpringLever Arm Spring
-
61707000775 Shifting CableShifting Cable
-
62707000801 BushingBushing
-
63707000828 Lower Lever ArmLower Lever Arm
-
65707000847 Flanged BushingFlanged Bushing
-
66707000848 BushingBushing
-
67707000869 Flanged BushingFlanged Bushing
-
68707000908 AdaptorAdaptor
-
69707000909 Primary Air IntakePrimary Air Intake
-
71415079800 Hose 1/4''Hose 1/4''
-
72707000911 LeverLever
-
74707000921 Cable SupportCable Support
-
75707000924 Reflective SheetReflective Sheet
-
76707000949 Rubber IsolatorRubber Isolator
-
77707000978 Upper Lever Arm. Model-EuropeUpper Lever Arm. Model-Europe
-
79707000988 ReflectorReflector
-
80707000989 Reflective SheetReflective Sheet
-
81707000990 Reflective SheetReflective Sheet
-
82707000991 ReflectorReflector
-
91707001166 Accelerator PedalAccelerator Pedal
-
92707001169 DamperDamper
-
93707001185 PlugPlug
-
100707001274 AdaptorAdaptor
-
159707001344 CVT FilterCVT Filter
-
169707001376 BushingBushing
-
170415080200 Hose, PolyurethaneHose, Polyurethane
-
171707001467 Flexible AdaptorFlexible Adaptor
-
172707800506 Retainer ClipRetainer Clip
-
173710000073 Insulator PadInsulator Pad
