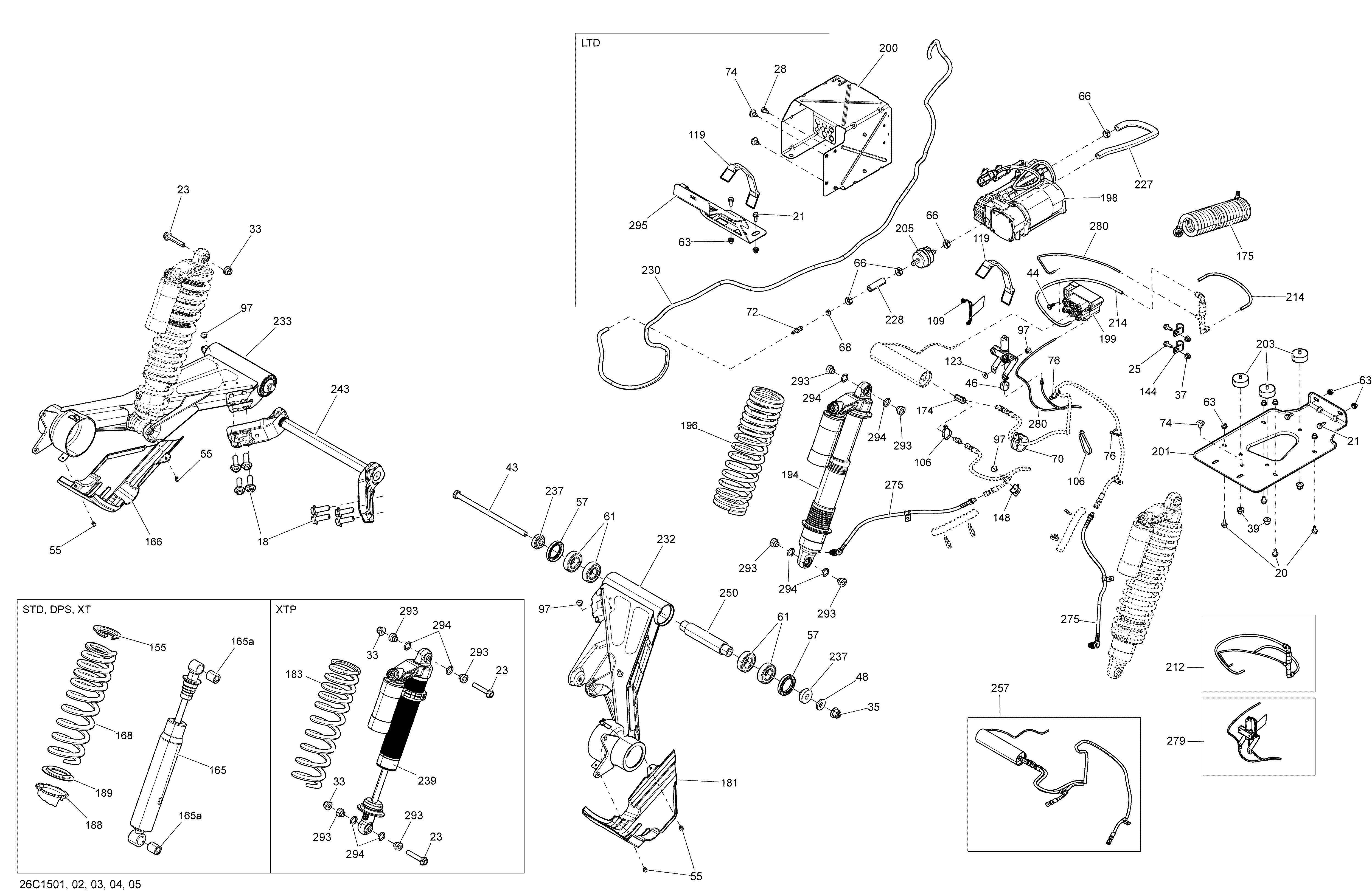

08- Rear Suspension _26C1501 для BRP Commander 800_STD_DPS_XT - 2015
-
№АртикулНазвание
-
18207523544 Hex. Flanged Screw M12 X 35, Scotch GripHex. Flanged Screw M12 X 35, Scotch Grip
-
23233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
33207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
35233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
43250000515 Hex. Cap Screw M12 X 241Hex. Cap Screw M12 X 241
-
48250200120 Flat Washer M12Flat Washer M12
-
55293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
57293200094 SealSeal
-
61293350055 Ball BearingBall Bearing
-
97390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
155706000567 Spring StopperSpring Stopper
-
165706000615 Rear ShockRear Shock
-
165a715900122 BushingBushing
-
166706000630 LH Joint ProtectorLH Joint Protector
-
168706001045 Black Rear Spring. Package-XT CamoBlack Rear Spring. Package-XT Camo
-
168706001043 Red Rear Spring. Package-DPS Light GreyRed Rear Spring. Package-DPS Light Grey
-
168706001043 Red Rear Spring. Package-XT WhiteRed Rear Spring. Package-XT White
-
168706001043 Red Rear Spring. Package-STDRed Rear Spring. Package-STD
-
168706000667 Yellow Rear Spring. Package-DPS YellowYellow Rear Spring. Package-DPS Yellow
-
168706000667 Yellow Rear Spring. Package-XT YellowYellow Rear Spring. Package-XT Yellow
-
181706000814 RH Joint ProtectorRH Joint Protector
-
183706001807 Orange Rear Spring. Package-XTPOrange Rear Spring. Package-XTP
-
188706000910 Adjustable RingAdjustable Ring
-
189706000911 Protector RingProtector Ring
-
232706001318 RH Swing ArmRH Swing Arm
-
233706001319 LH Swing ArmLH Swing Arm
-
237706001350 SpacerSpacer
-
239706001360 Rear Shock Ass'y. Package-XTPRear Shock Ass'y. Package-XTP
-
243706001500 Sway Bar Ass'ySway Bar Ass'y
-
250706001529 BushingBushing
-
293715900210 Interior Bushing. Package-XTPInterior Bushing. Package-XTP
-
294715900209 O-Ring Bushing. Package-XTPO-Ring Bushing. Package-XTP
