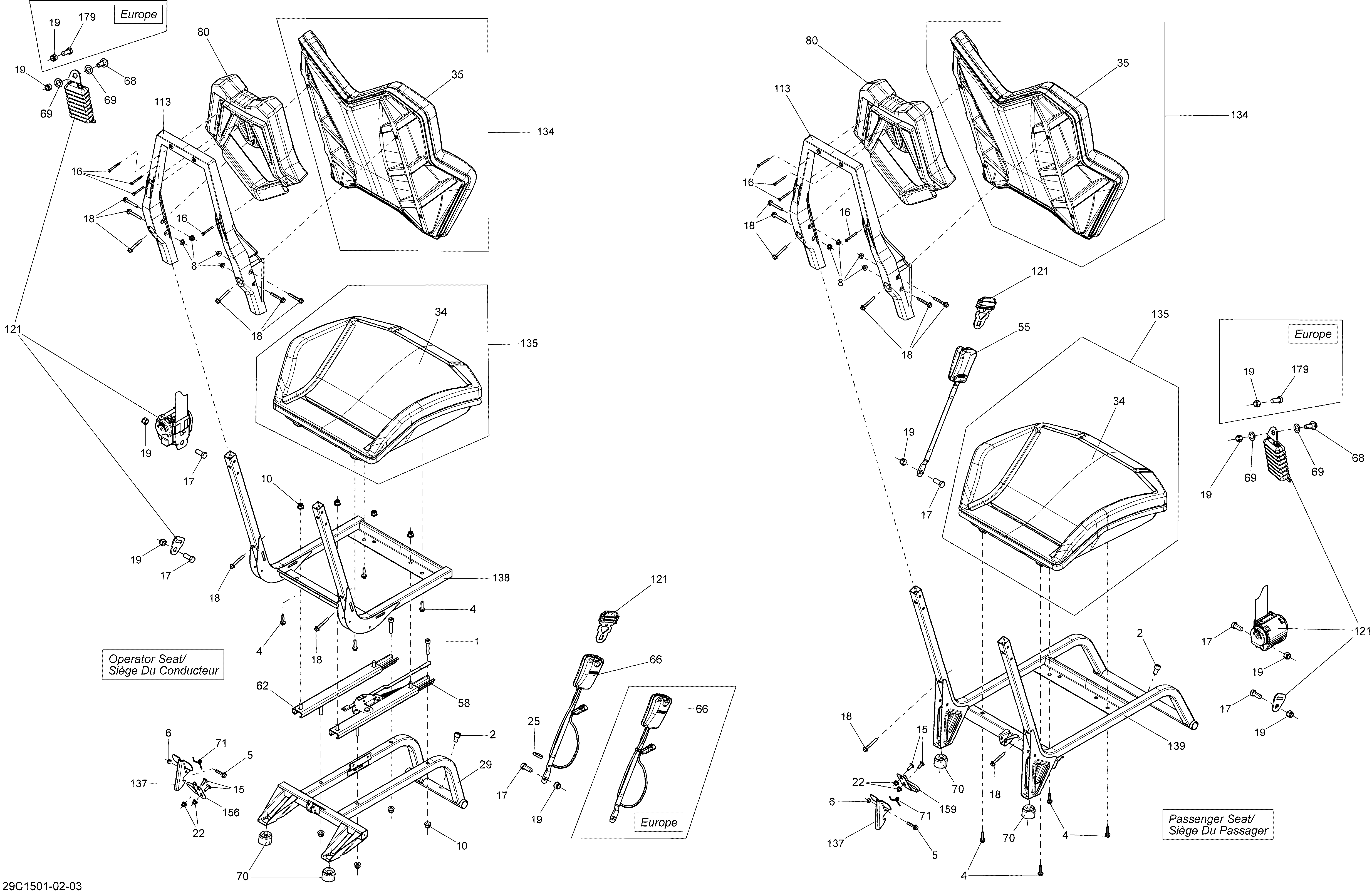

09- Seat _29C1501 для BRP Commander 800_STD_DPS_XT - 2015
-
№АртикулНазвание
-
1205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
2205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
4207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
5207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
6232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
8233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
16250000490 Hex. Washer Head Screw PT K50 X 40Hex. Washer Head Screw PT K50 X 40
-
17250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
18250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
19250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
22293450274 InsertInsert
-
25293750008 Tie-Rap 350 mm. Model-North America, InternationalTie-Rap 350 mm. Model-North America, International
-
29708000667 Seat MemberSeat Member
-
34708001103 Seat CoverSeat Cover
-
35708000675 Backrest CoverBackrest Cover
-
55708000844 Passenger Buckle Side. Model-North America, InternationalPassenger Buckle Side. Model-North America, International
-
55708000857 Passenger Buckle Side. Model-EuropePassenger Buckle Side. Model-Europe
-
58708001739 RH Rail. Model-North America, InternationalRH Rail. Model-North America, International
-
62708000848 LH RailLH Rail
-
66708000856 Driver Buckle Side. Model-EuropeDriver Buckle Side. Model-Europe
-
66708000987 Driver Buckle Side. Model-North America, InternationalDriver Buckle Side. Model-North America, International
-
68708000890 Safety Belt ScrewSafety Belt Screw
-
69708000891 Position WasherPosition Washer
-
70708001671 Rubber BumperRubber Bumper
-
71708000921 SpringSpring
-
80708001074 Head RestHead Rest
-
113708001245 Seat SupportSeat Support
-
121708001130 Safety Belt. Model-EuropeSafety Belt. Model-Europe
-
121708001302 Safety Belt. Model-North America, InternationalSafety Belt. Model-North America, International
-
134708001316 Backrest Ass'yBackrest Ass'y
-
135708001318 Cushion Ass'yCushion Ass'y
-
137708001355 Seat LatchSeat Latch
-
138708001356 Operator Seat FrameOperator Seat Frame
-
139708001357 Passenger Seat FramePassenger Seat Frame
-
156708001477 LH Retaining RodLH Retaining Rod
-
159708001482 RH Retaining RodRH Retaining Rod
-
179250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
