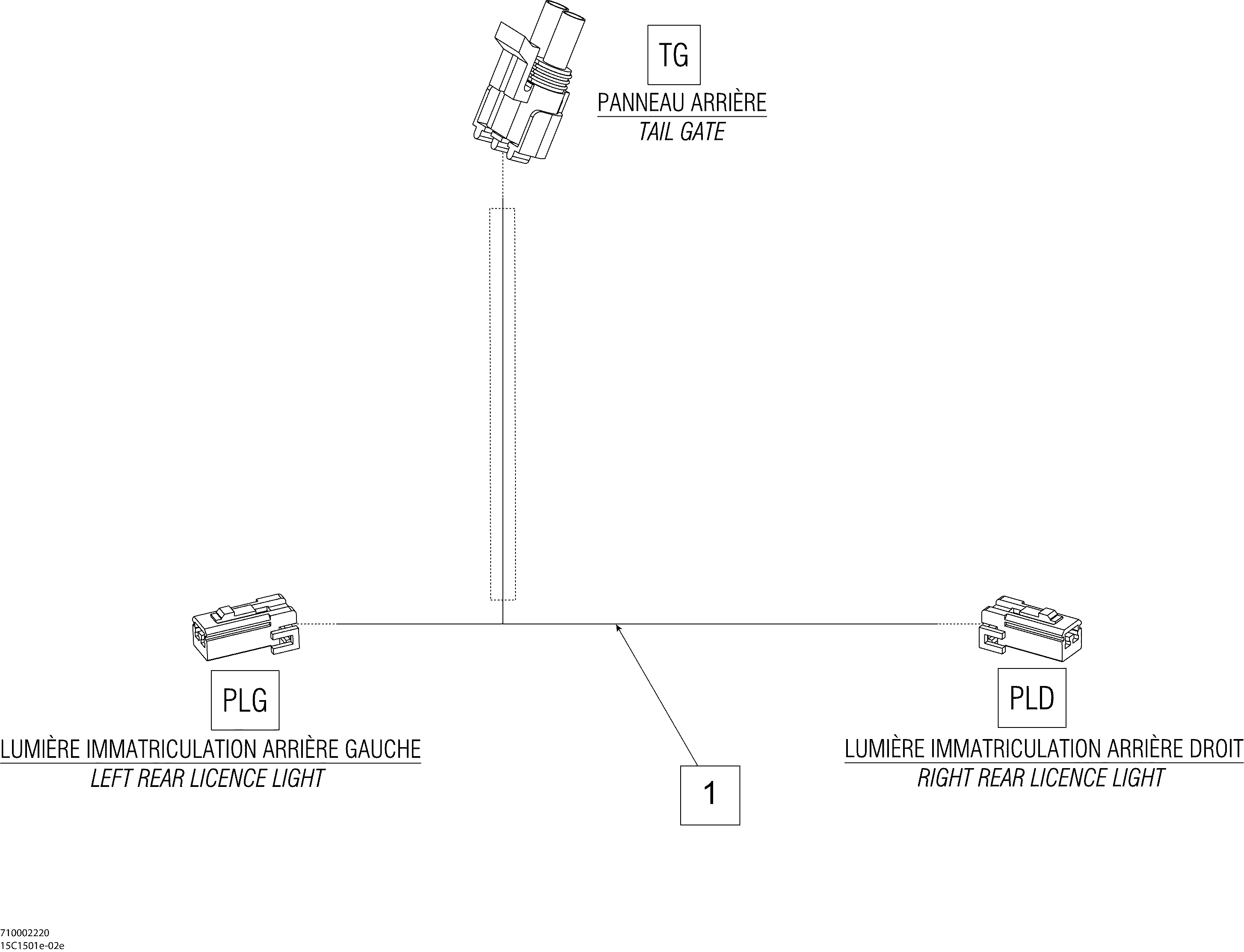

10- Electrical Harness Tail Gate, EUROPE_15C1501e для BRP Commander 800_STD_DPS_XT - 2015
-
№АртикулНазвание
-
1710002220 Tail Gate Harness Ass'y. Model- EuropeTail Gate Harness Ass'y. Model- Europe
-
PLD515175231 Female Terminal. Model- EuropeFemale Terminal. Model- Europe
-
PLD515175658 Female Housing, 2 Circuits. Model- EuropeFemale Housing, 2 Circuits. Model- Europe
-
PLG515175231 Female Terminal. Model- EuropeFemale Terminal. Model- Europe
-
PLG515175658 Female Housing, 2 Circuits. Model- EuropeFemale Housing, 2 Circuits. Model- Europe
-
TG278000223 Female Terminal. Model- EuropeFemale Terminal. Model- Europe
-
TG278000220 Male Connector, 2 Circuits. Model- EuropeMale Connector, 2 Circuits. Model- Europe
-
TG278001065 Wire Seal. Model- EuropeWire Seal. Model- Europe
