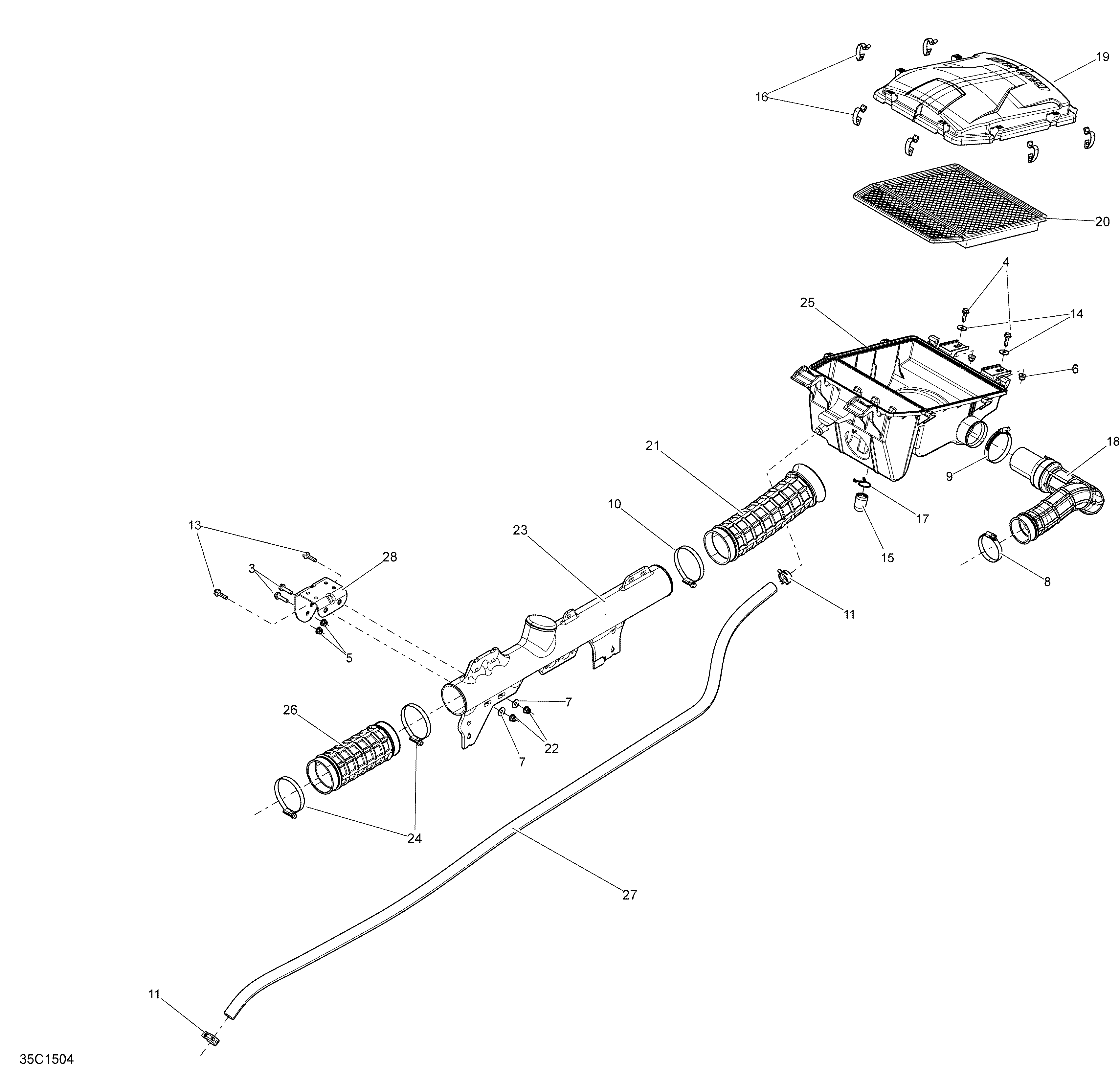

02- Air Intake _35C1504 для BRP Commander MAX 1000_DPS_XT - 2015
-
№АртикулНазвание
-
3207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7234062410 Flat Washer 6 mmFlat Washer 6 mm
-
8293650078 Norma ClampNorma Clamp
-
9293650079 Norma ClampNorma Clamp
-
10293650091 Norma ClampNorma Clamp
-
11293650213 Norma Spring ClampNorma Spring Clamp
-
13207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
14250200082 Flat WasherFlat Washer
-
15707800080 Drain TubeDrain Tube
-
16707800249 Cover BracketCover Bracket
-
17707800278 Retainer ClipRetainer Clip
-
18707800322 Intake AdaptorIntake Adaptor
-
19707800326 Air Intake Silencer CoverAir Intake Silencer Cover
-
20707800327 Air FilterAir Filter
-
21707800329 Intake AdaptorIntake Adaptor
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23707800515 Intake AdaptorIntake Adaptor
-
24293650091 Norma ClampNorma Clamp
-
25707800517 Air Intake Silencer BaseAir Intake Silencer Base
-
26707800541 Intake AdaptorIntake Adaptor
-
27707800411 Hose 15.88 mmHose 15.88 mm
-
28707800560 Rear SupportRear Support
