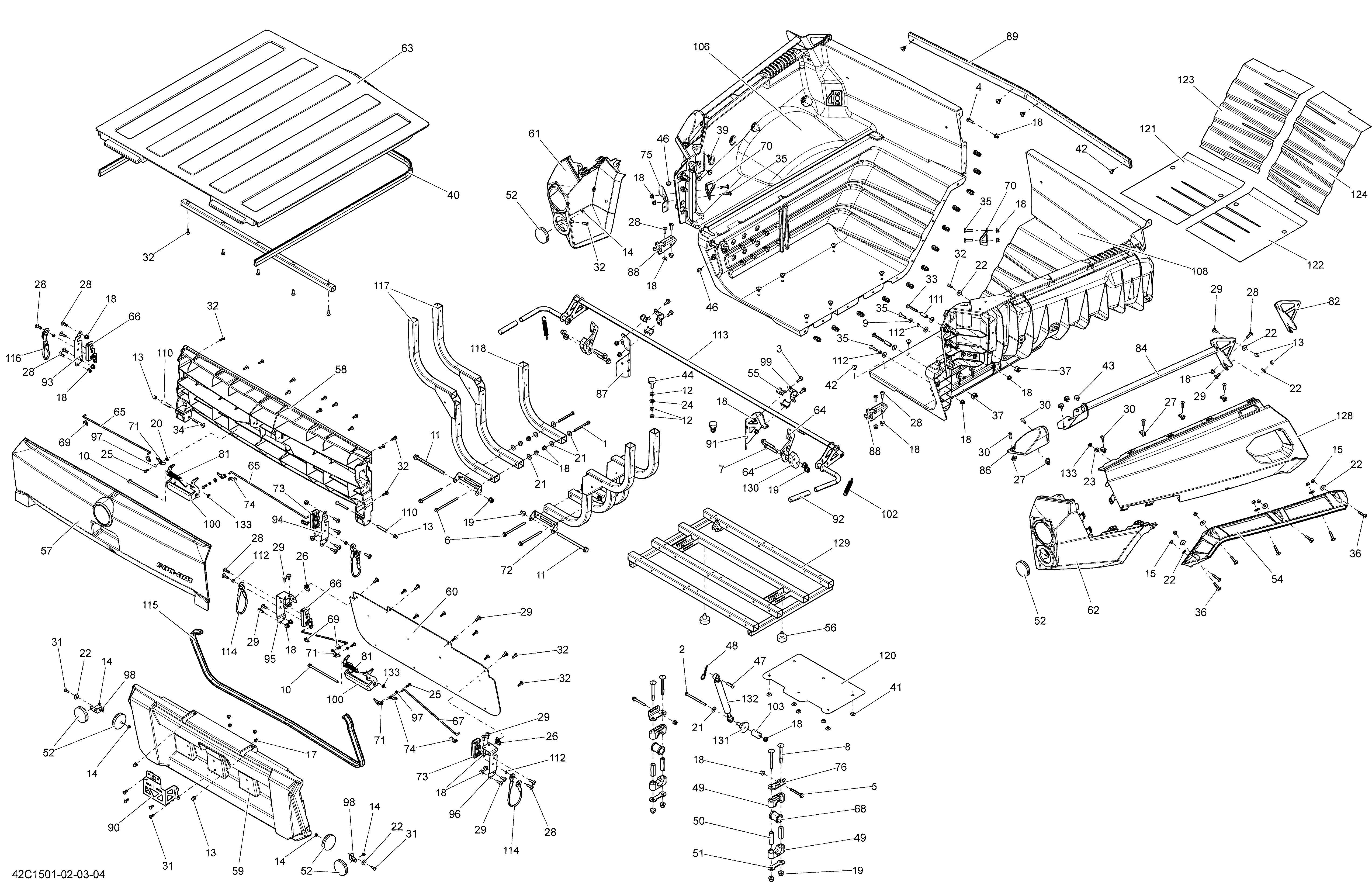

09- Rear Cargo Box _42C1504 для BRP Commander MAX 1000_DPS_XT - 2015
-
№АртикулНазвание
-
1207066544 Hex. Screw M6 X 65Hex. Screw M6 X 65
-
2207069044 Hex. Screw M6 X 90Hex. Screw M6 X 90
-
3207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
6207669584 Hex. Flanged Screw M6 X 95Hex. Flanged Screw M6 X 95
-
7207684586 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
8207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
9224061121 Flat WasherFlat Washer
-
10230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
11230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
12232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
13232361493 Domed Nut M6Domed Nut M6
-
14232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
15232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
17233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20234061410 Flat Washer 6 mmFlat Washer 6 mm
-
21234062410 Flat Washer 6 mmFlat Washer 6 mm
-
22234062670 Flat WasherFlat Washer
-
23234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
24234181401 Lock Washer 8 mmLock Washer 8 mm
-
25241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
26250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
27250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
28250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
29250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
30250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
31250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
32250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
33250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
34250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
35250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
36250000371 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
37269500725 Nut Housing Ass'yNut Housing Ass'y
-
39293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
40293250240 Neoprene SealNeoprene Seal
-
41293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
42293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
43293150190 Pop Rivet 3/16Pop Rivet 3/16
-
44293720091 Frame Rubber BumperFrame Rubber Bumper
-
46293830005 Rubber BumperRubber Bumper
-
47414079100 PinPin
-
48414575600 Hair PinHair Pin
-
49506150400 Housing HalfHousing Half
-
50506150500 Housing BushingHousing Bushing
-
51506150600 Stopper PlateStopper Plate
-
52705002408 Red ReflectorRed Reflector
-
54705008671 LH Upper Rear MudguardsLH Upper Rear Mudguards
-
54705008673 RH Upper Rear MudguardsRH Upper Rear Mudguards
-
55705500033 Half RingHalf Ring
-
56708000884 Rubber StopperRubber Stopper
-
57708300442 Camo Outside Top PannelCamo Outside Top Pannel
-
57708301256 Yellow Outside Top PannelYellow Outside Top Pannel
-
57708301583 Brush Aluminum Outside Top PannelBrush Aluminum Outside Top Pannel
-
58708300053 Inside Top PannelInside Top Pannel
-
59715001255 Lower Panel Ass'yLower Panel Ass'y
-
60708300073 Inside Bottom PannelInside Bottom Pannel
-
61708301383 LH Rear FaciaLH Rear Facia
-
62708301384 RH Rear FaciaRH Rear Facia
-
63708300131 Separator Pannel Ass'ySeparator Pannel Ass'y
-
64708300136 Box RetainerBox Retainer
-
65708300160 Top RodTop Rod
-
66708300162 LH LatchLH Latch
-
67708300164 Lower Bottom RodLower Bottom Rod
-
68708300172 Pivot BushingPivot Bushing
-
69708300182 LH Tie Rod ClipLH Tie Rod Clip
-
70708300183 Retaining PlateRetaining Plate
-
71708300184 ActivatorActivator
-
72708300185 Bracket PivotBracket Pivot
-
73708300201 RH LatchRH Latch
-
74708300202 RH Tie Rod ClipRH Tie Rod Clip
-
75708300206 Retaining Plate SupportRetaining Plate Support
-
76708300210 Adjustable Stopper PlateAdjustable Stopper Plate
-
81708300219 SpringSpring
-
82708300333 LH Painted Rail CapLH Painted Rail Cap
-
82708300334 RH Painted Rail CapRH Painted Rail Cap
-
84708300231 LH Welded RailLH Welded Rail
-
84708300232 RH Welded RailRH Welded Rail
-
86708301380 LH Rail CoverLH Rail Cover
-
86708301381 RH Rail CoverRH Rail Cover
-
87708300278 LH Latch Lever SupportLH Latch Lever Support
-
88708300345 Upper Pivot SupportUpper Pivot Support
-
89708301633 Front SupportFront Support
-
90708300349 Plate SupportPlate Support
-
91708300351 RH Latch Lever SupportRH Latch Lever Support
-
92708300358 Cap Latch LeverCap Latch Lever
-
93708300359 LH Upper SupportLH Upper Support
-
94708300360 RH Upper SupportRH Upper Support
-
95708300361 LH Lower SupportLH Lower Support
-
96708300362 RH Lower SupportRH Lower Support
-
97708300365 BushingBushing
-
98708300367 Reflector SupportReflector Support
-
99708300392 Clamp ReatinerClamp Reatiner
-
100708300398 HandleHandle
-
102708300454 SpringSpring
-
103708300470 SpacerSpacer
-
106715002361 LH Box KitLH Box Kit
-
108715002357 RH Box KitRH Box Kit
-
110708300735 BushingBushing
-
111708300736 SpacerSpacer
-
112708300737 BushingBushing
-
113708300751 Cargo Handle Ass'yCargo Handle Ass'y
-
114708300762 Lower Retainer CableLower Retainer Cable
-
115293250240 Neoprene SealNeoprene Seal
-
116708300763 Upper Retainer CableUpper Retainer Cable
-
117708300879 Black Welded Lateral SupportBlack Welded Lateral Support
-
118708300877 Black Lateral SupportBlack Lateral Support
-
120708300780 Heat DeflectorHeat Deflector
-
121708300809 Heat Deflector SheetHeat Deflector Sheet
-
122708300810 Heat Deflector SheetHeat Deflector Sheet
-
123708300811 Heat Deflector SheetHeat Deflector Sheet
-
124708300812 Heat Deflector SheetHeat Deflector Sheet
-
128708300834 Camo LH Rear FenderCamo LH Rear Fender
-
128708301242 Yellow LH Rear FenderYellow LH Rear Fender
-
128708301312 Brush Aluminum LH Rear FenderBrush Aluminum LH Rear Fender
-
128708300835 Camo RH Rear FenderCamo RH Rear Fender
-
128708301243 Yellow RH Rear FenderYellow RH Rear Fender
-
128708301313 Brush Aluminum RH Rear FenderBrush Aluminum RH Rear Fender
-
129708300875 Black Box SupportBlack Box Support
-
130708300902 SpacerSpacer
-
131708301059 SpacerSpacer
-
132708301136 Gaz ShockGaz Shock
-
133732610072 Push NutPush Nut
