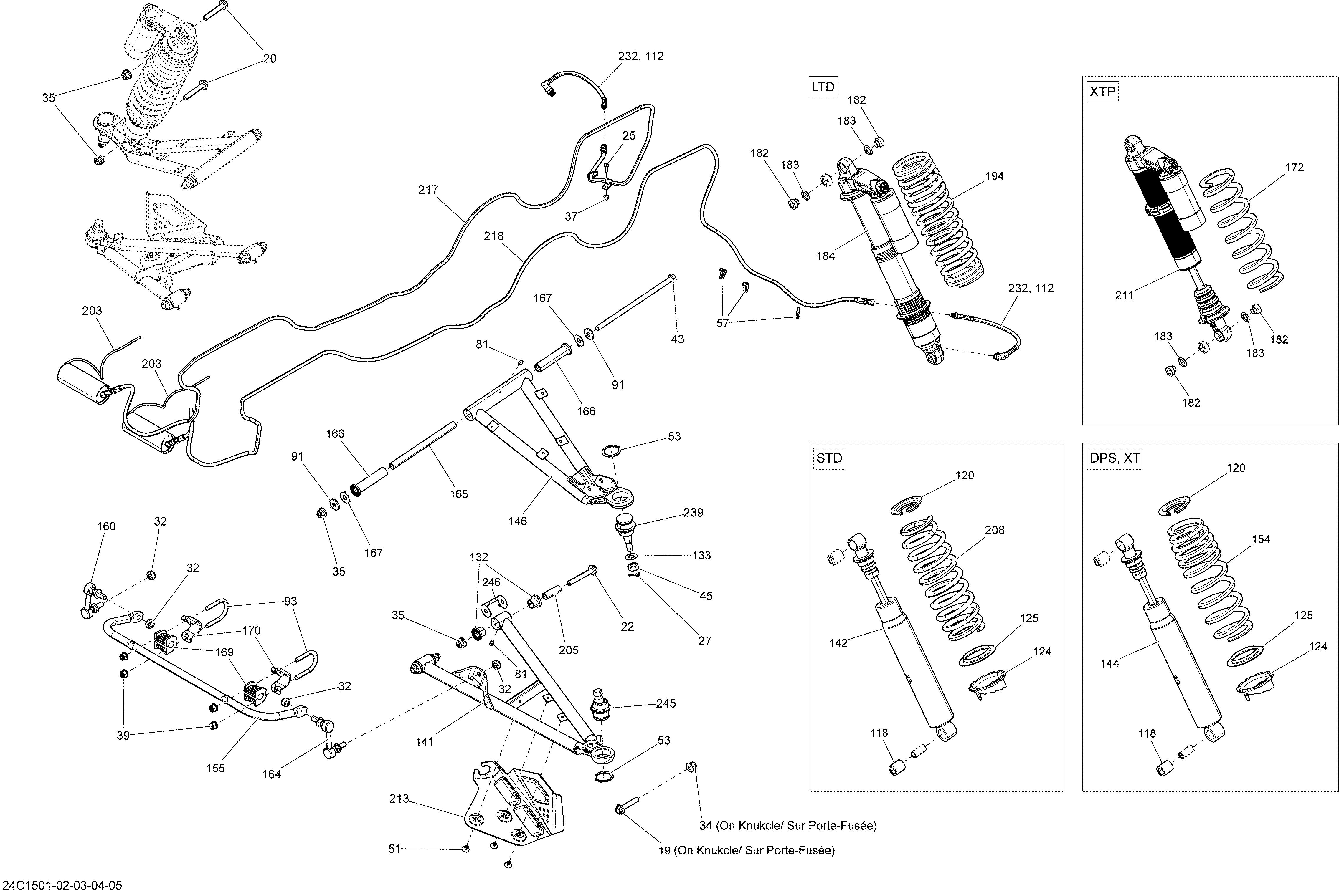

07- Front Suspension _24C1504 для BRP Commander MAX 1000_DPS_XT - 2015
-
№АртикулНазвание
-
19207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
22207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
27211400017 Cotter PinCotter Pin
-
34233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
35233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
43250000510 Hex. Cap Screw M10 X 225Hex. Cap Screw M10 X 225
-
45250100099 Nut M12Nut M12
-
51293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
53293370035 CirclipCirclip
-
81408200700 Grease FittingGrease Fitting
-
91503190439 WasherWasher
-
118715900122 BushingBushing
-
120706000567 Spring StopperSpring Stopper
-
124706000910 Adjustable RingAdjustable Ring
-
125706000911 Protector RingProtector Ring
-
132703500875 Bushing Kit. Includes 205, 246Bushing Kit. Includes 205, 246
-
133250200086 Flat WasherFlat Washer
-
141706200742 LH Lower Suspension ArmLH Lower Suspension Arm
-
141706200744 RH Lower Suspension ArmRH Lower Suspension Arm
-
144706201758 Front ShockFront Shock
-
146706200796 Suspension Upper ArmSuspension Upper Arm
-
154706202039 Red Can-Am Front Spring. Package-XT Brushed AluminiumRed Can-Am Front Spring. Package-XT Brushed Aluminium
-
154706202188 Yellow Front Spring. Package-XT YellowYellow Front Spring. Package-XT Yellow
-
154706202188 Yellow Front Spring. Package-DPSYellow Front Spring. Package-DPS
-
154706202189 Black Front Spring. Package-XT CamoBlack Front Spring. Package-XT Camo
-
165706201061 Inner BushingInner Bushing
-
166706201062 CushionCushion
-
167706201063 Wear PlateWear Plate
-
205703500875 Bushing Kit. Includes 132, 246Bushing Kit. Includes 132, 246
-
213706201669 LH ProtectorLH Protector
-
213706201670 RH ProtectorRH Protector
-
239706202044 Ball JointBall Joint
-
245706202045 Ball JointBall Joint
-
246703500875 Bushing Kit. Includes 132, 205Bushing Kit. Includes 132, 205
