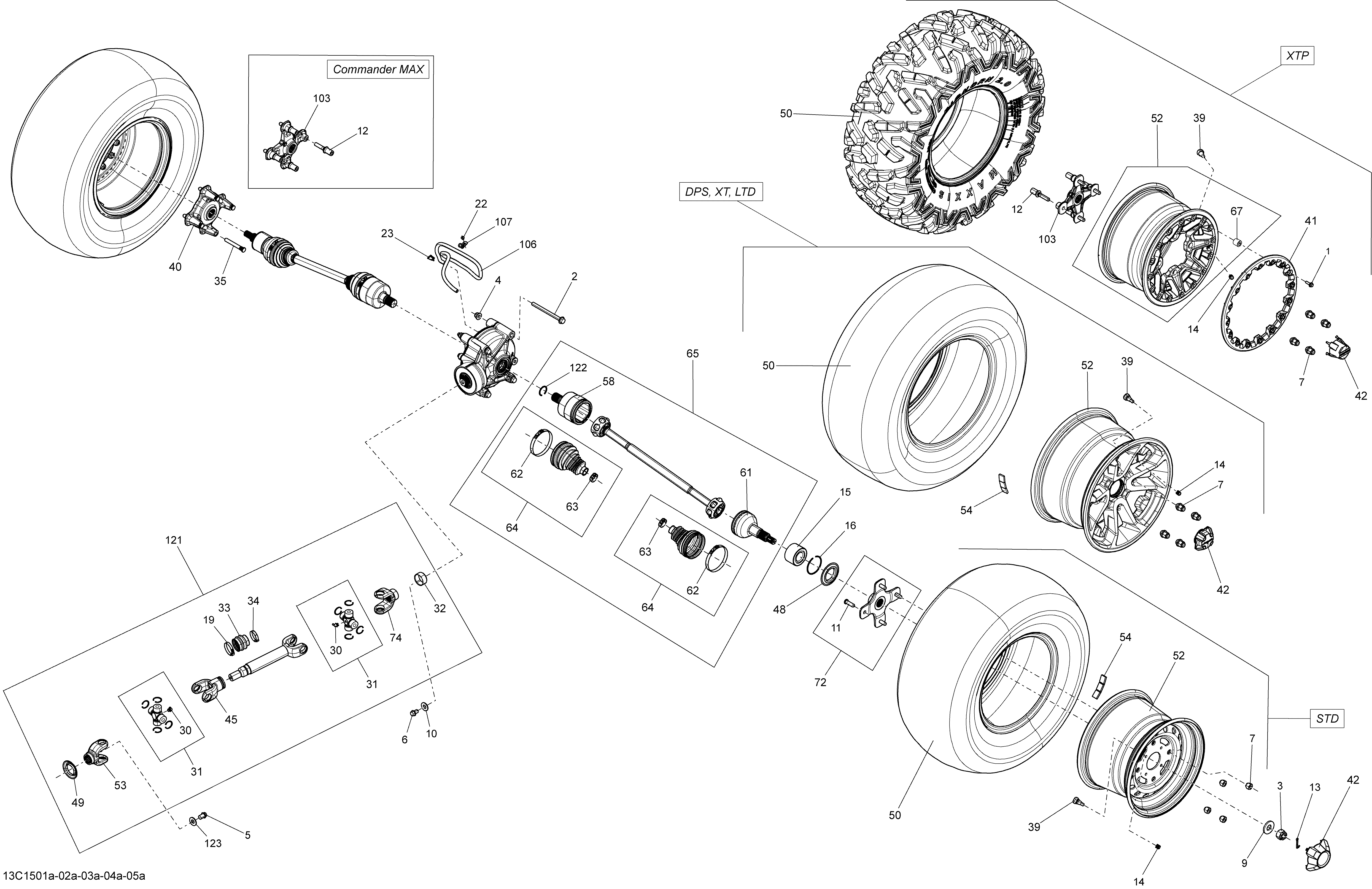

08- Drive System, Rear _13C1504a для BRP Commander MAX 1000_DPS_XT - 2015
-
№АртикулНазвание
-
2230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
3232291413 Hex. Flanged Castellated Nut M18Hex. Flanged Castellated Nut M18
-
4233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
5250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
6250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
7250100082 Chrome Wheel Nut M10 X 1.25. Package-DPSChrome Wheel Nut M10 X 1.25. Package-DPS
-
7250100082 Chrome Wheel Nut M10 X 1.25. Package-XT YellowChrome Wheel Nut M10 X 1.25. Package-XT Yellow
-
7250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
9250200049 Spring WasherSpring Washer
-
10250200014 Flat Washer M10Flat Washer M10
-
12250300051 Wheel StudWheel Stud
-
13250400036 Cotter PinCotter Pin
-
14293000110 Valve CapValve Cap
-
15293350040 Cone BearingCone Bearing
-
16293370019 CirclipCirclip
-
19293650138 Oetiker Gear ClampOetiker Gear Clamp
-
22390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
23414227300 ClipClip
-
30715900295 Grease FittingGrease Fitting
-
31703500846 Universal Joint Ass'yUniversal Joint Ass'y
-
32705400036 Wear RingWear Ring
-
33715900118 Rubber BootRubber Boot
-
34509000045 Oetiker Gear ClampOetiker Gear Clamp
-
39705400193 Rim Valve With CapRim Valve With Cap
-
42705401541 Wheel CapWheel Cap
-
45715900106 Spline YokeSpline Yoke
-
48705501121 Wear SleeveWear Sleeve
-
49705501123 ProtectorProtector
-
50705502019 Rear TireRear Tire
-
52705502125 Silver Rear Rim. Package-DPS North AmericaSilver Rear Rim. Package-DPS North America
-
52705502125 Silver Rear Rim. Package-DPS InternationalSilver Rear Rim. Package-DPS International
-
52705502125 Silver Rear Rim. Package-XT YellowSilver Rear Rim. Package-XT Yellow
-
52705502103 Black Rear Rim. Package-XT CamoBlack Rear Rim. Package-XT Camo
-
52705502103 Black Rear Rim. Package-XT Brush AluminumBlack Rear Rim. Package-XT Brush Aluminum
-
53715900272 JointJoint
-
54705501385 1/2 OZ Weight1/2 OZ Weight
-
58705501780 Plunging JointPlunging Joint
-
61705501776 CV JointCV Joint
-
62715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
63715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
64705501864 Boot KitBoot Kit
-
65705501481 Half ShaftHalf Shaft
-
74715900271 JointJoint
-
103705501900 Wheel HubWheel Hub
-
106415080200 Hose, PolyurethaneHose, Polyurethane
-
107705600459 ClampClamp
-
121703500854 Axle KitAxle Kit
-
122705501781 CirclipCirclip
-
123250200102 Flat Washer M12Flat Washer M12
